Wohnmobile 130Wp 260Wp 390Wp 520Wp 12V Basispaket Solaranlage mit 130Wp Semi-Flexibles Solarmodul

ECO-WORTHY 130Wp, 260Wp, 390Wp und 520Wp Off-Grid Solaranlage können für verschiedene Zwecke verwendet werden. die sowohl als Solarmodul für das Wohnmobil, als auch speziell für den Marineeinsatz auf Segelyachten, Motoryachten und anderen Boots-Typen bestens geeignet ist. Unabhängig davon, wofür das Kit verwendet wird, können Sie sicher sein, dass Sie ein Qualitätssystem erwerben.
Das ECO-WORTHY 130Wp ist eine semi-flexible Hochleistungs-Solarzelle. Die besonders lichtdurchlässige strukturierte ETFE Beschichtung der Solarmodule sorgt für eine sehr hohe Kratzfestigkeit und Witterungsbeständigkeit und damit für eine lange Lebensdauer, auch unter schwierigen Bedingungen. Besonders im Marine-Bereich zeichnet ETFE sich gegenüber anderen Kunststoffen wegen seiner hohen Salzwasserbeständigkeit aus. 25 Jahren Leistungsgarantie.
Der 30A und 60A PWM-Laderegler ist geeignet für geschlossene Bleiakkus, Gel-Akkus, Säureakkus und Lithiumakkus, Hohe betriebssicherheit.

Lieferumfang
130Wp (1-Panel) 12V Solaranlage
1x 130 Watt Flexibles Monokristallin Solarmodul
1x 30A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
1x 1,5m Fachkabelchselrichter

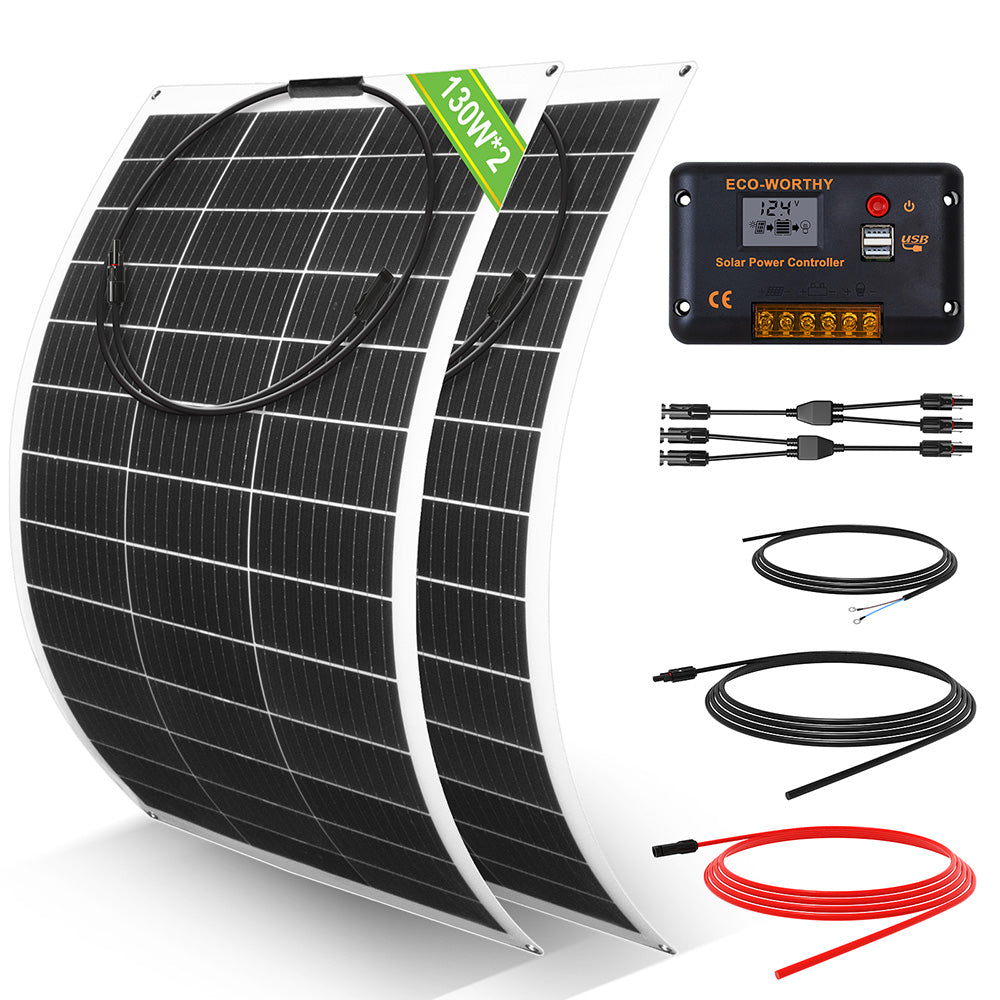

260Wp (2-Panel) 12V Solaranlage
2x 130 Watt Flexibles Monokristallin Solarmodul
1x 30A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
1x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter

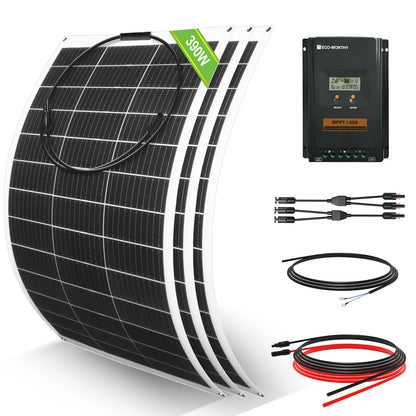

390Wp (3-Panel) 12V Solaranlage
3x 130 Watt Flexibles Monokristallin Solarmodul
1x 40A MPPT Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
2x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter

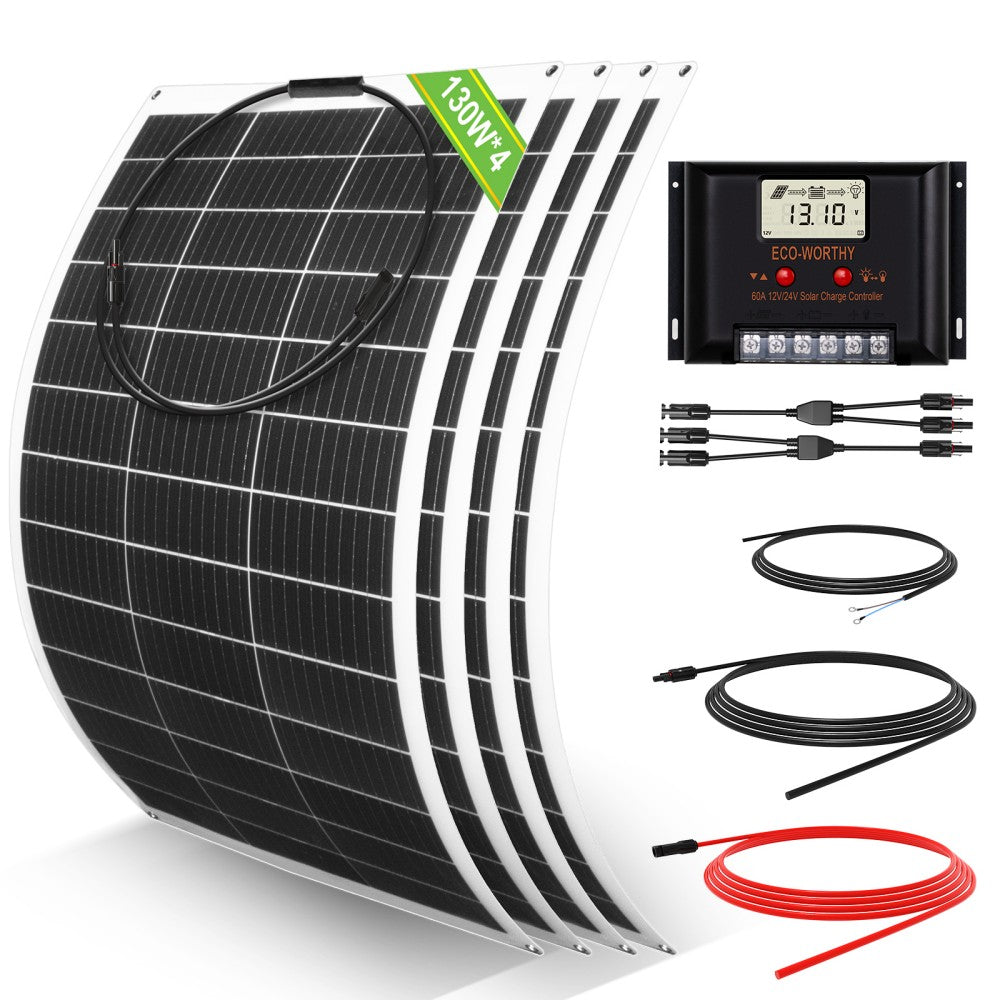

520Wp (4-Panel) 12V Solaranlage
4x 130 Watt Flexibles Monokristallin Solarmodul
1x 60A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
3x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter

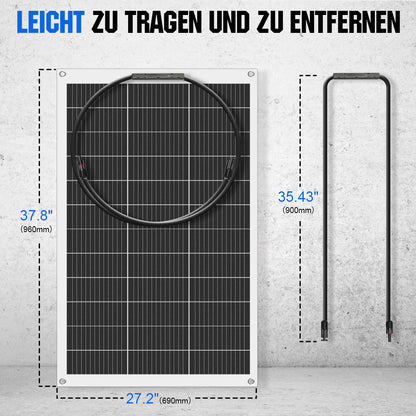

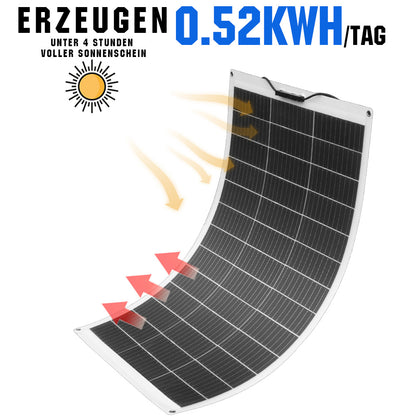

130Wp Semi-Flexibles Solarmodul Monokristallin

Nennleistung: 130Wp	Solarzelle: Monokristallin
Maximale/Spitzenspannung (Vmp): 21,10V	Leerlaufspannung (Voc): 24,50V
Kurzschlussstrom: 6,50A	Maximalstrom: 6,16A
Ausgangstoleranz: ±3%	Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃
Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃	Temperaturbereich: －40℃～ +85℃
Länge des Verlängerungskabels: 90cm	Größe des Verlängerungskabels: 4 mm² (11 AWG)/MC4-Anschluss
Größe: 960 x 690 x 2,5 mm	Gewicht: 2,0 kg

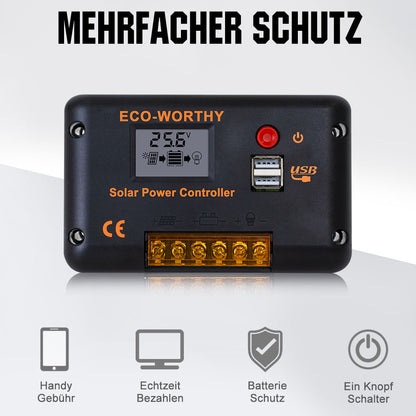

30A PWM Solarladeregler

Batteriespannung: 12V/24V	Lademodus: PWM
Maximaler Ladestrom: 30A	Entladestrom: 30A
Max. PV-Leerlaufspannung: <50V	USB-Ausgang: 5V/2A
Arbeitstemperatur: -20℃~60℃	Gewicht: 150 g
Größe: 138 x 82 x 30 mm

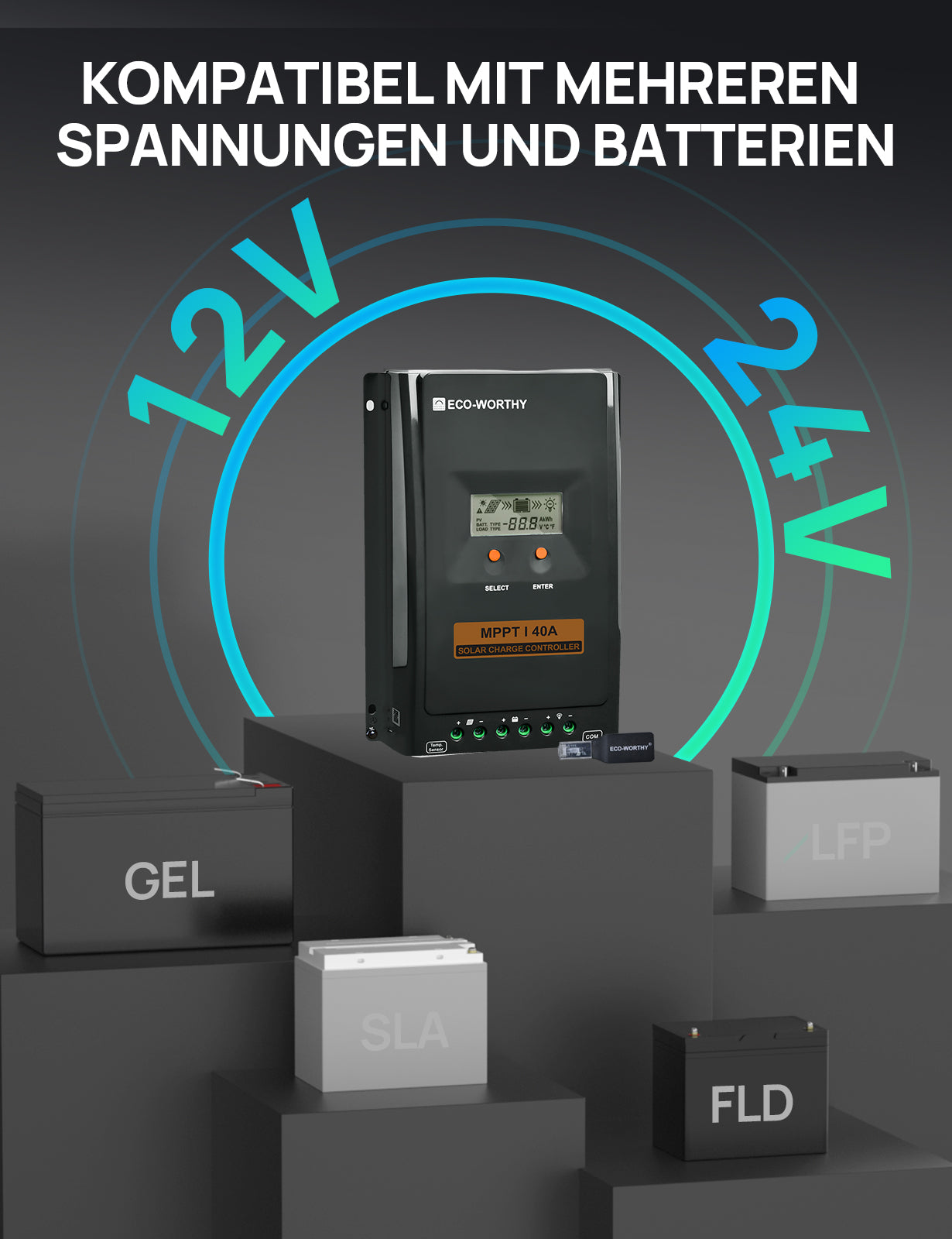

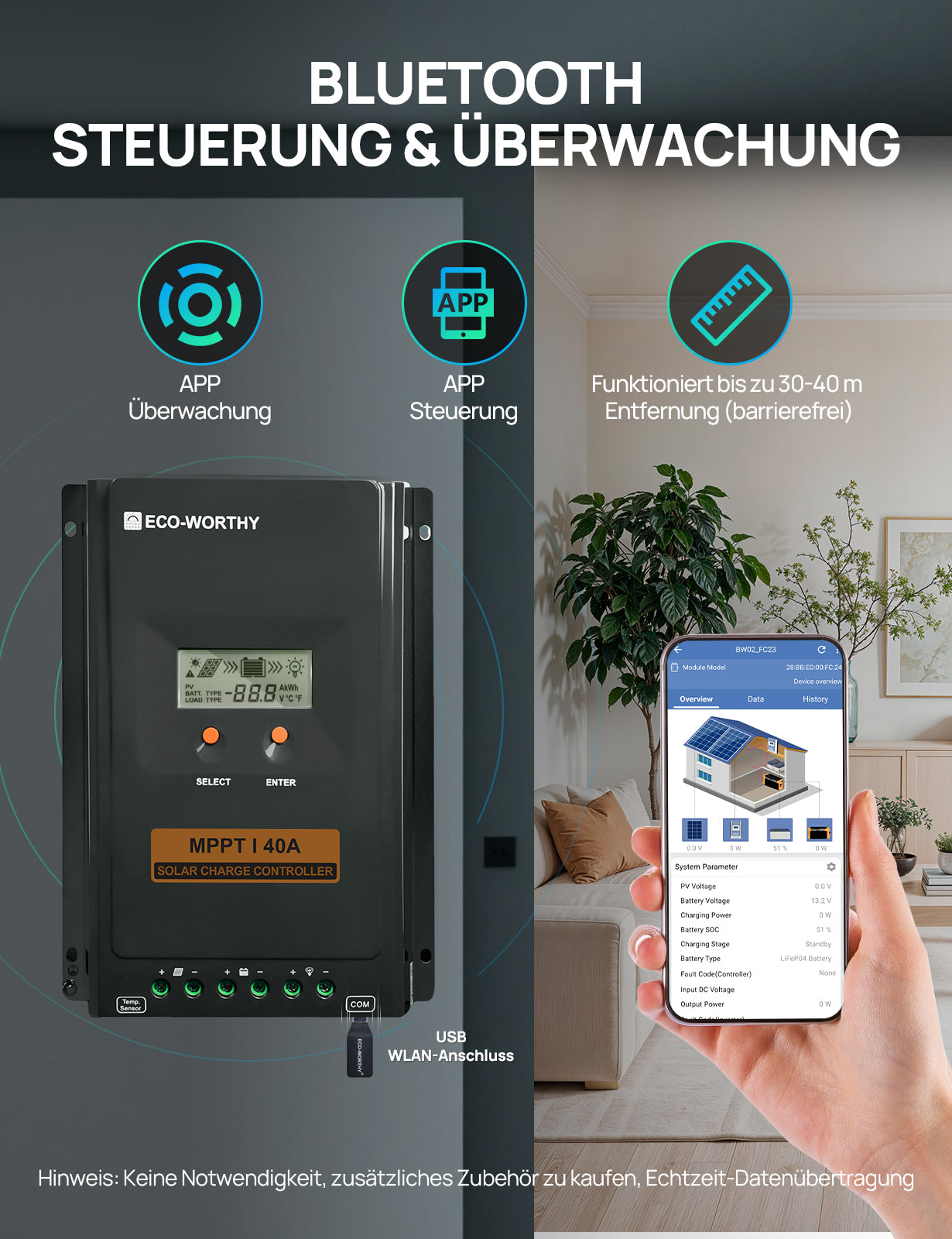

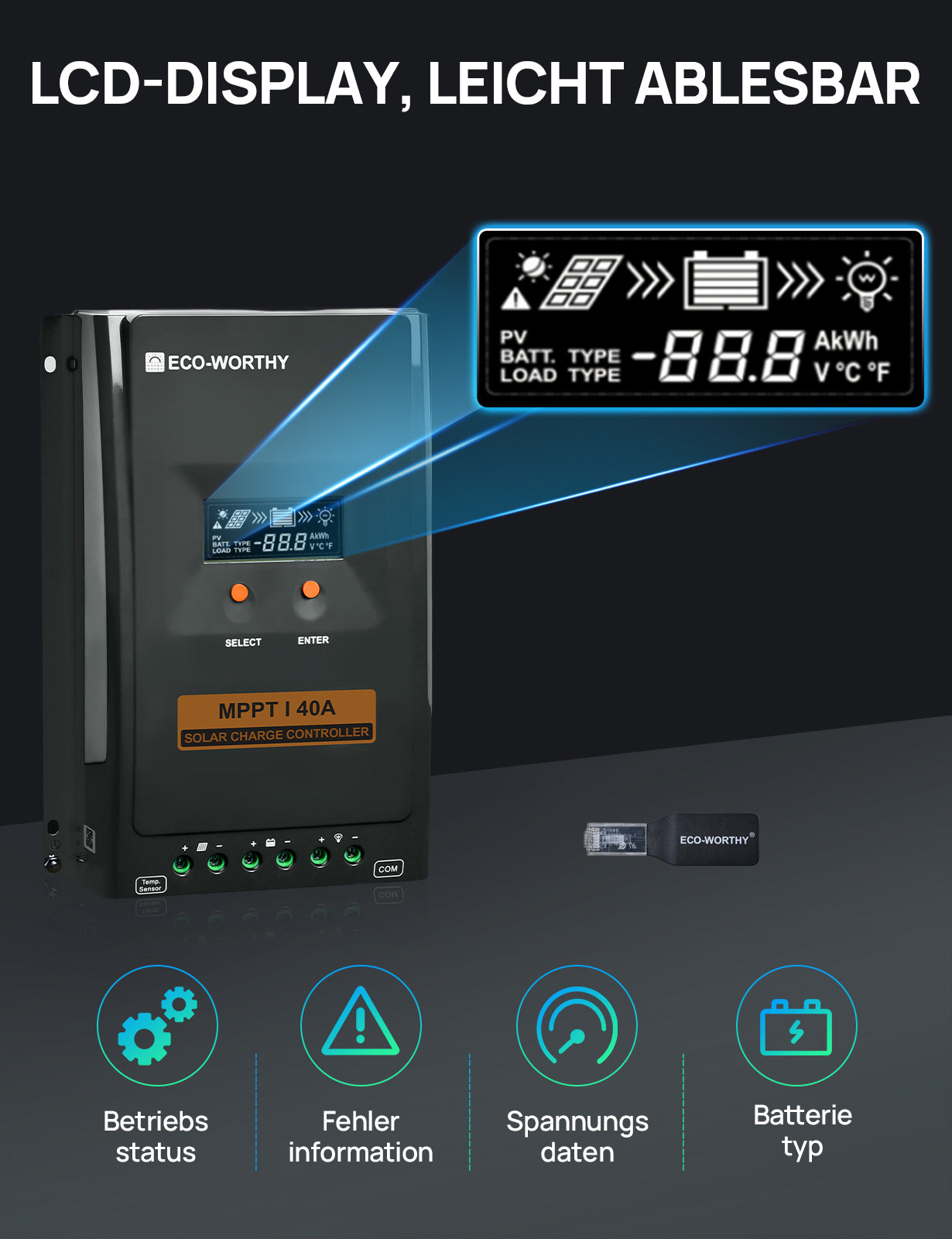

40A MPPT Solarladeregler

Batteriespannung: 12V/24V	Max. Solareingangsleistung: 560/1120W
Lademodus: MPPT	Nennlaststrom: 20A
Ladeeffizienz (Spitze): 97%	Eigenverbrauch: 1~2W
Batterietyp: LiFePO4, AGM, versiegelt, Gel, überflutet	Größe: 220 x 148 x 64 mm
Maximaler Ladestrom: 40A	Gewicht: 1,5 kg
Max. PV-Leerlaufspannung: <100V

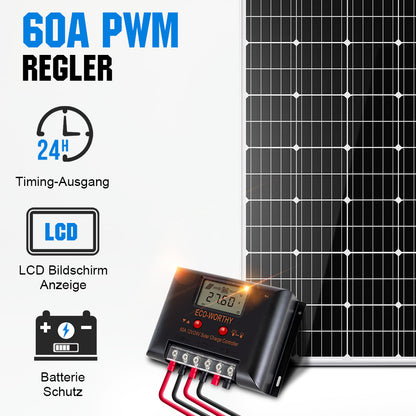

60A PWM Solarladeregler

Batteriespannung: 12V/24V	Lademodus: PWM
Batterietyp: AGM,SLA,GEL,Li	Maximaler Ladestrom: 60A
Entladestrom: 60A	Max. PV-Leerlaufspannung: <55V
Maximale Batteriespannung: <34V	Ausgleichsladespannung: 14,6V/29,2V
Schwebeladespannung: 13,8V/27,6V	Laderückspannung: 13,2V/26,4V
Überentladungsrückspannung: 12,5V / 25V (einstellbar)	Überentladungsspannung: 11,0V / 22,0V (einstellbar)
Größe: 189 x 127 x 54 mm	Gewicht: 650 g

5m Solarkabel 4mm² mit MC4

Kabeltyp: Anschluss von Solarmodulen an Laderegler	Nennspannung: 600/1000V
Länge: 5 Meter (16 Fuß)	Leiter: Verzinnter Kupferdraht
AWG: 12	Normale Querschnittsfläche des Leiters (mm2): 4
Wasserdicht: IP 65-Schutz	Temperatur: -40 °F bis +185 °F
Anschluss: MC4

Solar Y-Stecker

Kompatibel mit MC4 Solarstecker.

Einfache Installation für 2 parallel geschaltete Solarmodule.
