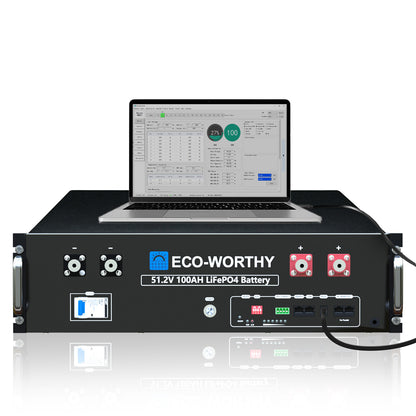

RS232/RS485-auf-USB-Adapterkabel für Server-Rack-Batterie und PC-Kommunikation

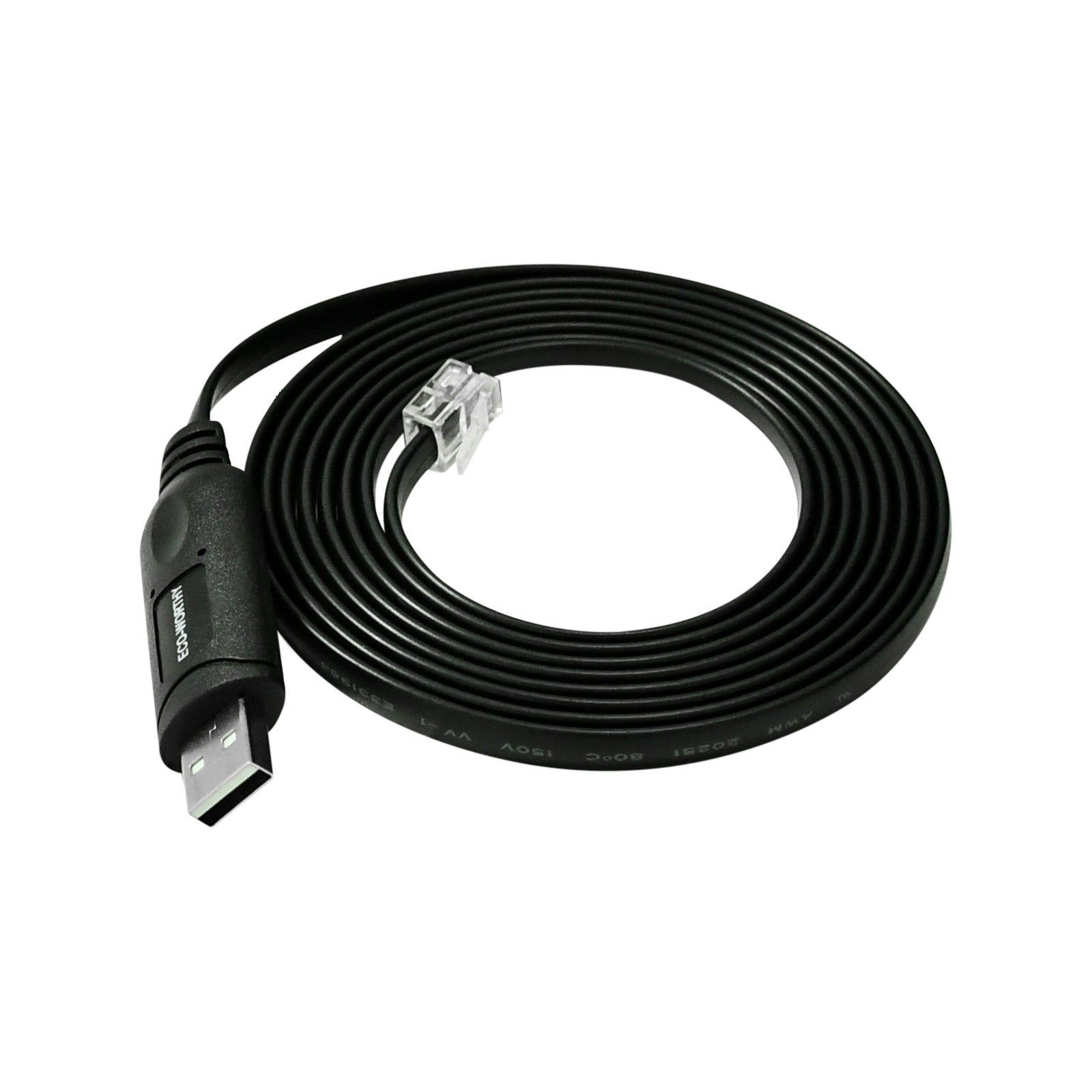

RS232 zu USB

Puce	FTDI-FT232R
Kabelspezifikationen	UL20251 28AWG (7/0,12BC) 6C, PVC-Mantel, Farbe: Schwarz
Außendurchmesser	2,5 mm × 7,0 mm ± 0,2 mm
Länge	2000 mm ± 10 mm
USB-Anschluss	FTDI-FT232R Leiterplatte + SP213, USB-A-Stecker, Kunststofffarbe: Weiß
RS232-Anschluss	RJ12 6P6C-Stecker



RS232		USB
Stift	Beschreibung	Stift	Beschreibung
1, 2, 6	NC	1	VCC
4	TXD	2	D+
3	RXD	3	D-
5	GND	4	GND

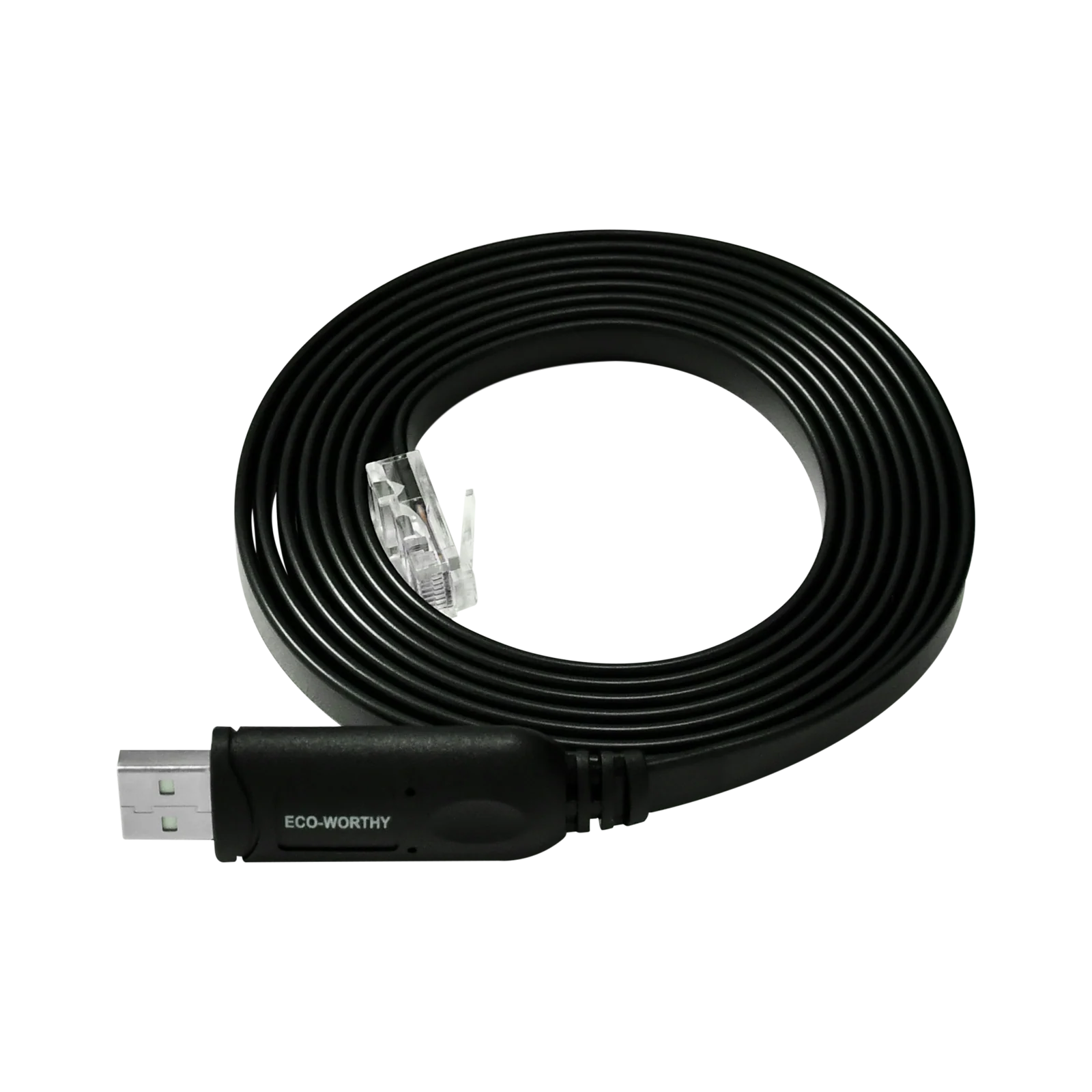

RS485 zu USB

Puce	FTDI-FT485R
Kabelspezifikationen	UL20251 28AWG (7/0,12BC) 6C, PVC-Mantel, Farbe: Schwarz
Außendurchmesser	2,5 mm × 7,0 mm ± 0,2 mm
Länge	2000 mm ± 10 mm
USB-Anschluss	FTDI-FT232R Leiterplatte + SP213, USB-A-Stecker, Kunststofffarbe: Weiß
RS485-Anschluss	RJ12 6P6C-Stecker

RS485		USB
Stift	Beschreibung	Stift	Beschreibung
2, 7	A+	1	VCC
1, 8	B-	2	D+
4, 5	NC	3	D-
3, 6	GND	4	GND

Sicherheitsprüfungsinformationen

1. Elektrische Prüfung: 100 % Unterbrechung, Kurzschluss und Verdrahtungsfehler.

2. Leiterwiderstand: 20 μm, Isolationswiderstand: 10 MOhm.

3. Hochspannung: 300 V DC, 0,01 s.

4. RoHS-Konformität
