ECO-WORTHY 130Wp, 260Wp, 390Wp und 520Wp Off-Grid Solaranlage können für verschiedene Zwecke verwendet werden. die sowohl als Solarmodul für das Wohnmobil, als auch speziell für den Marineeinsatz auf Segelyachten, Motoryachten und anderen Boots-Typen bestens geeignet ist. Unabhängig davon, wofür das Kit verwendet wird, können Sie sicher sein, dass Sie ein Qualitätssystem erwerben.
Das ECO-WORTHY 130Wp ist eine semi-flexible Hochleistungs-Solarzelle. Die besonders lichtdurchlässige strukturierte ETFE Beschichtung der Solarmodule sorgt für eine sehr hohe Kratzfestigkeit und Witterungsbeständigkeit und damit für eine lange Lebensdauer, auch unter schwierigen Bedingungen. Besonders im Marine-Bereich zeichnet ETFE sich gegenüber anderen Kunststoffen wegen seiner hohen Salzwasserbeständigkeit aus. 25 Jahren Leistungsgarantie.
Der 30A und 60A PWM-Laderegler ist geeignet für geschlossene Bleiakkus, Gel-Akkus, Säureakkus und Lithiumakkus, Hohe betriebssicherheit.
Lieferumfang
130Wp (1-Panel) 12V Solaranlage
1x 130 Watt Flexibles Monokristallin Solarmodul
1x 30A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
1x 1,5m Fachkabelchselrichter
260Wp (2-Panel) 12V Solaranlage
2x 130 Watt Flexibles Monokristallin Solarmodul
1x 30A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
1x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter

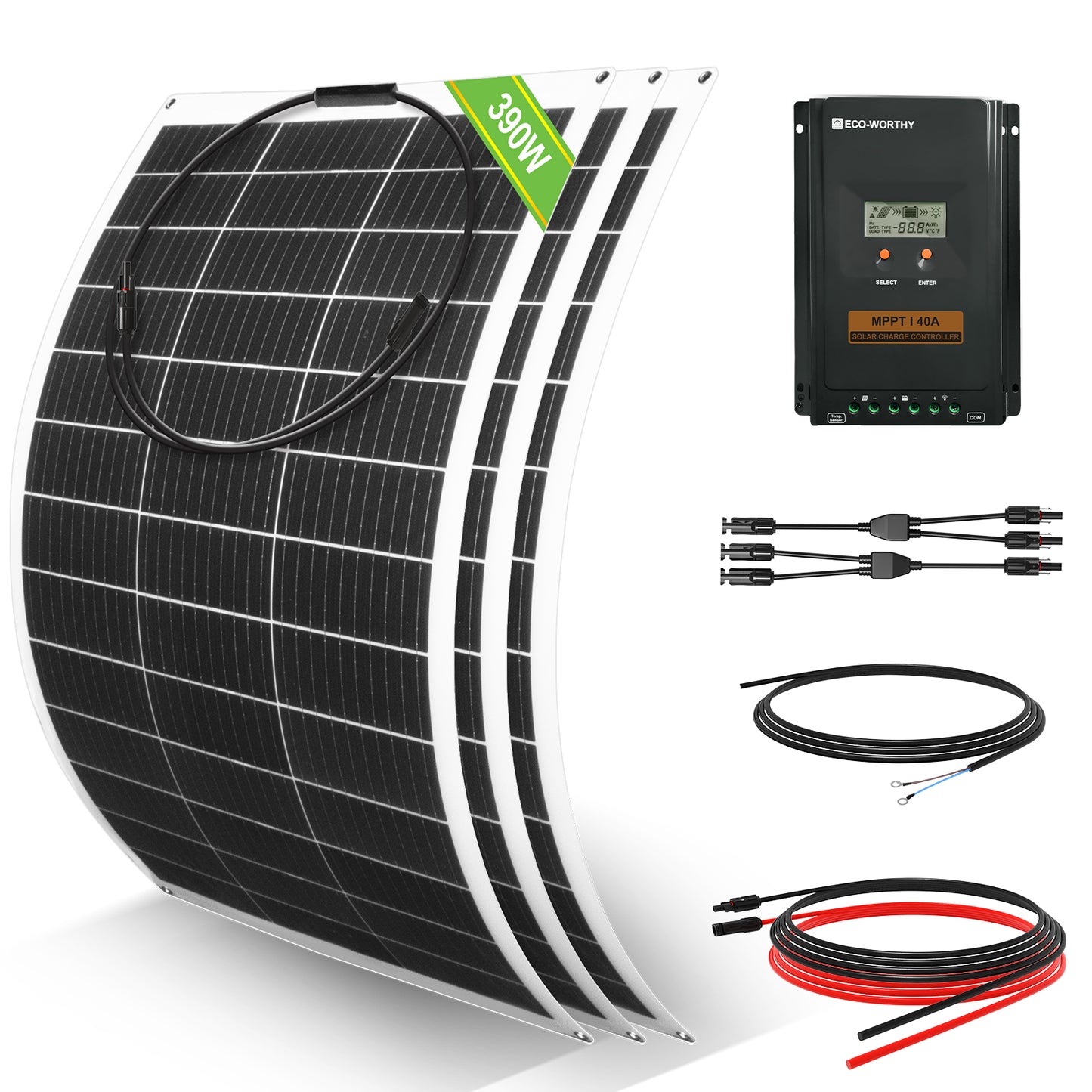

390Wp (3-Panel) 12V Solaranlage
3x 130 Watt Flexibles Monokristallin Solarmodul
1x
40A MPPT Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
2x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter
520Wp (4-Panel) 12V Solaranlage
4x 130 Watt Flexibles Monokristallin Solarmodul
1x 60A PWM Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
3x Y MC4-Anschluss
1x 1,5m Fachkabelchselrichter
130Wp Semi-Flexibles Solarmodul Monokristallin
| Nennleistung: 130Wp |
Solarzelle: Monokristallin |
| Maximale/Spitzenspannung (Vmp): 21,10V |
Leerlaufspannung (Voc): 24,50V |
| Kurzschlussstrom: 6,50A |
Maximalstrom: 6,16A |
| Ausgangstoleranz: ±3% |
Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃ |
| Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃ |
Temperaturbereich: －40℃～ +85℃ |
| Länge des Verlängerungskabels: 90cm |
Größe des Verlängerungskabels: 4 mm² (11 AWG)/MC4-Anschluss |
| Größe: 960 x 690 x 2,5 mm |
Gewicht: 2,0 kg |
30A PWM Solarladeregler
| Batteriespannung: 12V/24V |
Lademodus: PWM |
| Maximaler Ladestrom: 30A |
Entladestrom: 30A |
| Max. PV-Leerlaufspannung: <50V |
USB-Ausgang: 5V/2A |
| Arbeitstemperatur: -20℃~60℃ |
Gewicht: 150 g |
| Größe: 138 x 82 x 30 mm |
|

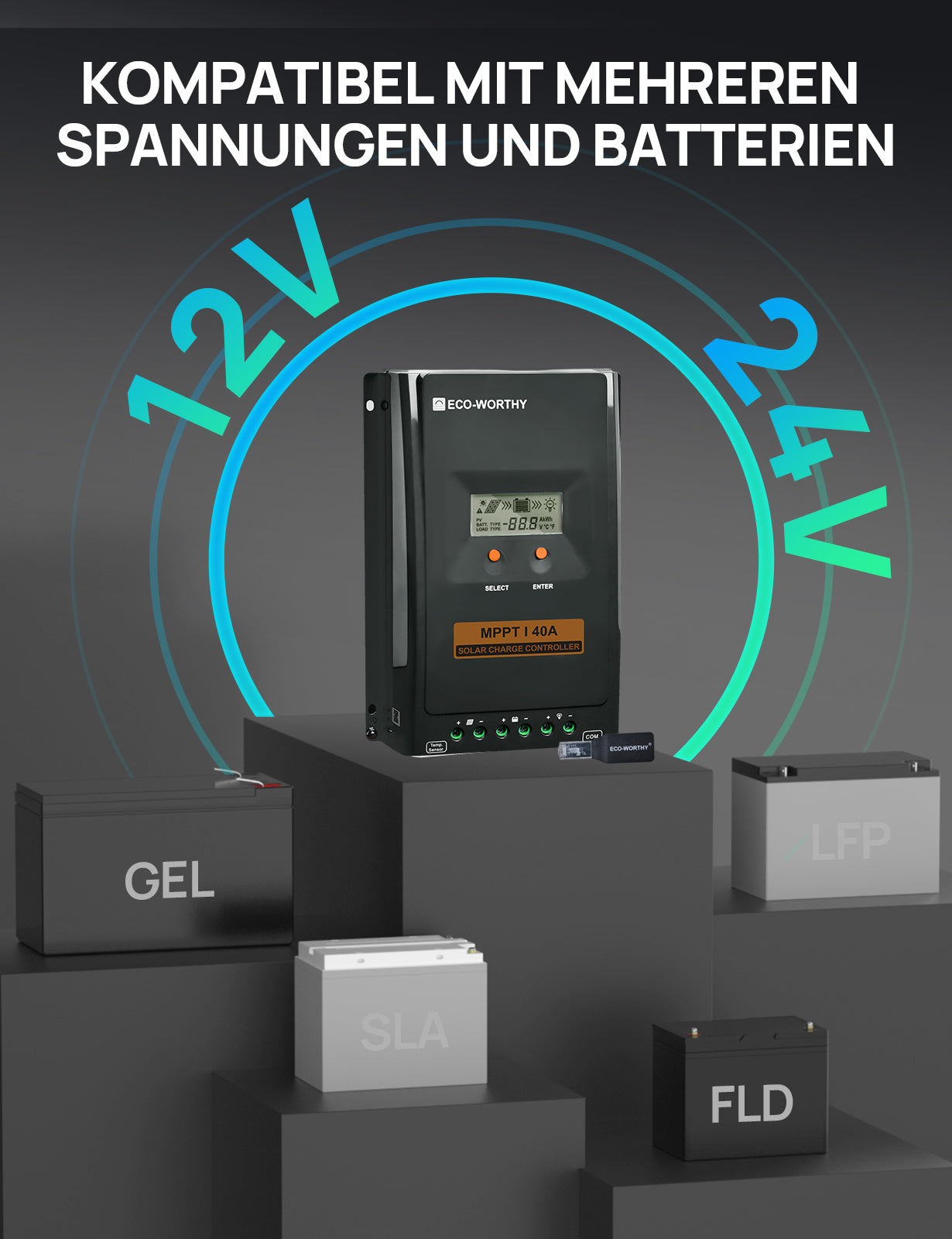

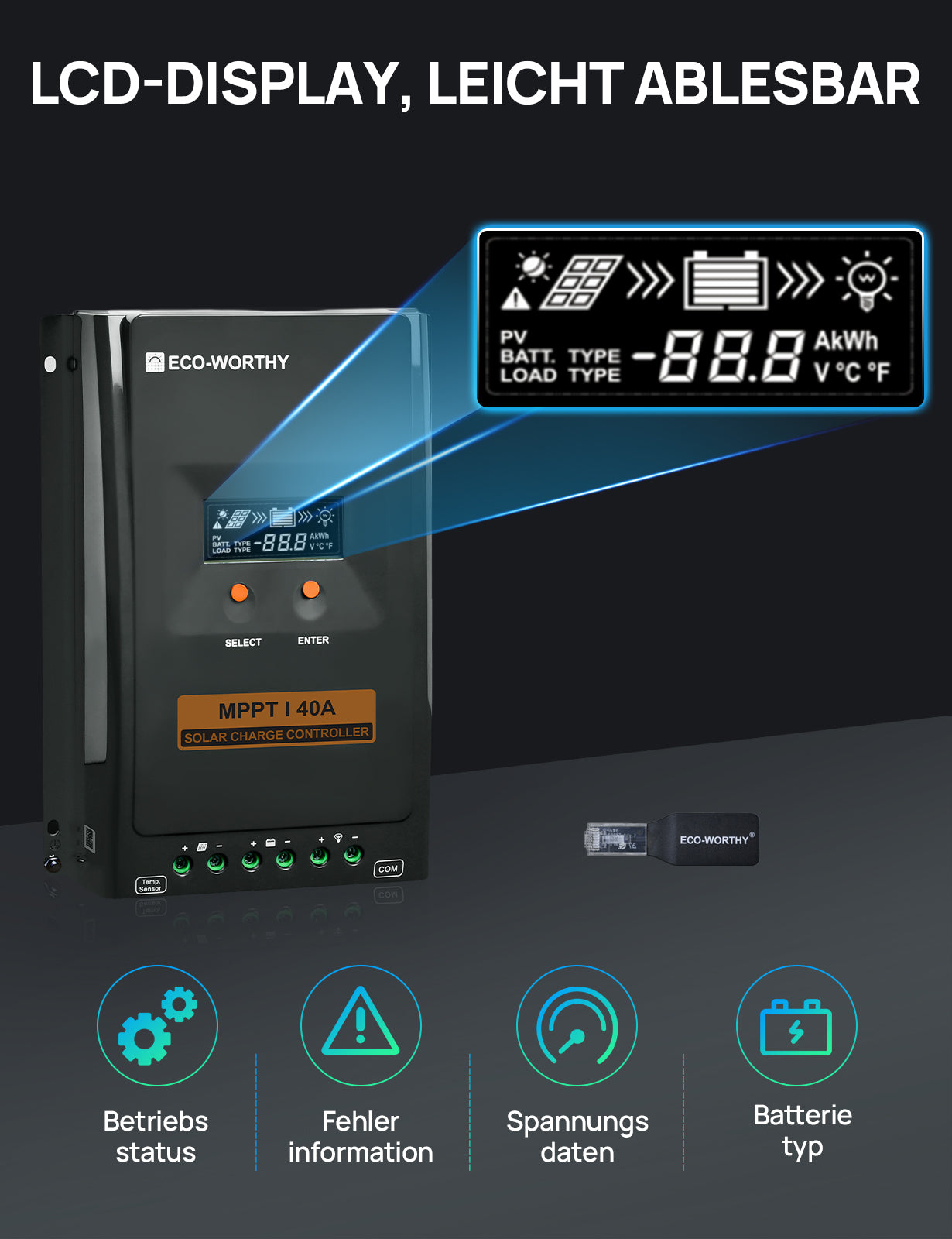

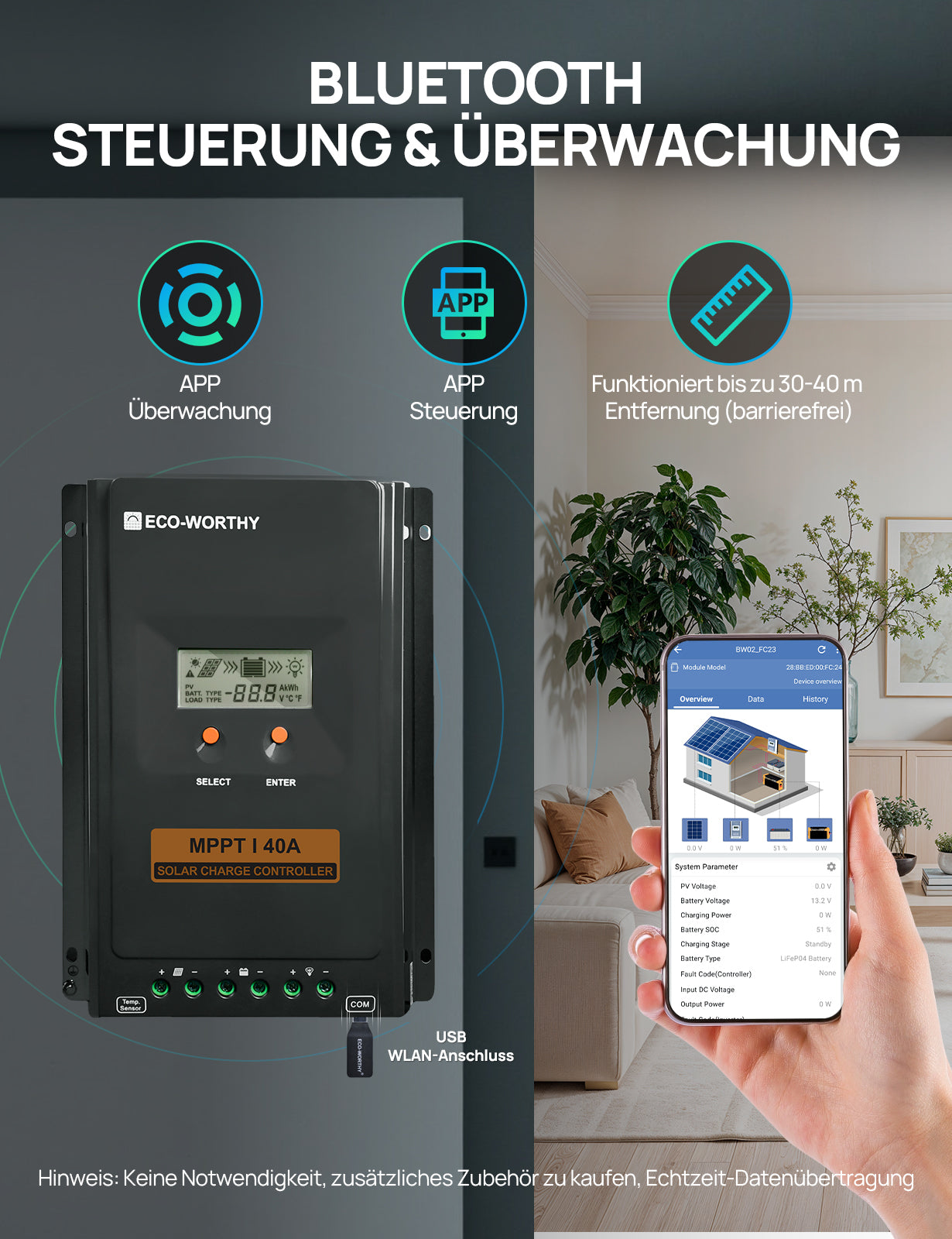

40A MPPT Solarladeregler
| Batteriespannung: 12V/24V |
Max. Solareingangsleistung: 560/1120W |
| Lademodus: MPPT |
Nennlaststrom: 20A |
| Ladeeffizienz (Spitze): 97% |
Eigenverbrauch: 1~2W |
| Batterietyp: LiFePO4, AGM, versiegelt, Gel, überflutet |
Größe: 220 x 148 x 64 mm |
| Maximaler Ladestrom: 40A |
Gewicht: 1,5 kg |
| Max. PV-Leerlaufspannung: <100V |
|
60A PWM Solarladeregler
| Batteriespannung: 12V/24V |
Lademodus: PWM |
| Batterietyp: AGM,SLA,GEL,Li |
Maximaler Ladestrom: 60A |
| Entladestrom: 60A |
Max. PV-Leerlaufspannung: <55V |
| Maximale Batteriespannung: <34V |
Ausgleichsladespannung: 14,6V/29,2V |
| Schwebeladespannung: 13,8V/27,6V |
Laderückspannung: 13,2V/26,4V |
| Überentladungsrückspannung: 12,5V / 25V (einstellbar) |
Überentladungsspannung: 11,0V / 22,0V (einstellbar) |
| Größe: 189 x 127 x 54 mm |
Gewicht: 650 g |
5m Solarkabel 4mm² mit MC4
| Kabeltyp: Anschluss von Solarmodulen an Laderegler |
Nennspannung: 600/1000V |
| Länge: 5 Meter (16 Fuß) |
Leiter: Verzinnter Kupferdraht |
| AWG: 12 |
Normale Querschnittsfläche des Leiters (mm2): 4 |
| Wasserdicht: IP 65-Schutz |
Temperatur: -40 °F bis +185 °F |
| Anschluss: MC4 |
|
Solar Y-Stecker
| Kompatibel mit MC4 Solarstecker. |
Einfache Installation für 2 parallel geschaltete Solarmodule. |
