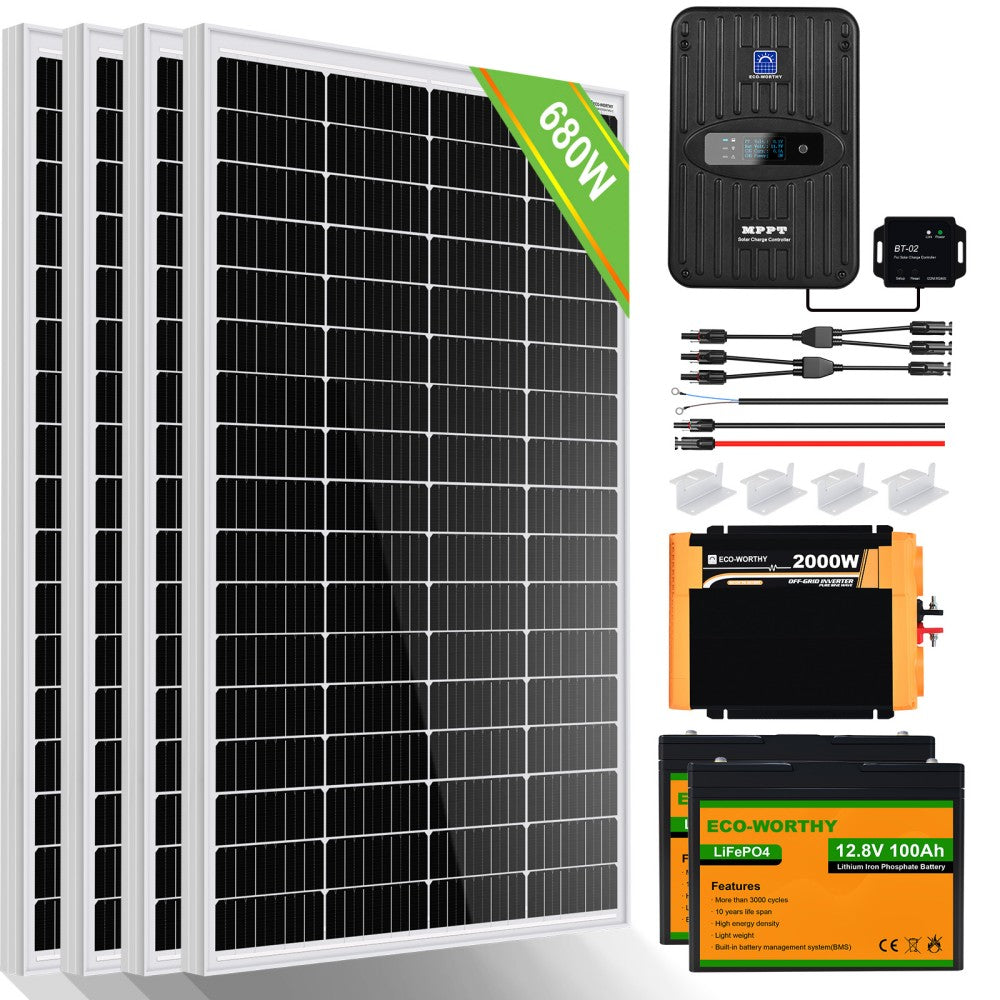

ECO-WORTHY 680 Wp 12V Off-Grid Komplettset Solaranlage können für verschiedene Zwecke verwendet werden. Darunter Hütten, Garten und Wohnmobile. Unabhängig davon, wofür das Kit verwendet wird, können Sie sicher sein, dass Sie ein Qualitätssystem erwerben.

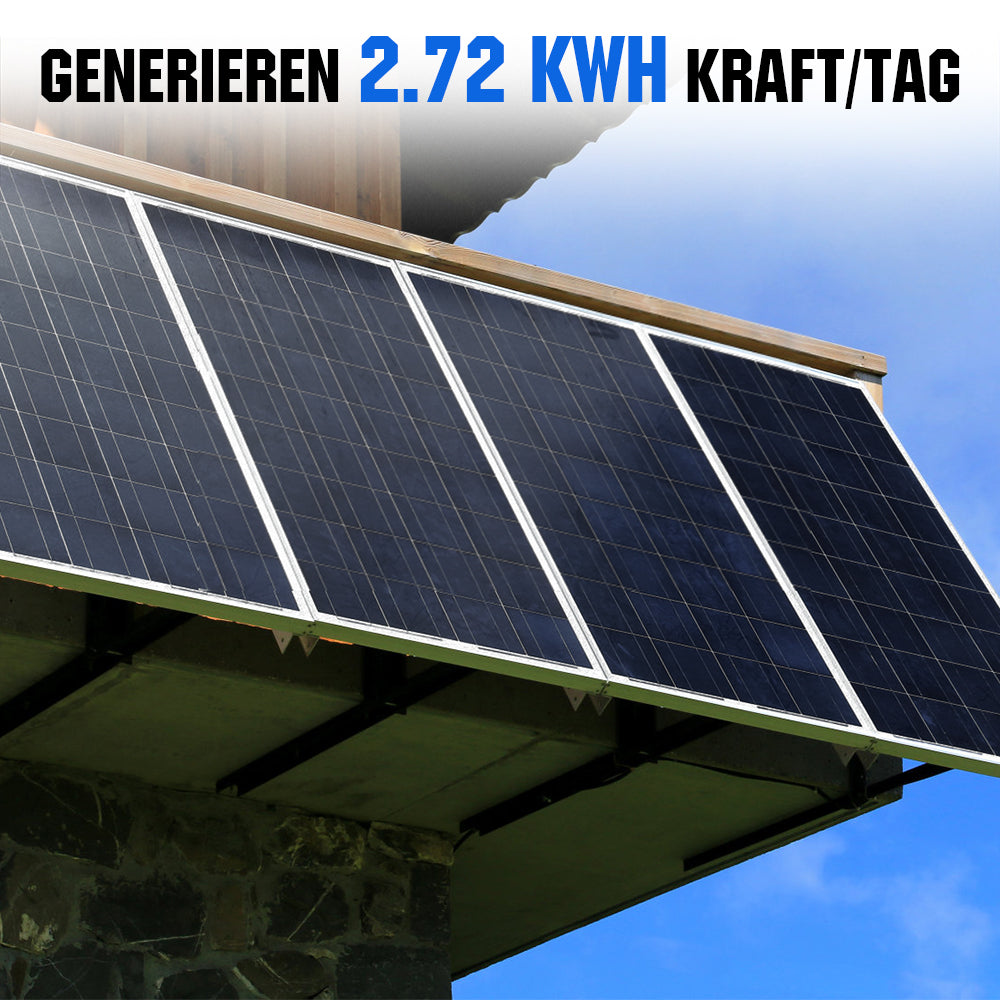

Die Solarmodule der ECO-WORTHY 170Wp sind hochwertige Module mit monokristallinen Zellen, Hervorragendes Schwachlichtverhalten an bewölkten Tagen, morgens und abends. Solarmodul besteht aus hagelfestem, gehärtetes Solarglas mit einer wetterfesten Beschichtung, der Rahmen aus eloxierten Aluminium und die Anschlüsse sind wetterbeständig - demnach also optimal geschützt gegen WInd und Wetter. 25 Jahren Leistungsgarantie.
Der 40A MPPT-Laderegler ist geeignet für geschlossene Bleiakkus, Gel-Akkus, Säureakkus und Lithiumakkus, Hohe betriebssicherheit.
ECO-WORTHY 2000W 12V-220V hochwertige Reiner Sinus-Wechselrichter wandelt den Gleichstrom in Wechselstrom für ihre Haushaltsgeräte um. Die Stromqualität entspricht dem des gewohnten Haushaltsstromes. Sie können damit problemlos Stereoanlagen, Kaffeemaschinen, Laptops, Netzteile, Kühlboxen Beleuchtung oder Fernseher betreiben.

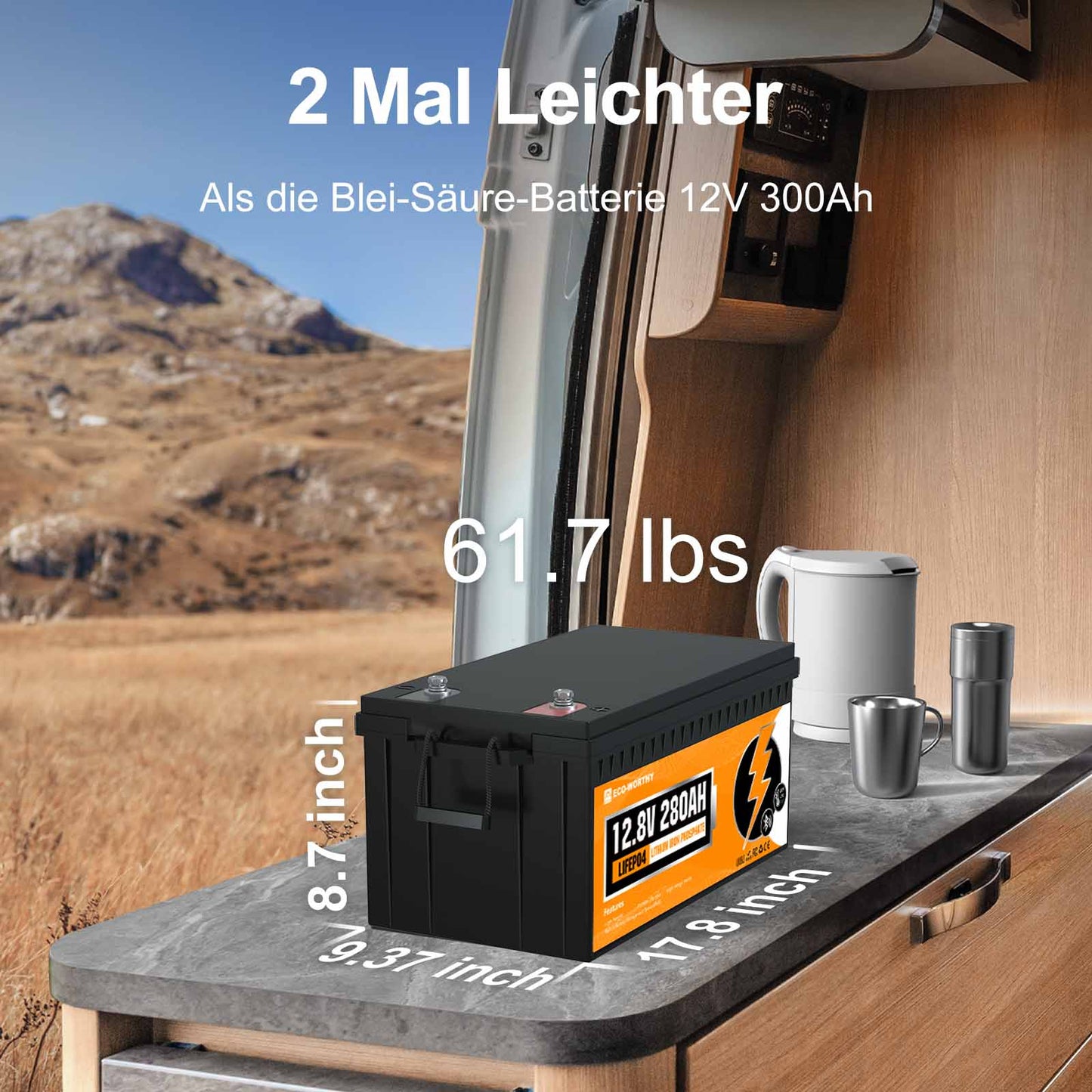

Hochleistungs LiFePO4 12V 100AH Lithium-Eisenphosphat-Batterie hat die doppelte Leistung, das halbe Gewicht und hält 8-mal länger als eine Blei-Säure-Batterie - und hat zudem eine deutlich höhere Lebenserwartung. Die Lithium Batterie kann ca. 4000 Zyklen bei einer 80% igen Entladungstiefe fahren.

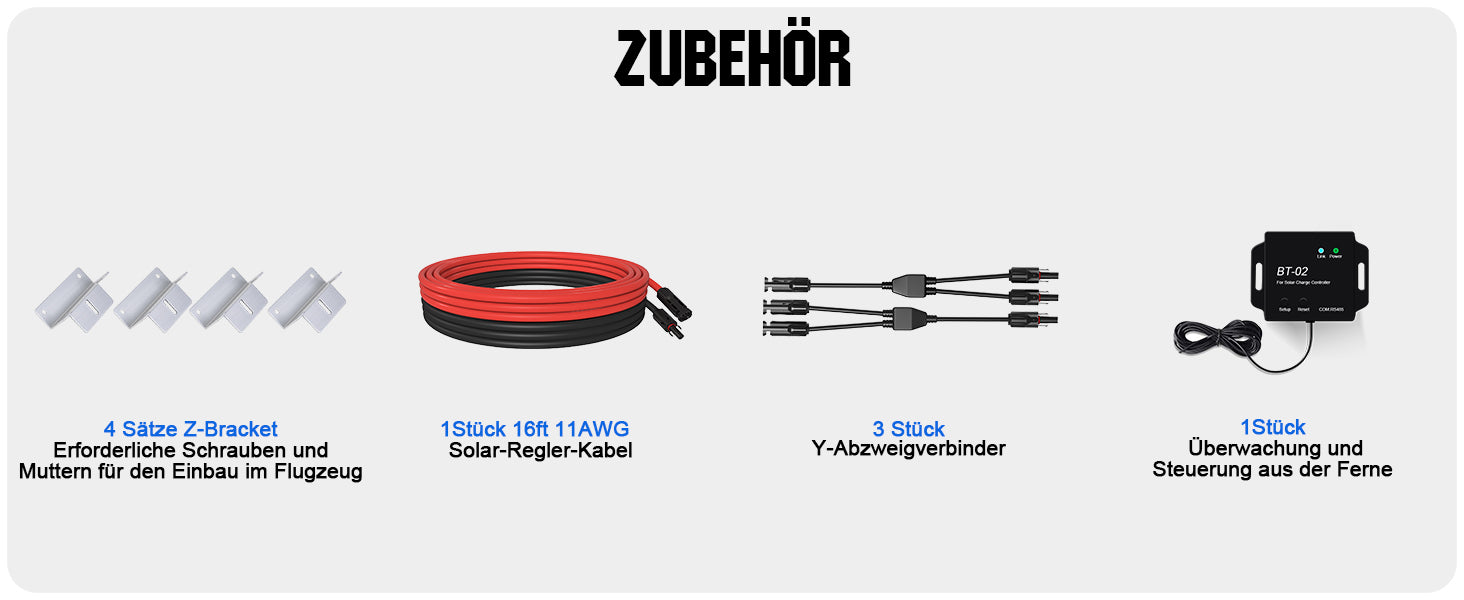

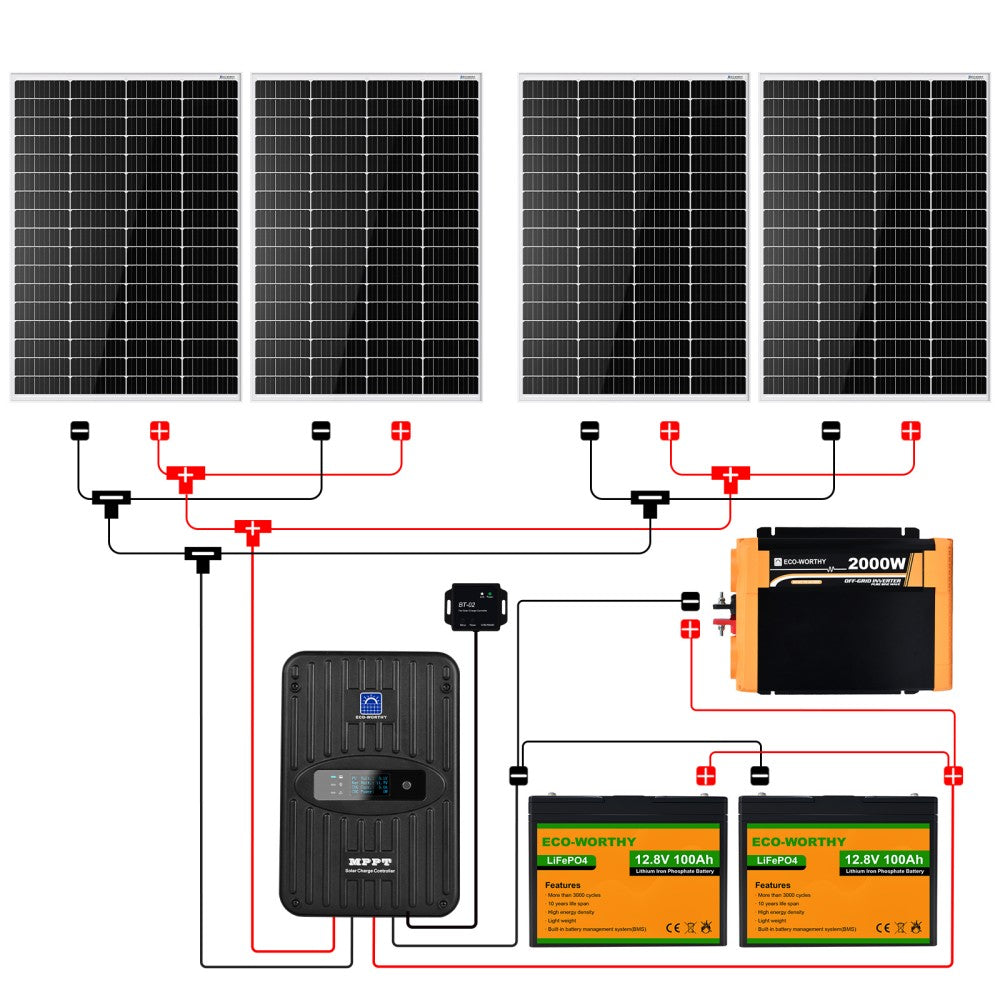

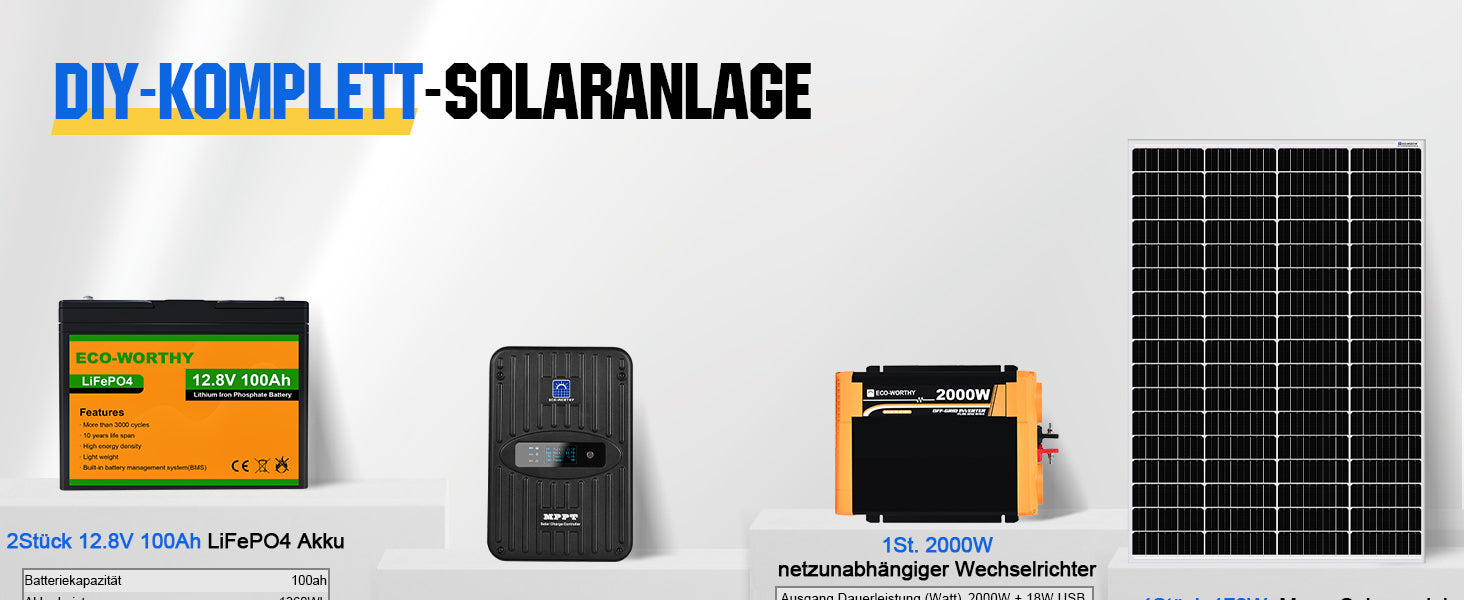

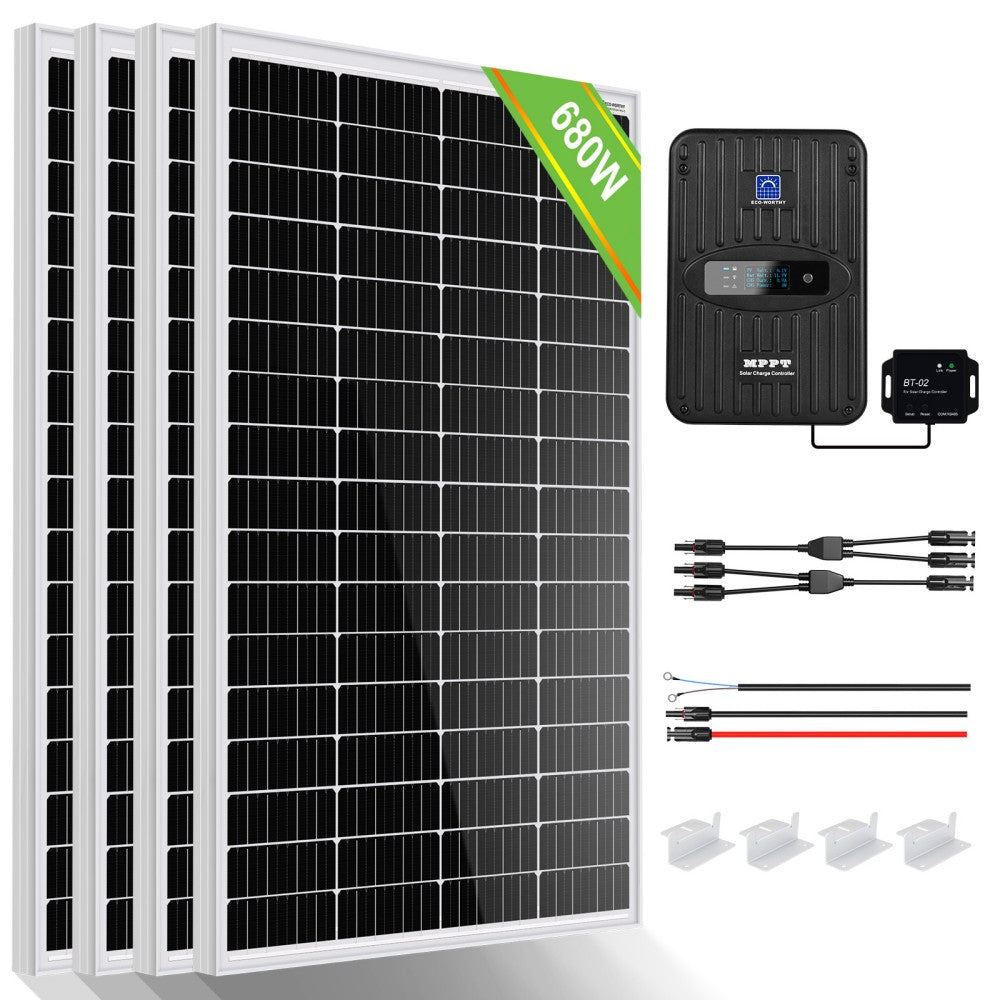

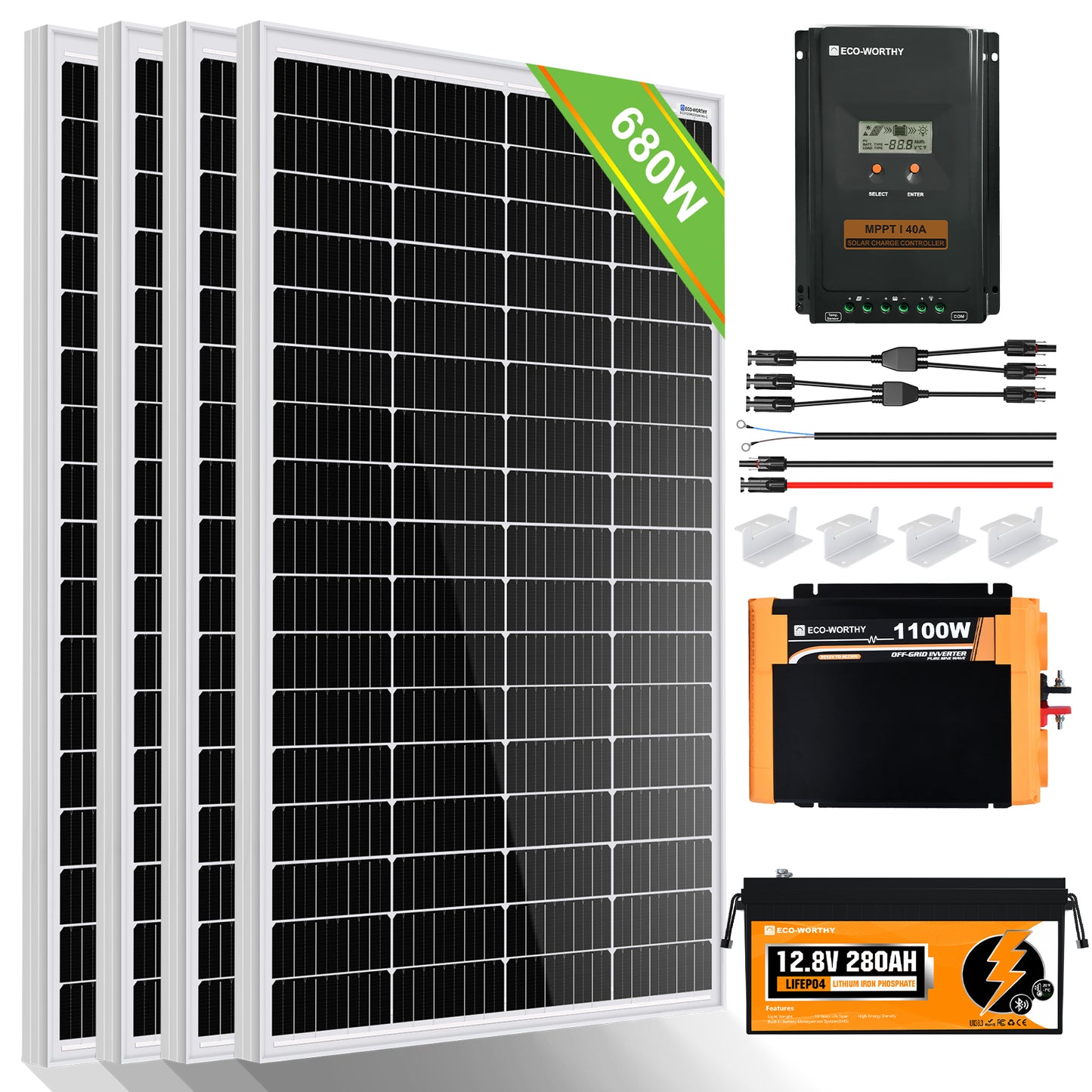

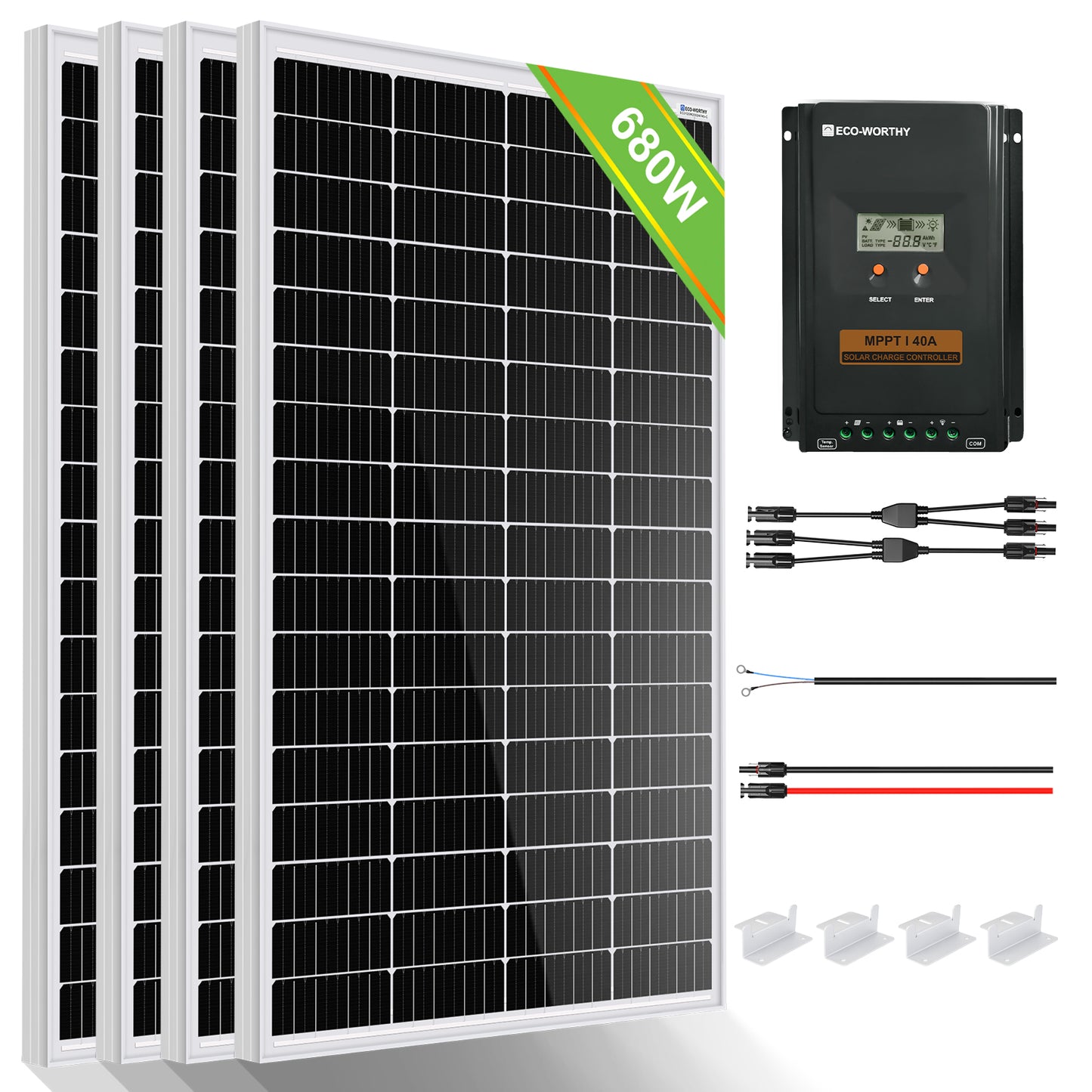

Lieferumfang
4x 170 Watt Monokristallin Solarmodul
1x 40A MPPT Laderegler
1x 5m PV-Solarkabel 4mm² mit MC4
4x Z-Montagehalterung
3x Y MC4-Anschluss

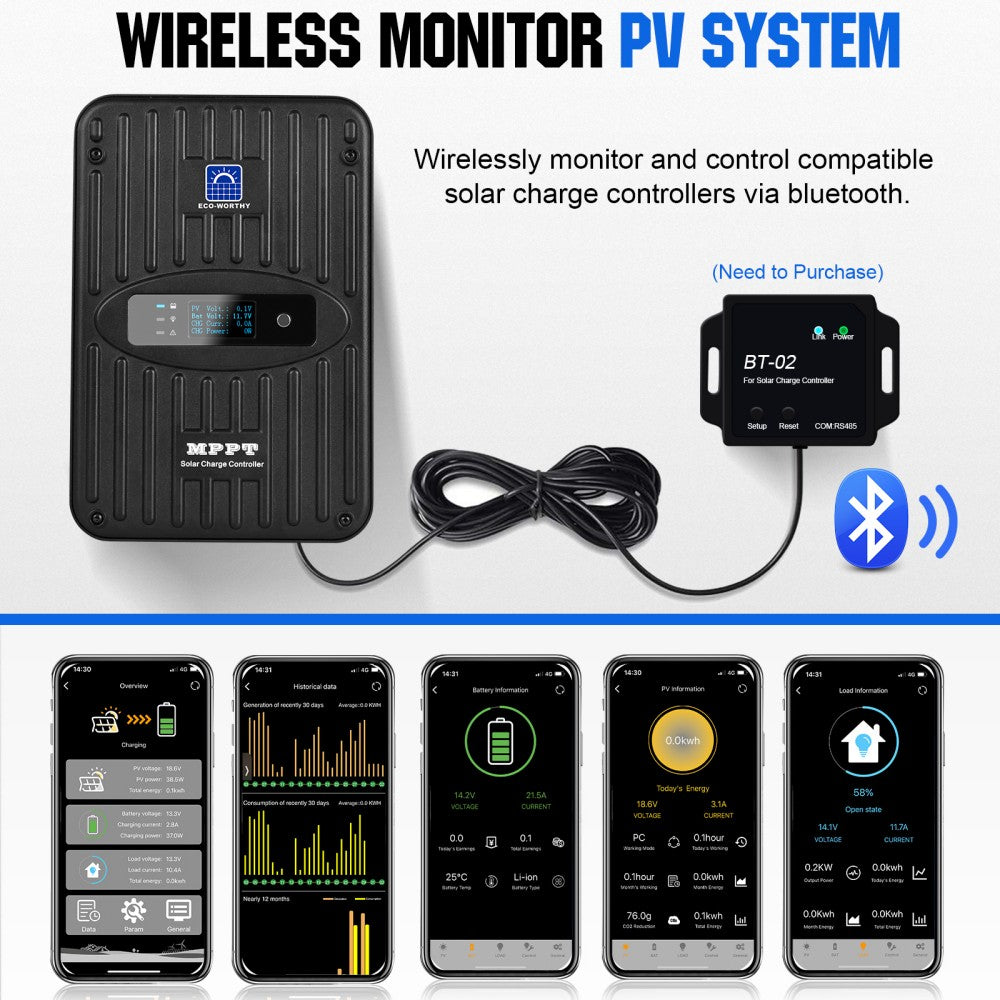

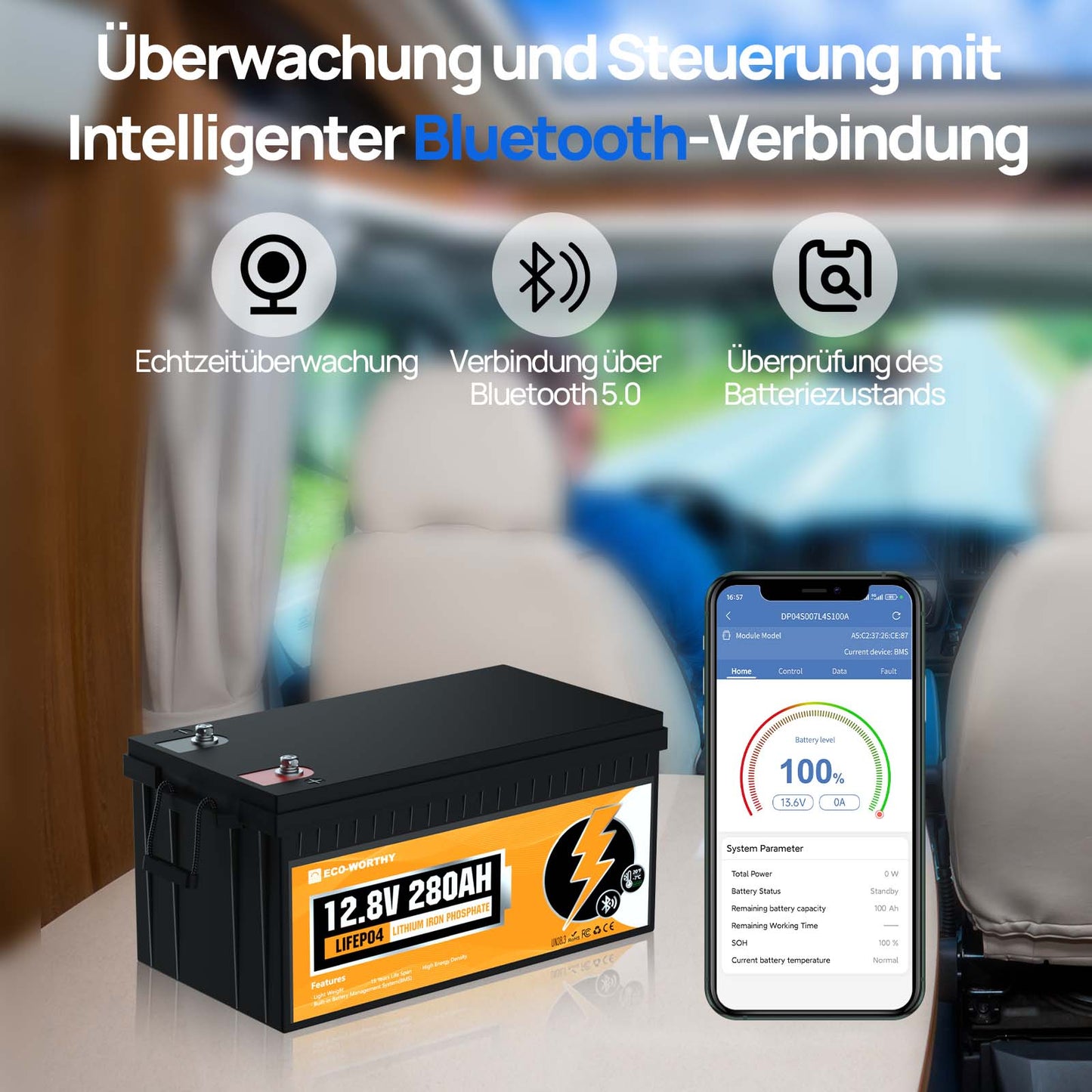

1x Bluetooth-Modul RS485
2kW Wechselrichter+2,4kWh LiFePO4 (optional)
mit
1x 1,5m Fachkabel
1x 2000W 12V-220V Reiner Sinus-Wechselrichter
2x 100Ah 12V Lithium LifePo4 Akku

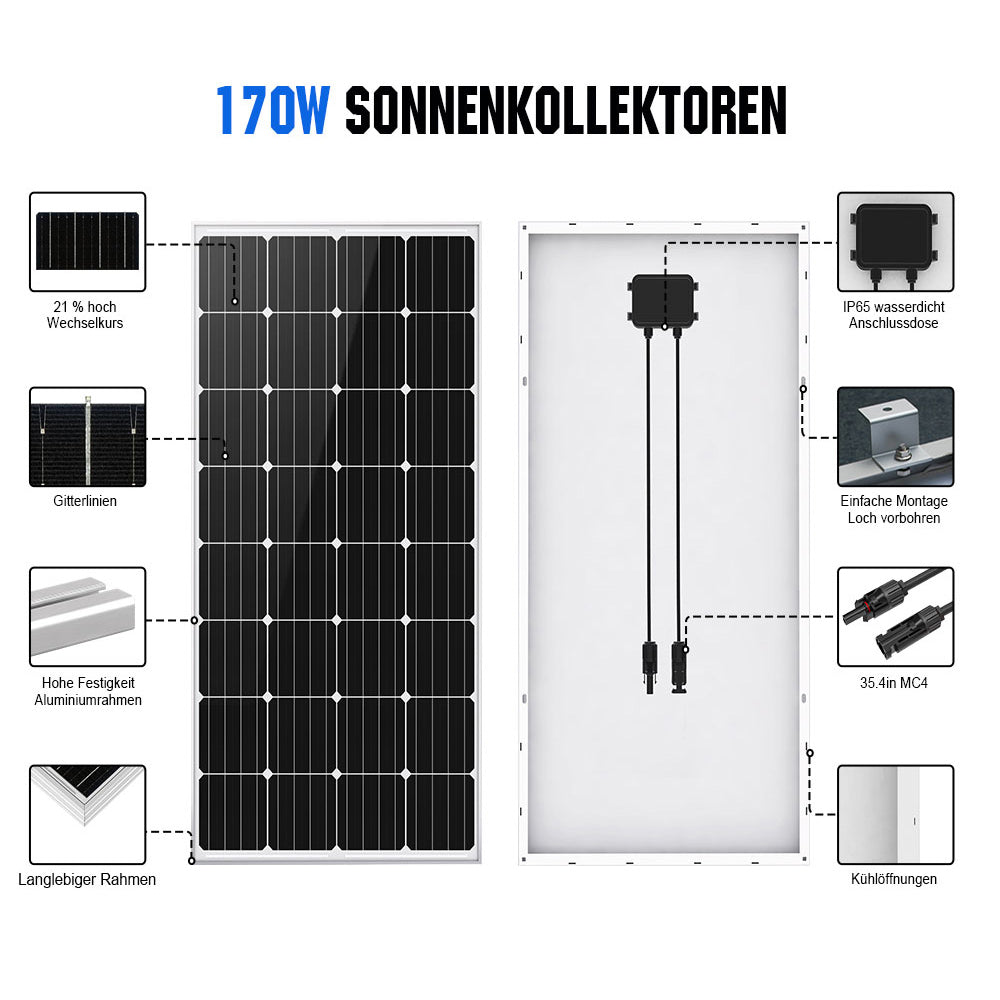

170Wp Solarmodul Monokristallin
| Nennleistung: 170Wp |
Solarzelle: Monokristallin |
| Maximale/Spitzenspannung (Vmp): 19,0V |
Leerlaufspannung (Voc): 23,0V |
| Kurzschlussstrom: 9,39A |
Maximalstrom: 8,95A |
| Ausgangstoleranz: ±3% |
Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃ |
| Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃ |
Temperaturbereich: －40℃～ +85℃ |
| Rahmen: Rahmen aus Aluminiumlegierung |
Länge des Verlängerungskabels: 90cm |
| Größe des Verlängerungskabels: 4 mm² (11 AWG)/MC4-Anschluss |
Größe: 1110 x 770 x 35 mm |
| Gewicht: 8,9 kg |
|

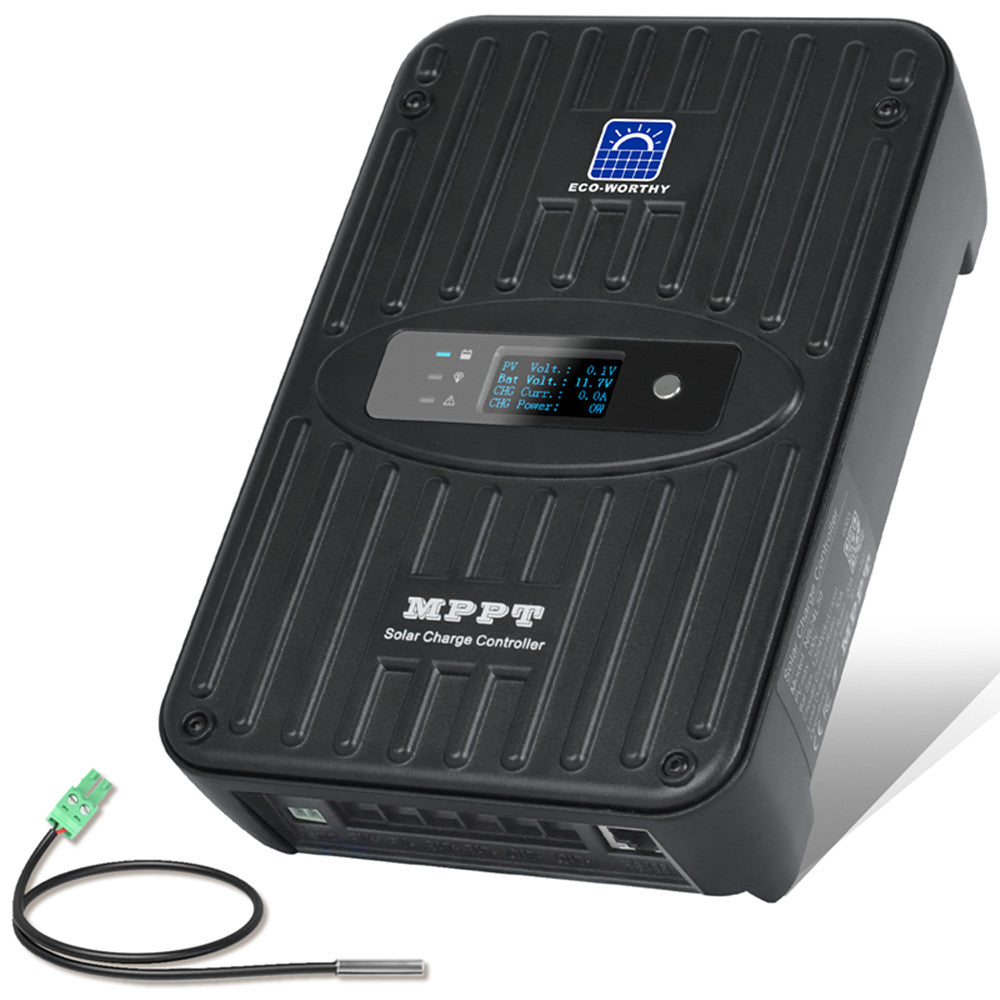

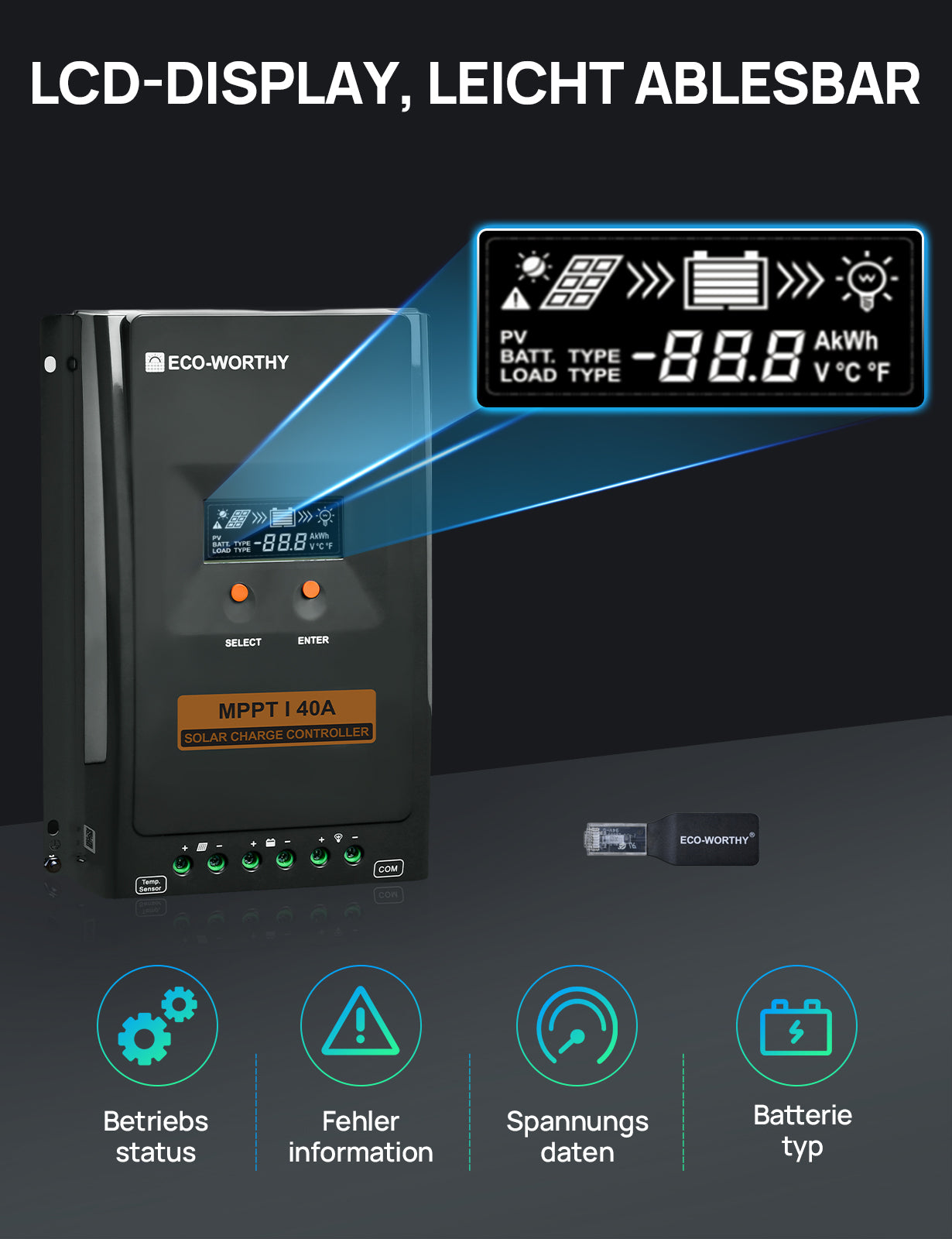

40A MPPT Solarladeregler
| Batteriespannung: 12V/24V |
Max. Solareingangsleistung: 560/1120W |
| Lademodus: MPPT |
Nennlaststrom: 20A |
| Ladeeffizienz (Spitze): 97% |
Eigenverbrauch: 1~2W |
| Batterietyp: LiFePO4, AGM, versiegelt, Gel, überflutet |
Größe: 220 x 148 x 64 mm |
| Maximaler Ladestrom: 40A |
Gewicht: 1,5 kg |
| Max. PV-Leerlaufspannung: <100V |
|

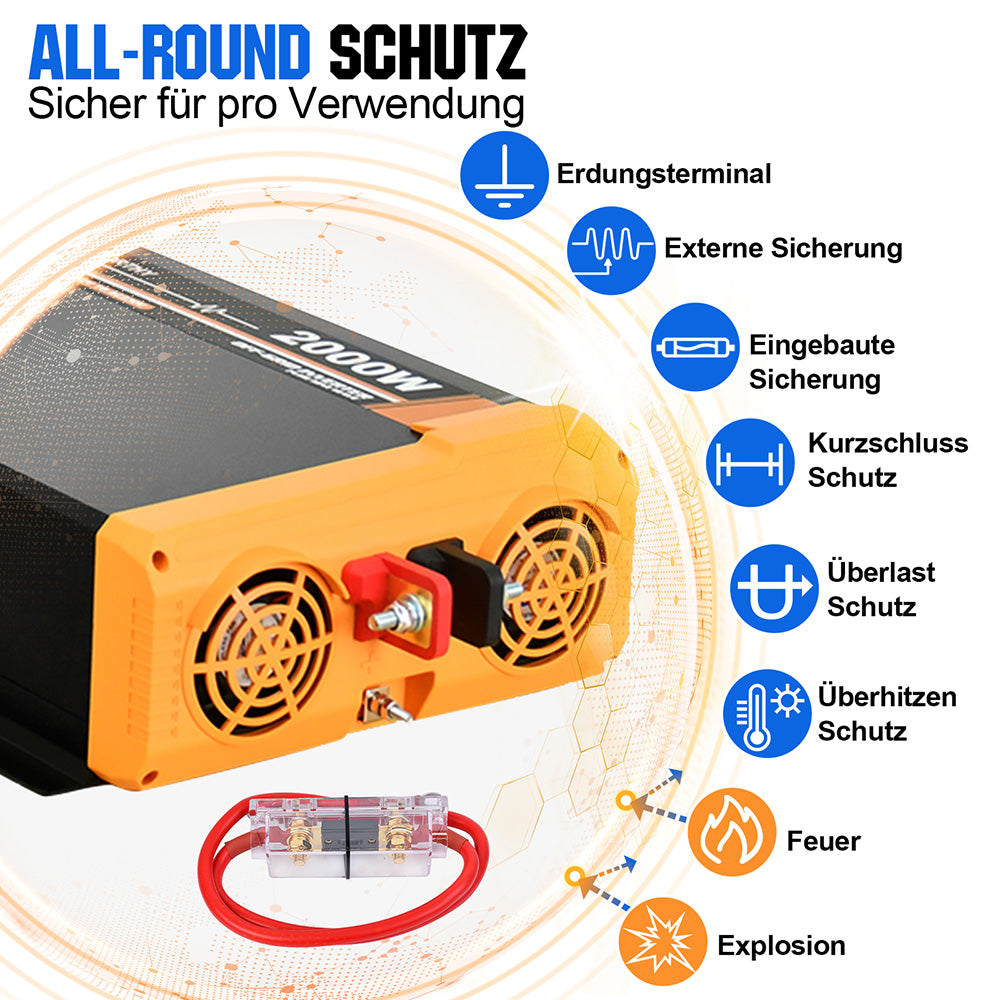

2000W 12V Solarwechselrichter
| Kontinuierliche Ausgangsleistung (W): 2000W + 18W USB |
Überspannungskapazität (Spitzenleistung): 4000W |
| Nenneingang DC (V,A): 12V Batterie, 200A |
Eingangsspannungsbereich: 10,5–16VDC ± 0,3V |
| Nennfrequenz (Hz): 50Hz±1 |
Nennausgang AC (V, A): 230VAC ±10 %, 8,7A |
| Nennleistung USB (V,A): 2*QC3.0 USB-Anschlüsse (5V/3A, 9V/2A, 18W max.) |
Leerlaufstrom: <1,2A |
| Optimaler Wirkungsgrad: 85% min |
Sicherung (A): 40A*6 |
| Sicherungstyp: Interne Klinge |
Ausgangswellenform: Reine Sinuswelle |
| Berührungstemperatur: 65℃ (149℉)max |
Betriebstemperatur: -20℃~40℃ (4℉~104℉) |
| Luftfeuchtigkeit bei Betrieb/Lagerung RH: 5~95% |
Kühlsystem: Thermolüfter |
| Klirrfaktor: <4,5 % |
Abmessungen (L*B*H): 16,8*9,8*4,1 Zoll |
| Zusammengebautes Gewicht: 10,89 lbs |
|

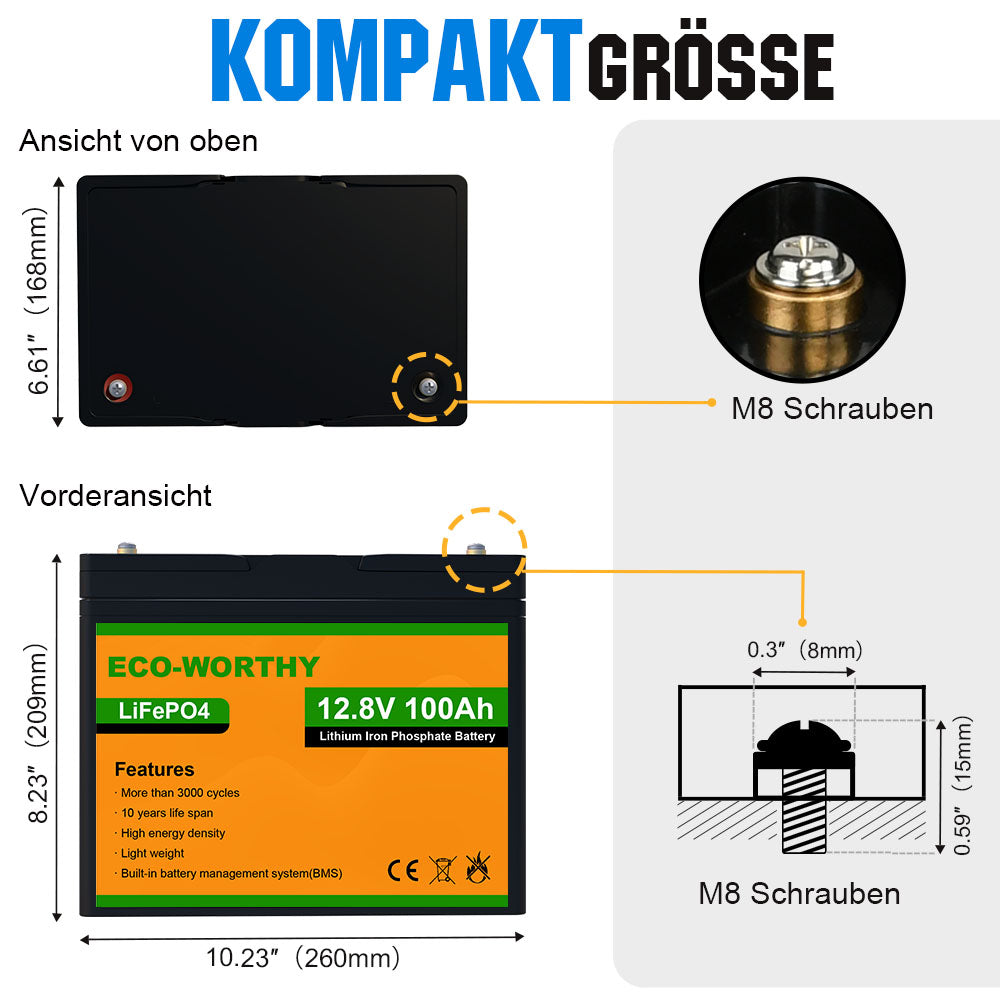

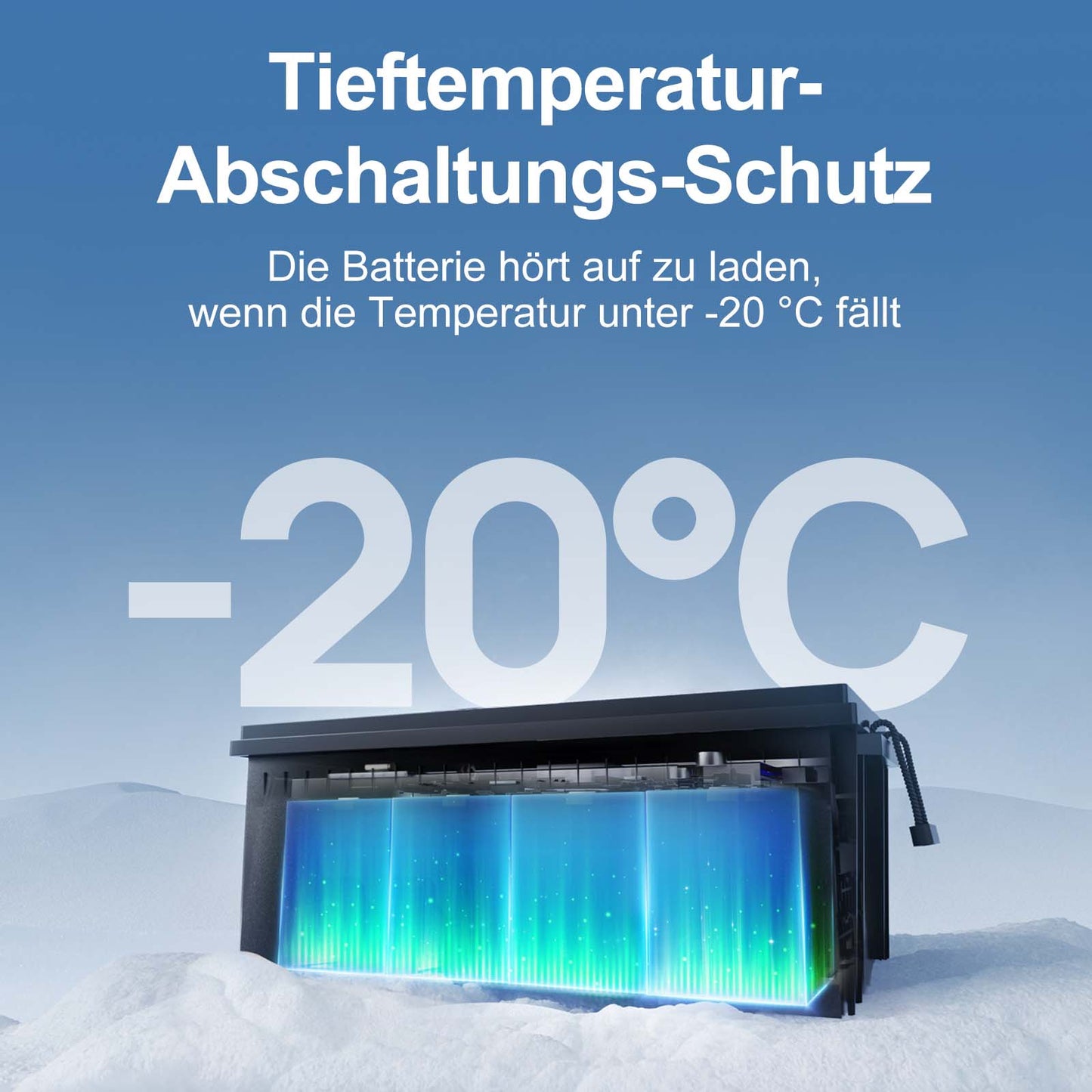

100Ah LiFePO4 Batterien
| Batteriekapazität: 100Ah |
Batterieleistung: 1280Wh |
| Batteriespannung: 12,8V |
Maximaler Lade-/Entladestrom: 100A/100A |
| Ladetemperaturbereich: 0-55℃ |
Entladetemperaturbereich: ﹣20－55℃ |
| Maximale Ladespannung: 14,5V |
Entladeschlussspannung: 10V |
| Schraubengröße: M8 |
Batteriegröße: 260 * 168 * 214 mm (10.24*6.61*8.43inch) |
| Batteriegewicht: 10.5 kg(23.15lbs) |
|
5m Solarkabel 4mm² mit MC4
| Kabeltyp: Anschluss von Solarmodulen an Laderegler |
Nennspannung: 600/1000V |
| Länge: 5 Meter (16 Fuß) |
Leiter: Verzinnter Kupferdraht |
| AWG: 12 |
Normale Querschnittsfläche des Leiters (mm2): 4 |
| Wasserdicht: IP 65-Schutz |
Temperatur: -40 °F bis +185 °F |
| Anschluss: MC4 |
|
Z-Halterung
| 4 Stück Solarmodulhalterungen in Z-Form |
8 Stück Edelstahlmuttern und Kopfschrauben |
Solar Y-Stecker
| Kompatibel mit MC4 Solarstecker. |
Einfache Installation für 2 parallel geschaltete Solarmodule. |
