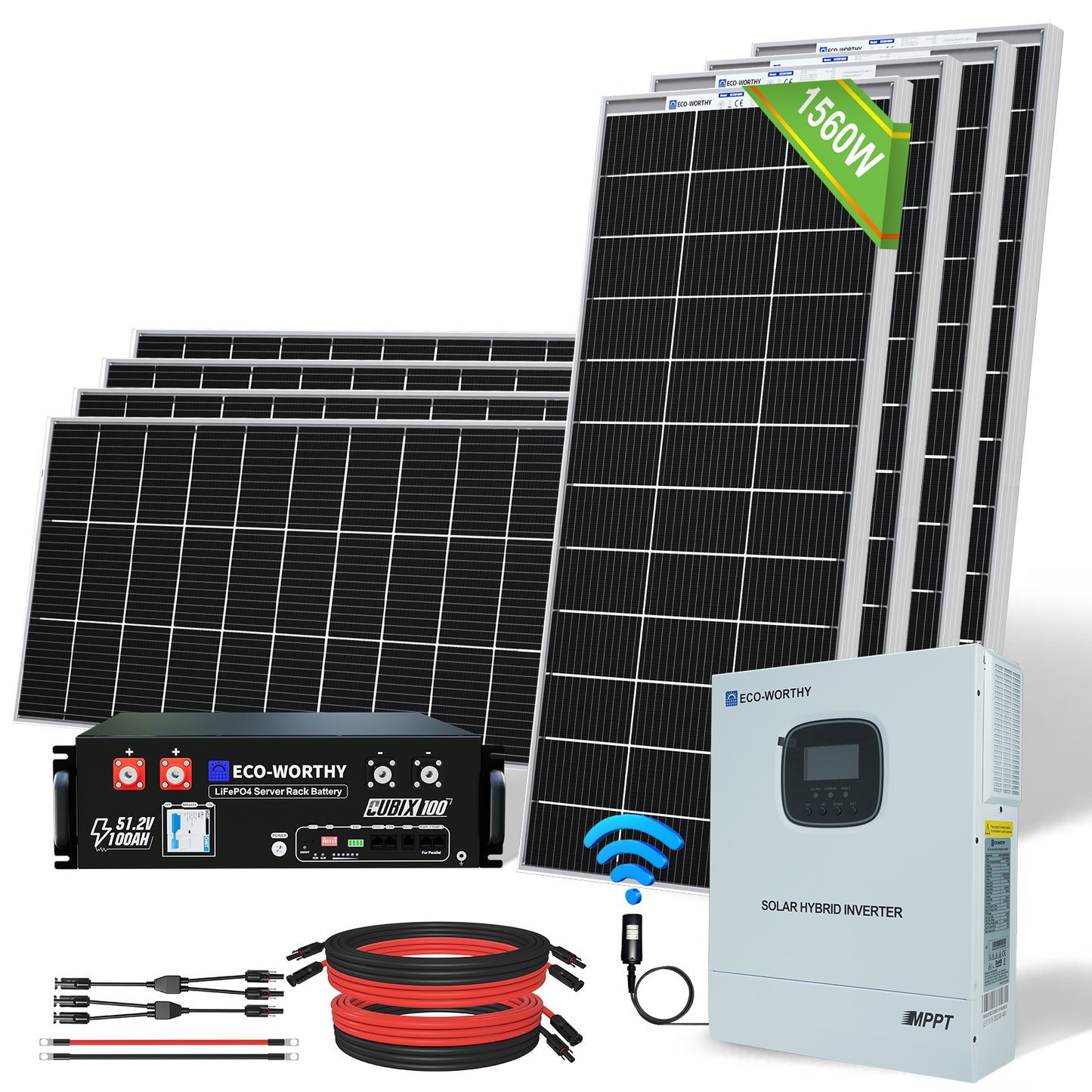

1560W 48V (8 x Bifazial 195 W), Komplettes MPPT-Off-Grid-Solar-Kit

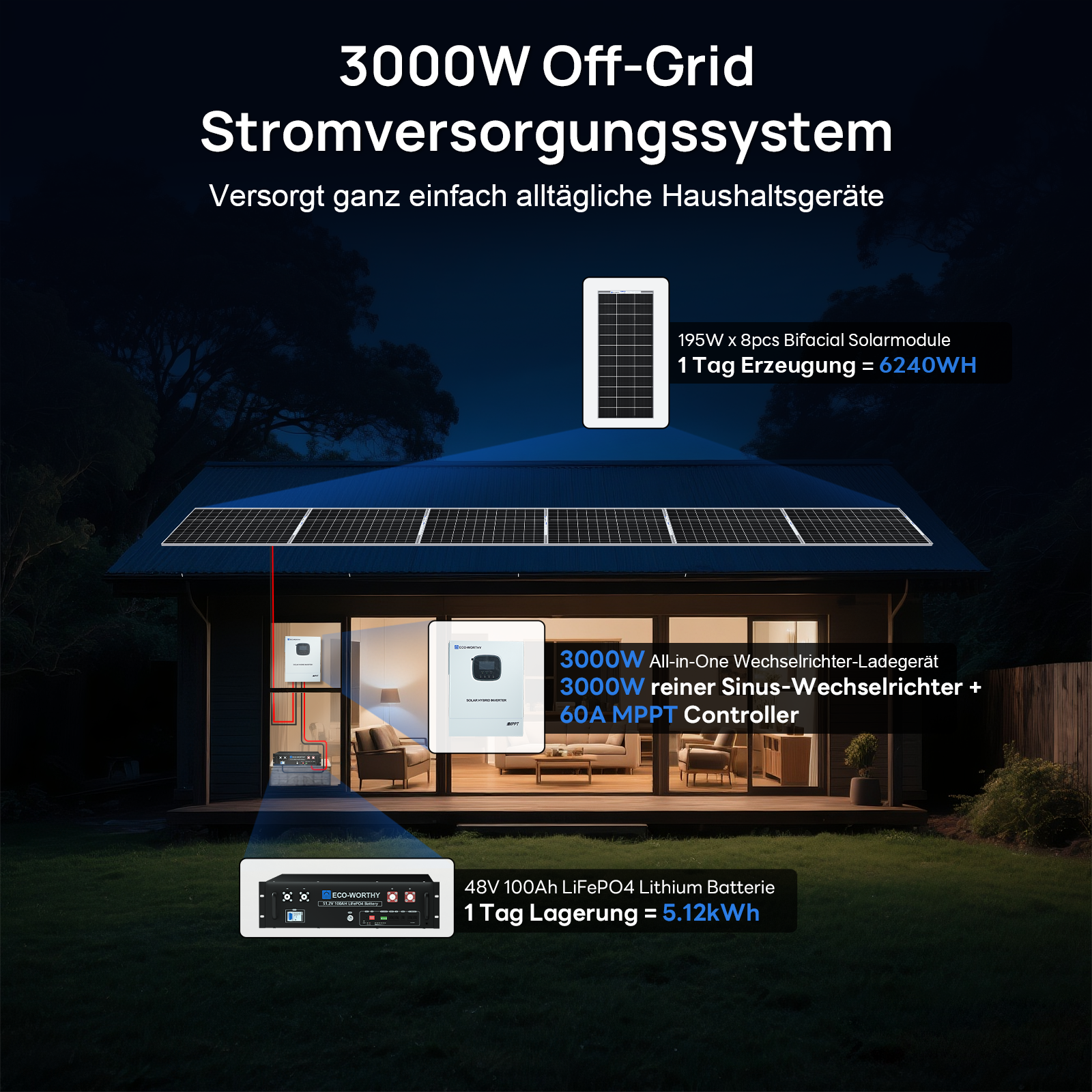

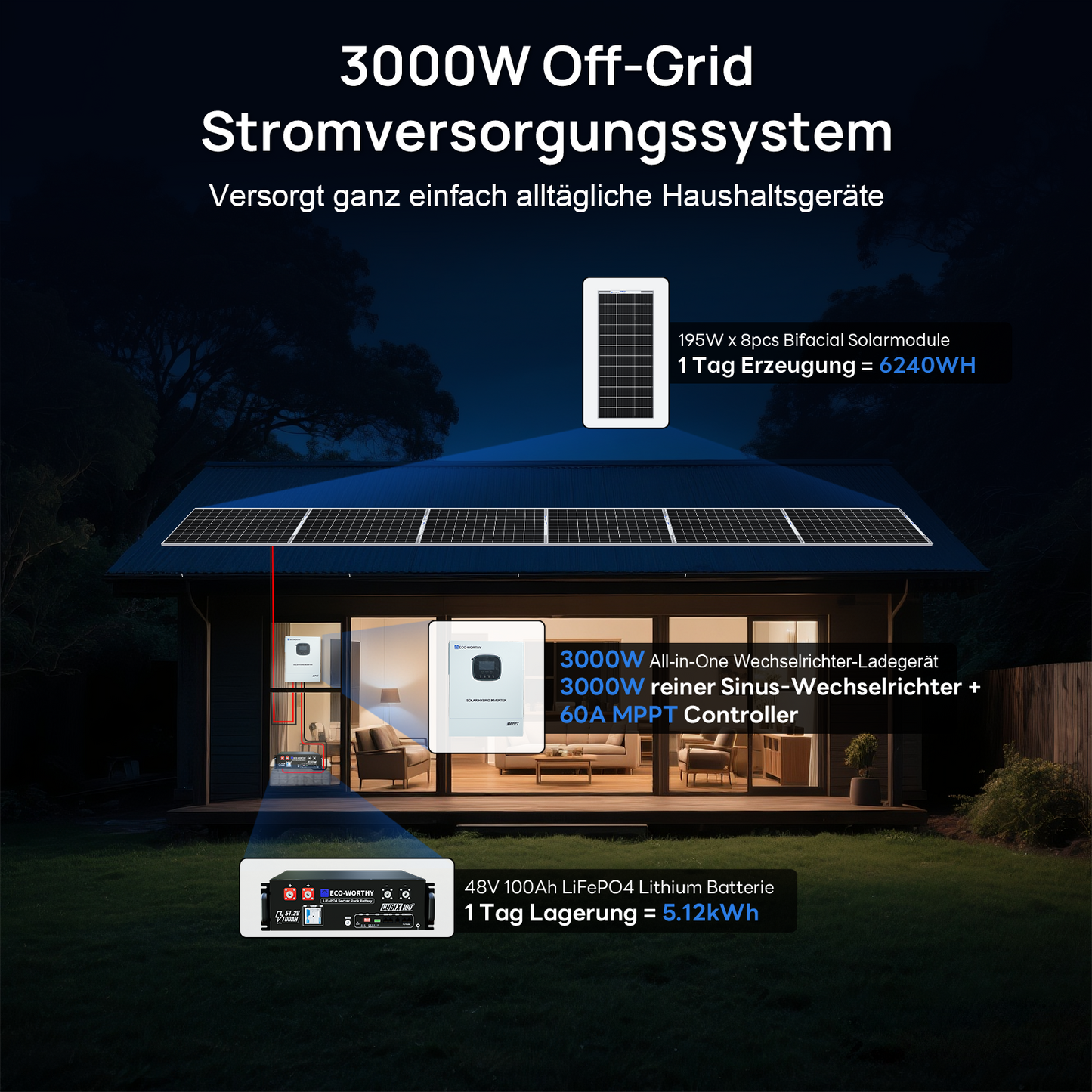

Wenn Effizienz, Zuverlässigkeit und ein günstiger Preis für Sie wichtig sind, ist das erweiterbare ECO-WORTHY 1560W 48V Solarkit die ideale Wahl. Dieses System kann ca. 5,12 kWh pro Tag erzeugen. Das ECO-WORTHY 195 Watt 12V Mono-Solarmodul ist absolut wetterfest und wurde professionell aus hochwertigen Komponenten gefertigt. 25 Jahre lineare Leistungsgarantie. Die ECO-WORTHY LiFePO4 Lithium-Eisenphosphat-Batterie bietet die doppelte Leistung, ist nur halb so schwer und hält 8-mal länger als eine versiegelte Blei-Säure-Batterie. Der 3000W reine Sinus-Wechselrichter liefert hochwertigen Wechselstrom, der dem Netzstrom entspricht, und schützt so Ihre Haushaltsgeräte und elektronischen Geräte. Er eignet sich besonders für empfindliche Elektrogeräte. Das ECO-WORTHY 1560W 48V Solarkit eignet sich für verschiedene Zwecke, z. B. für Häuser, Hütten usw. Egal für welchen Einsatzzweck Sie das Kit verwenden, Sie können sicher sein, ein hochwertiges System zu erwerben.

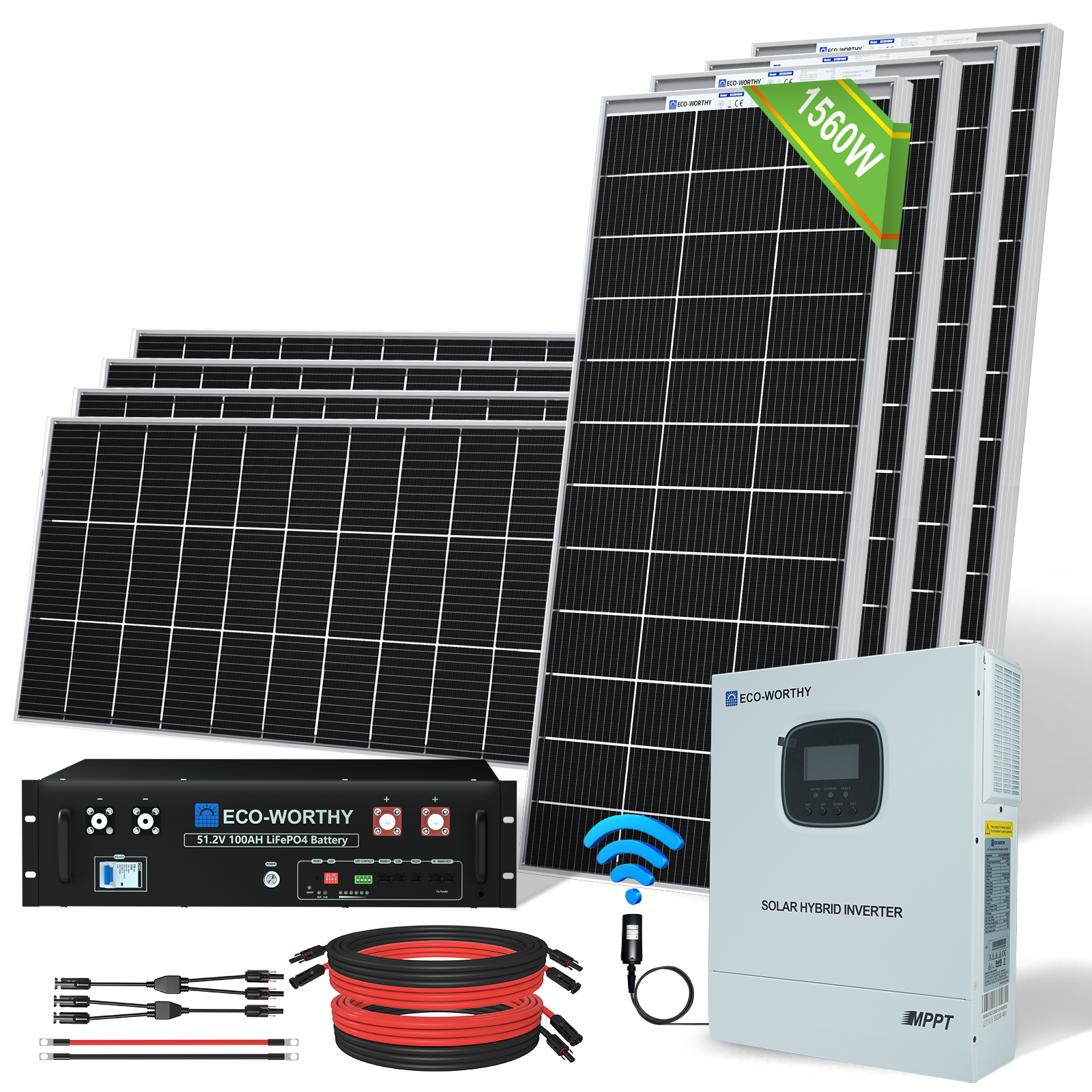

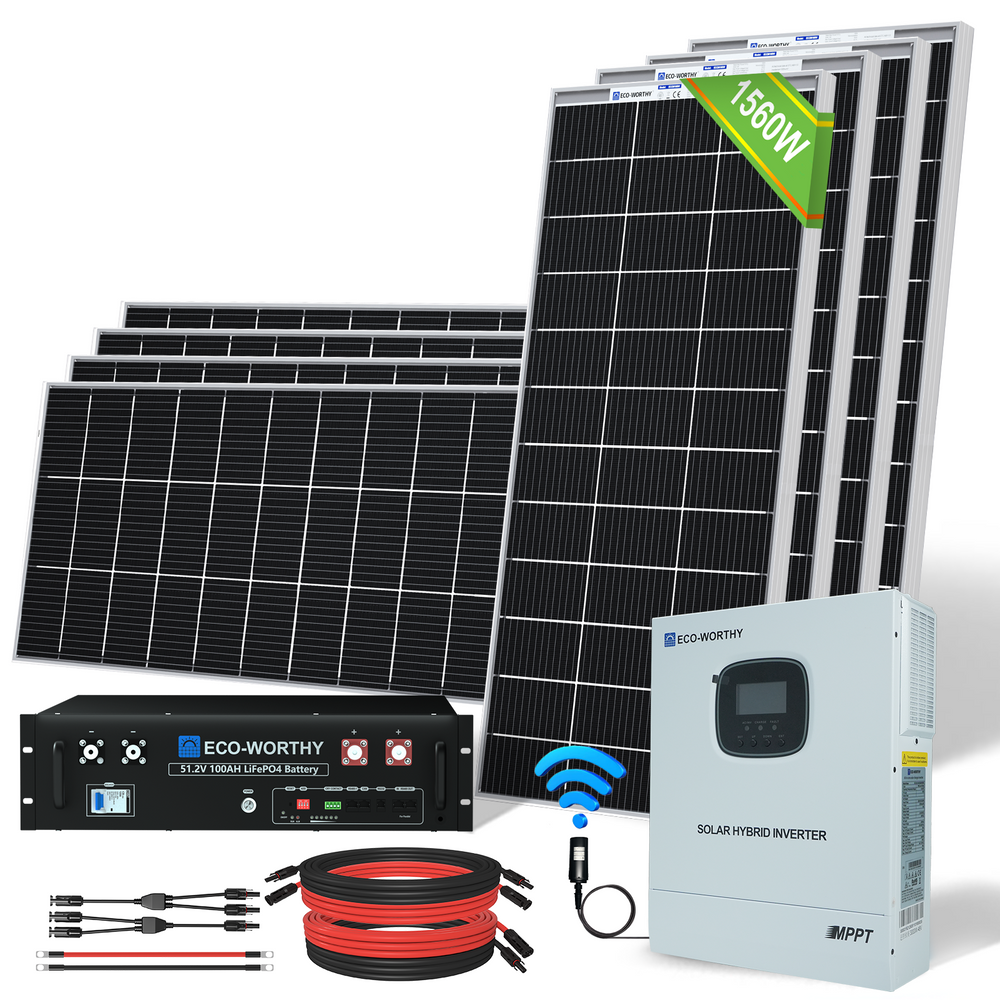

Lieferumfang
8x 195 Watt Bifazial Monokristallin Solarmodul
1x All-in-One-Wechselrichter mit integriertem 3000W 48V Wechselrichter mit reiner Sinuswelle und 60A Controller
1x 5M 12AWG Verlängerungskabel mit MC4
1x 5M 12AWG Verlängerungskabel mit MC4-MC4

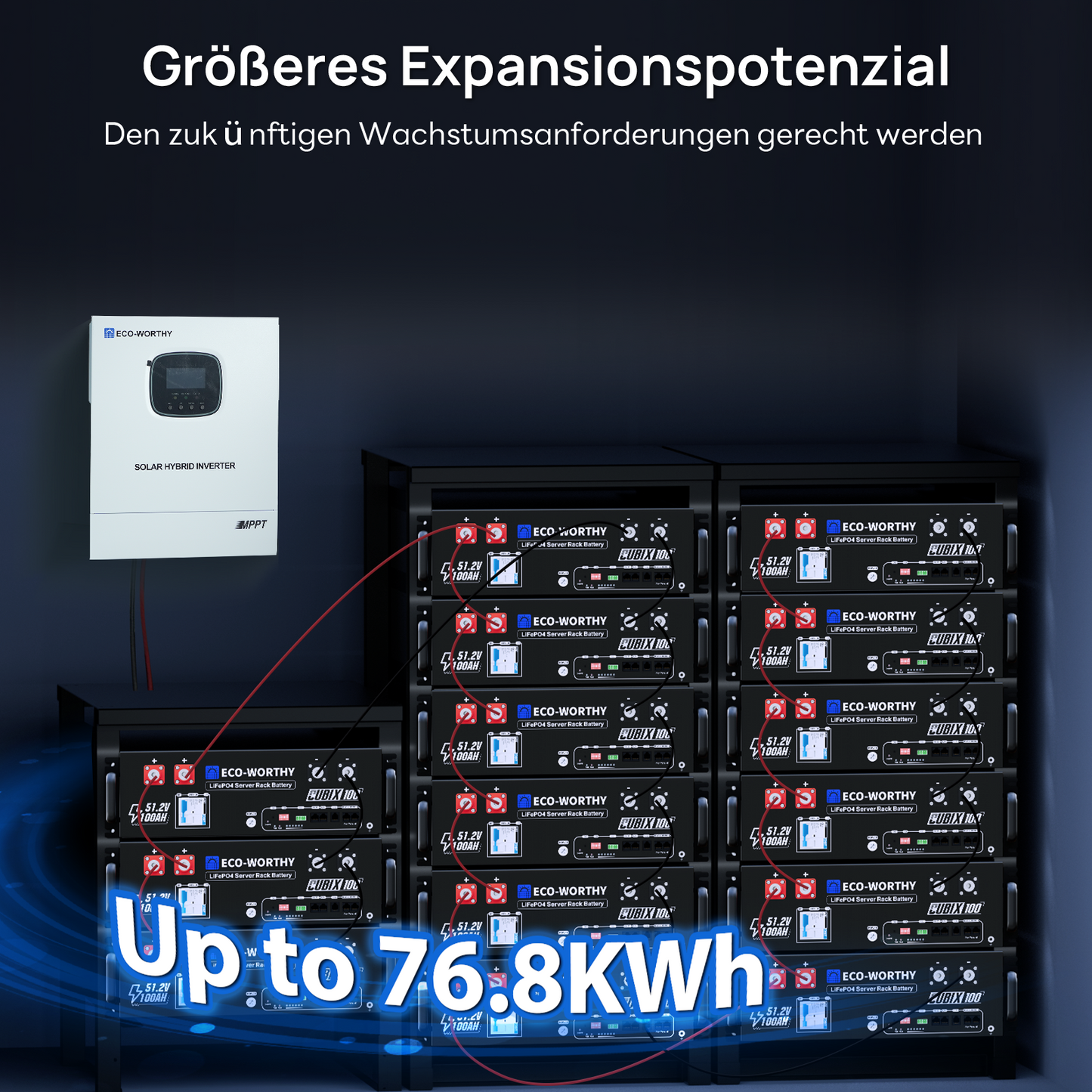

Batteriebank–10,24 kWh Lithium-Batteriebank
mit
1x12AWG 1 Paar Solar MC4 Y Parallel Abzweigverbinder MFF&FMM Paar
1 x 48 V (51,2 V) 100 Ah Server-Rack-Batterie

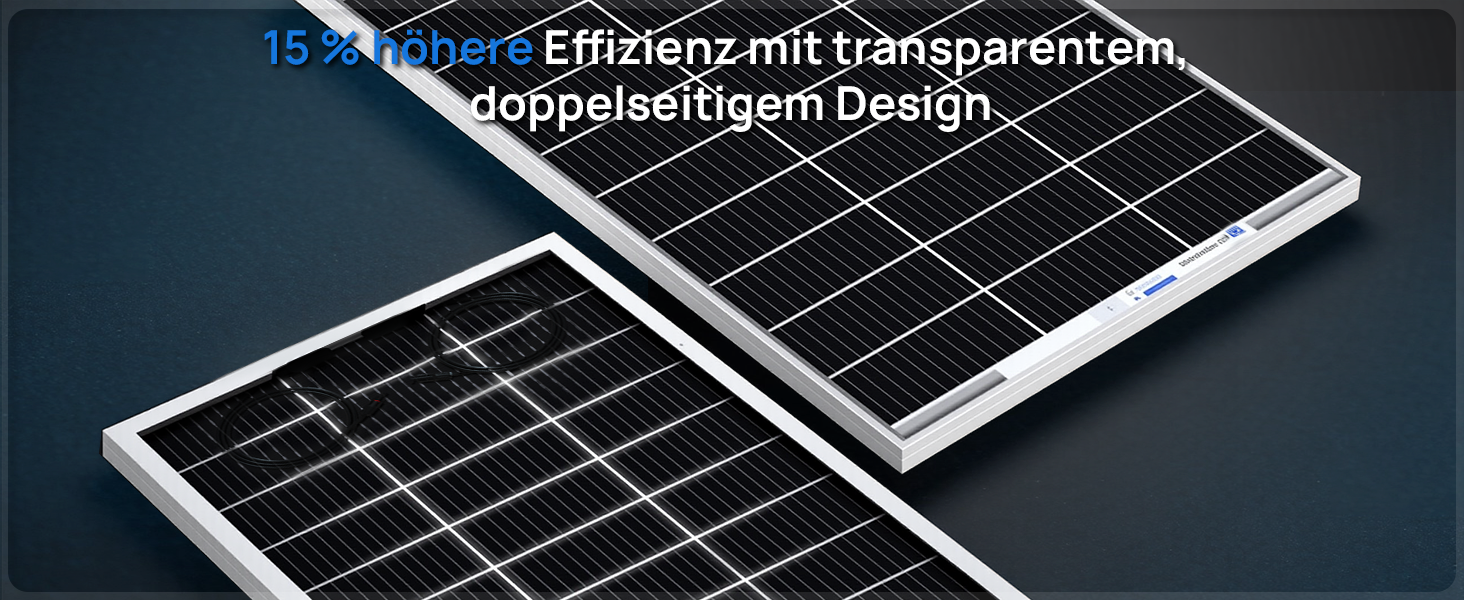

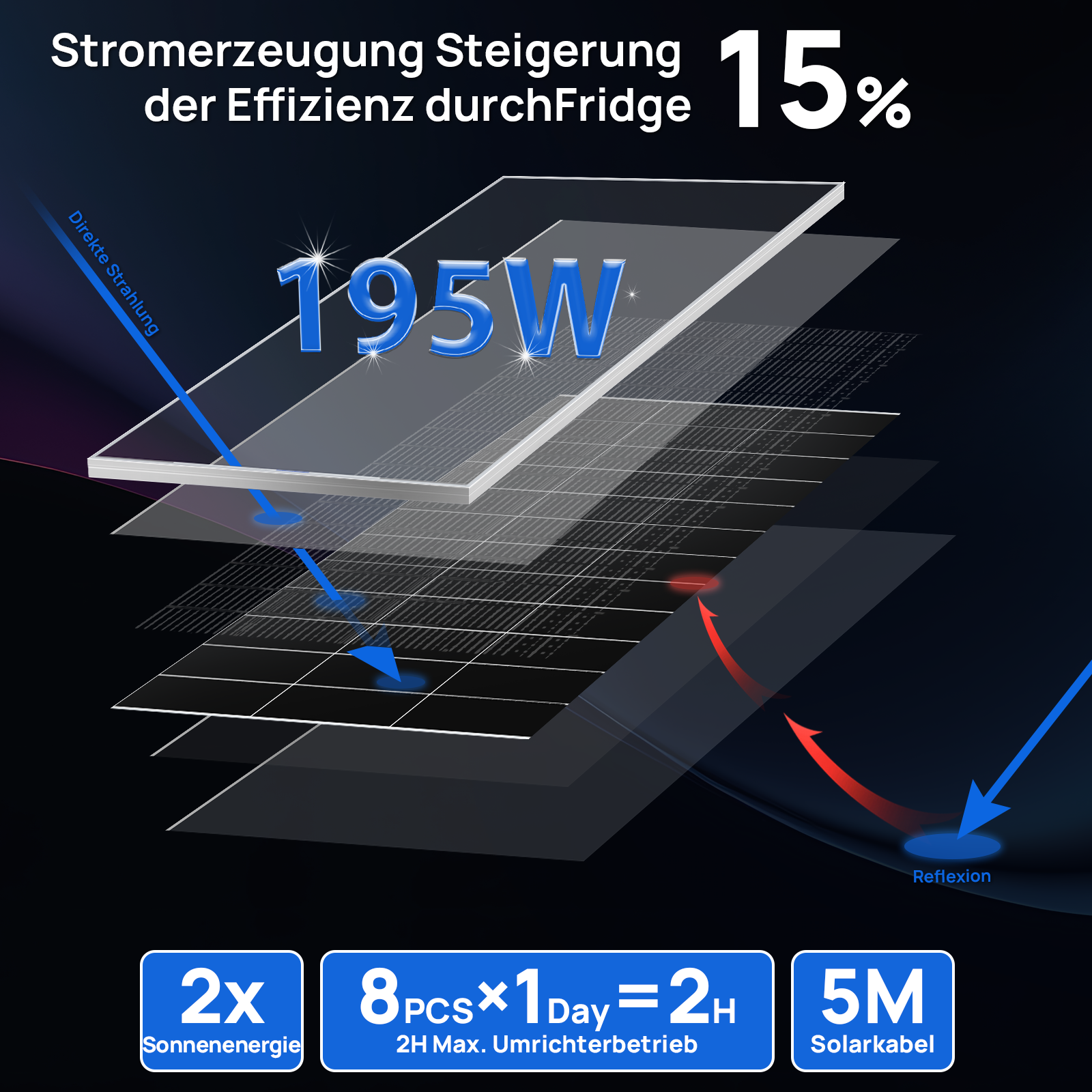

195Wp Bifazial Solarmodul Monokristallin

Nennleistung: 195Wp	Solarzelle: Monokristallin
Maximale/Spitzenspannung (Vmp): 19,8V	Leerlaufspannung (Voc): 23,7V
Kurzschlussstrom: 10,5A	Maximalstrom: 9,85A
Ausgangstoleranz: ±3%	Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃
Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃	Temperaturbereich: －40℃～ +85℃
Rahmen: Rahmen aus Aluminiumlegierung	Länge des Verlängerungskabels: 90cm
Gewicht: 9,29 kg	Größe: 1335 x 670 x 35 mm

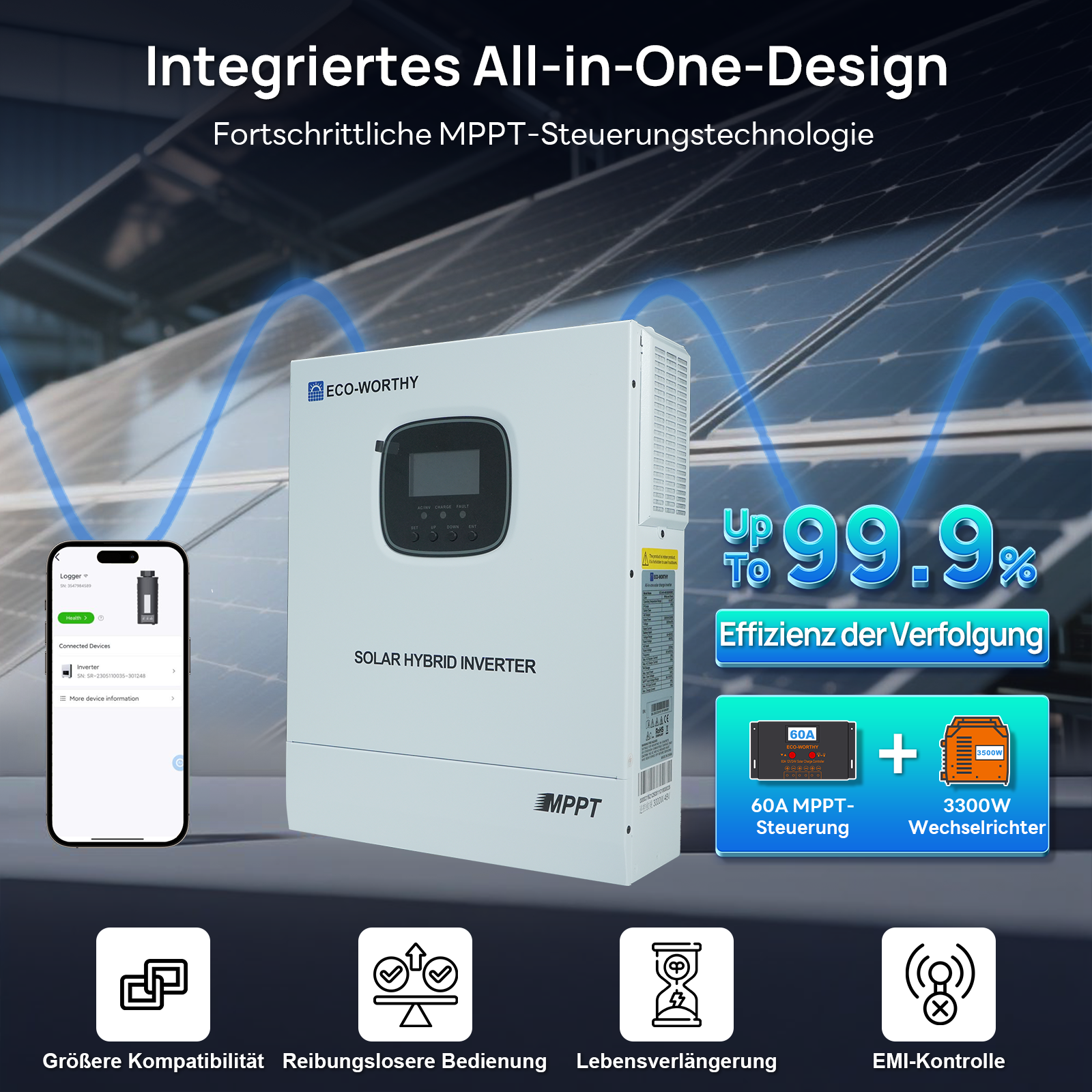

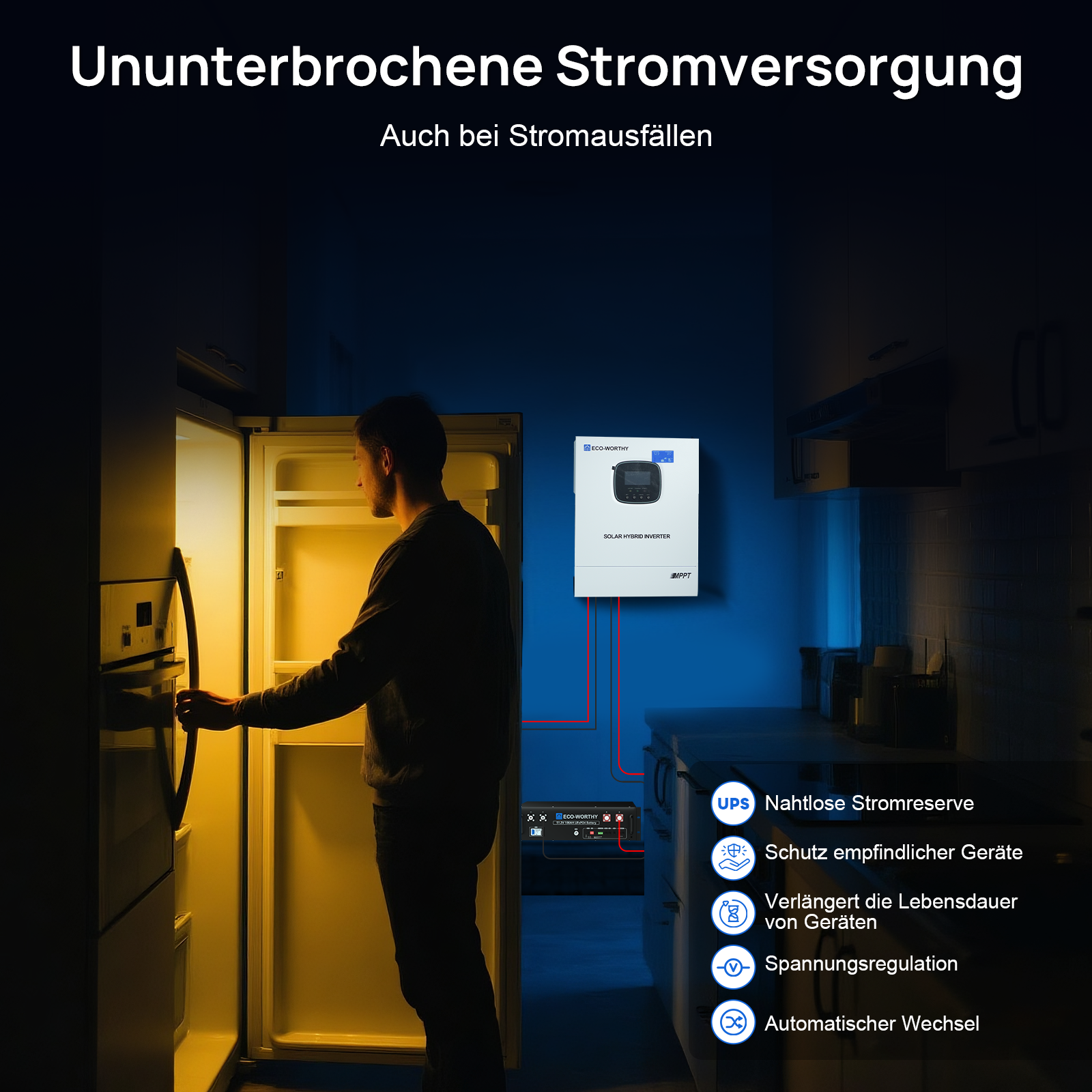

All-in-One-Wechselrichter mit integriertem 3000W 48V Wechselrichter mit reiner Sinuswelle und 60A Controller

Modelle: ECO3000W(SR)	AC-Nenneingangsspannung: 220/230 V AC
AC-Frequenz: 50 Hz/60 Hz (automatische Erkennung)	AC-Überlast-/Kurzschlussschutz: 10 ms (typisch)
AC-Maximaler Wirkungsgrad: Verfügbarer	AC-Maximaler Bypass-Überlaststrom: 30A
Ausgangsspannungswellenform: Reine Sinuswelle	Nennleistung (W): 3300W
Nennausgangsspannung (V AC): 230V AC	Ausgangsspannungsfehler: ± 5 %
Ausgangsfrequenzbereich (Hz): 50 Hz ± 0,3 Hz / 60 Hz ± 0,3 Hz	Wirkungsgrad: >92%
Größe (L x B x T): 378 mm x 280 mm x 103 mm	Gewicht (kg): 6,2

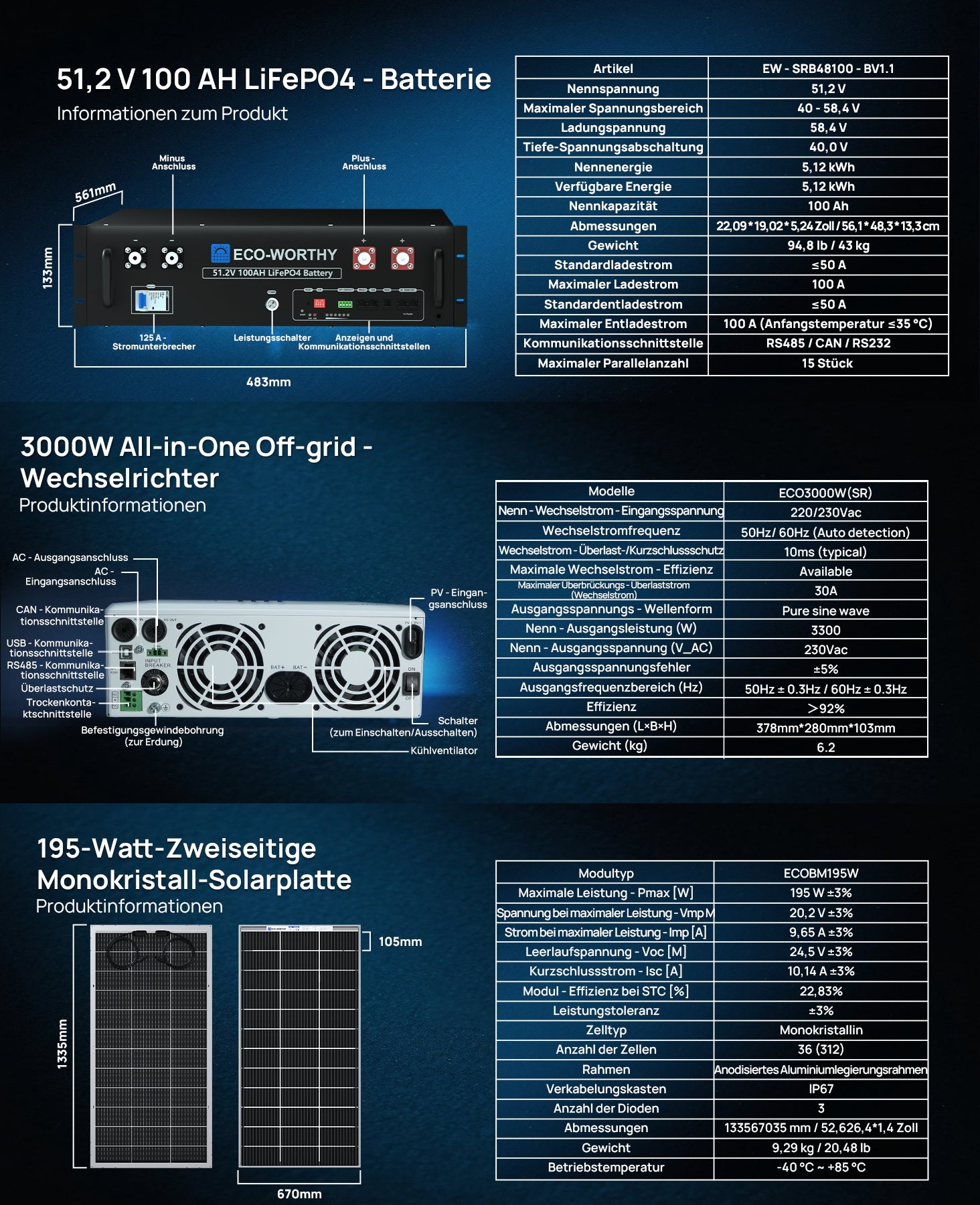

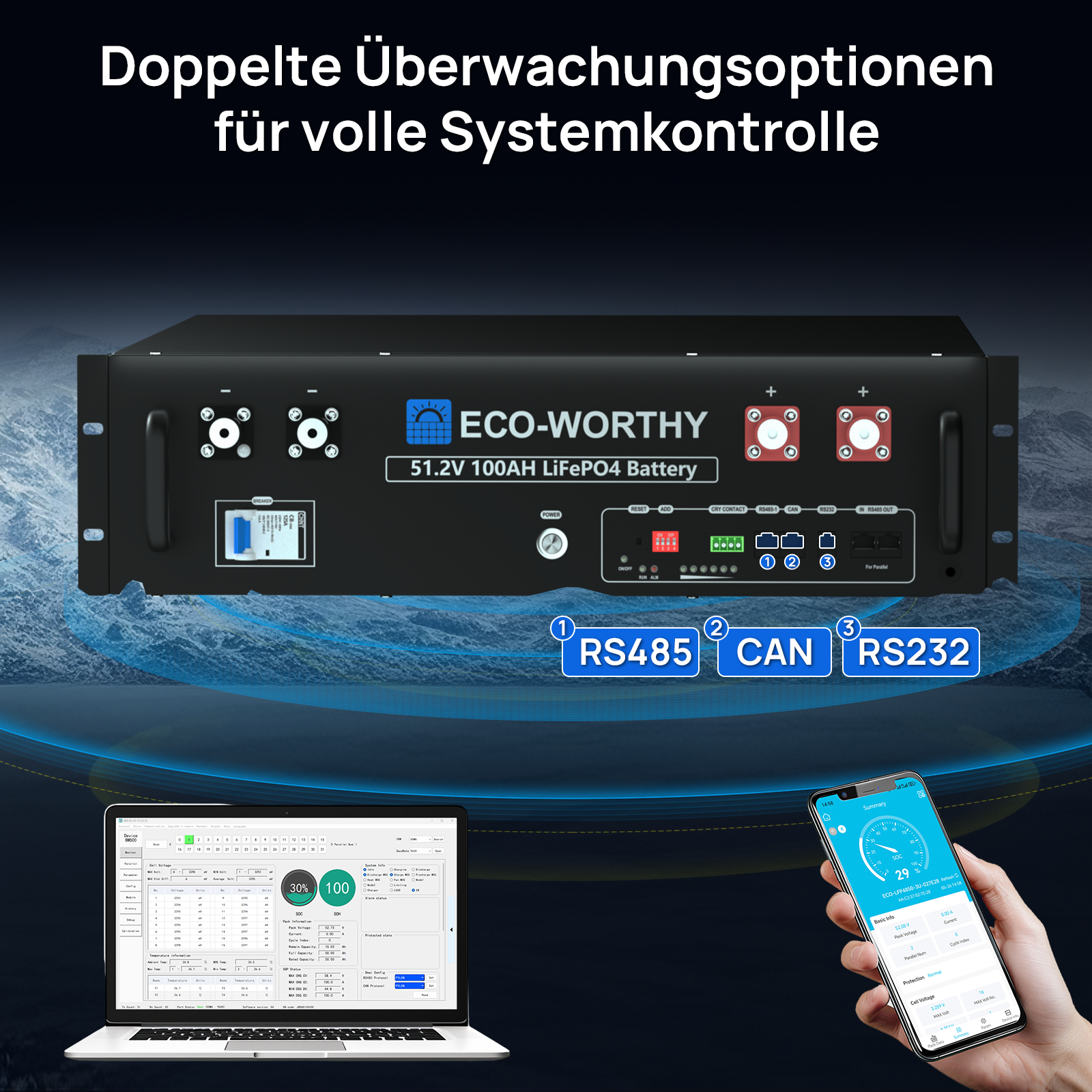

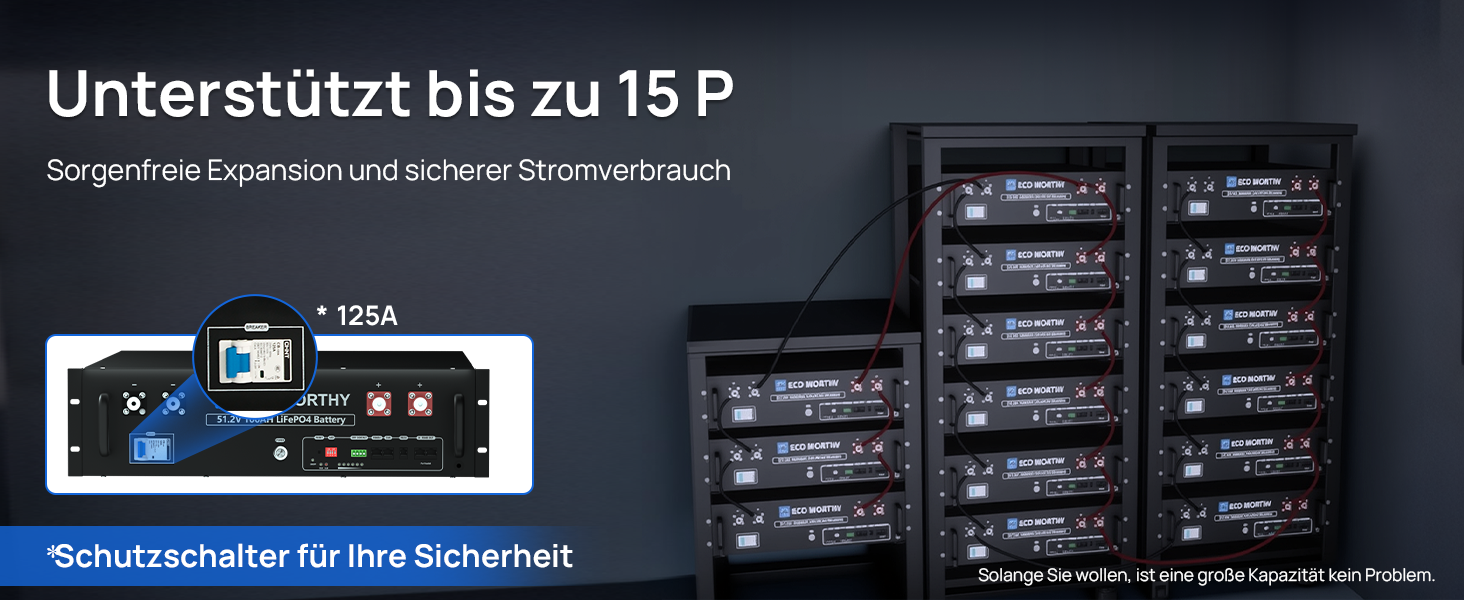

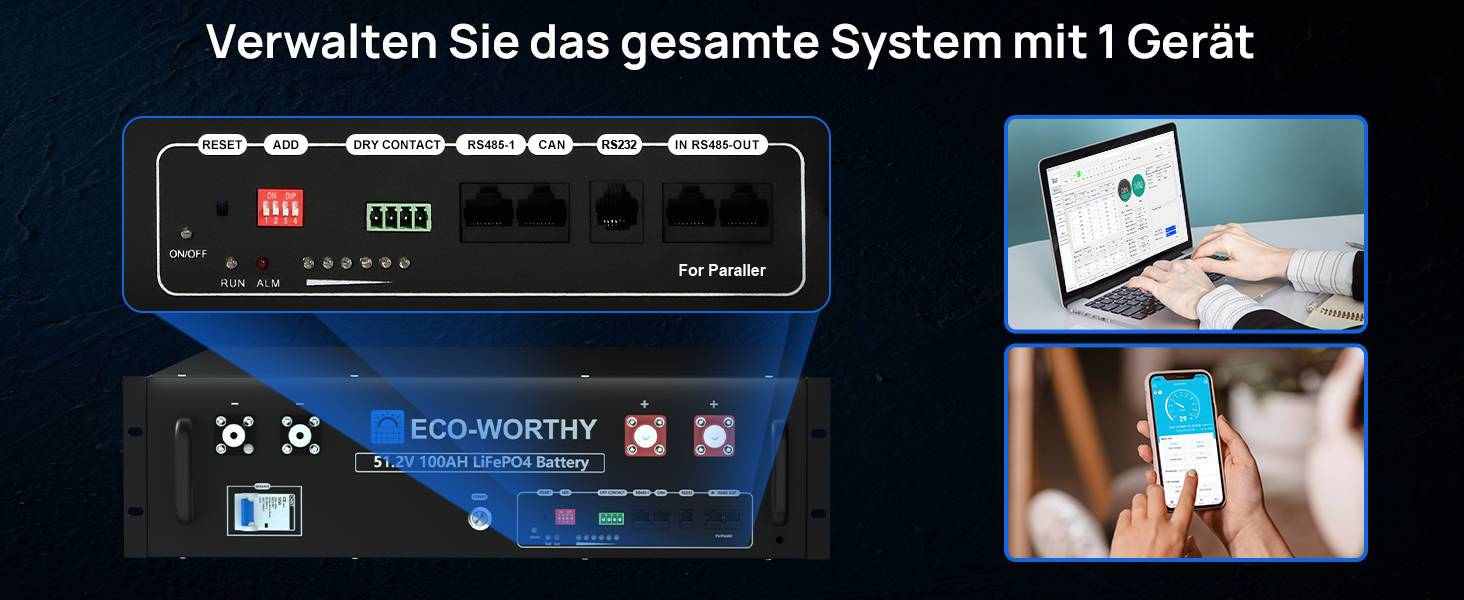

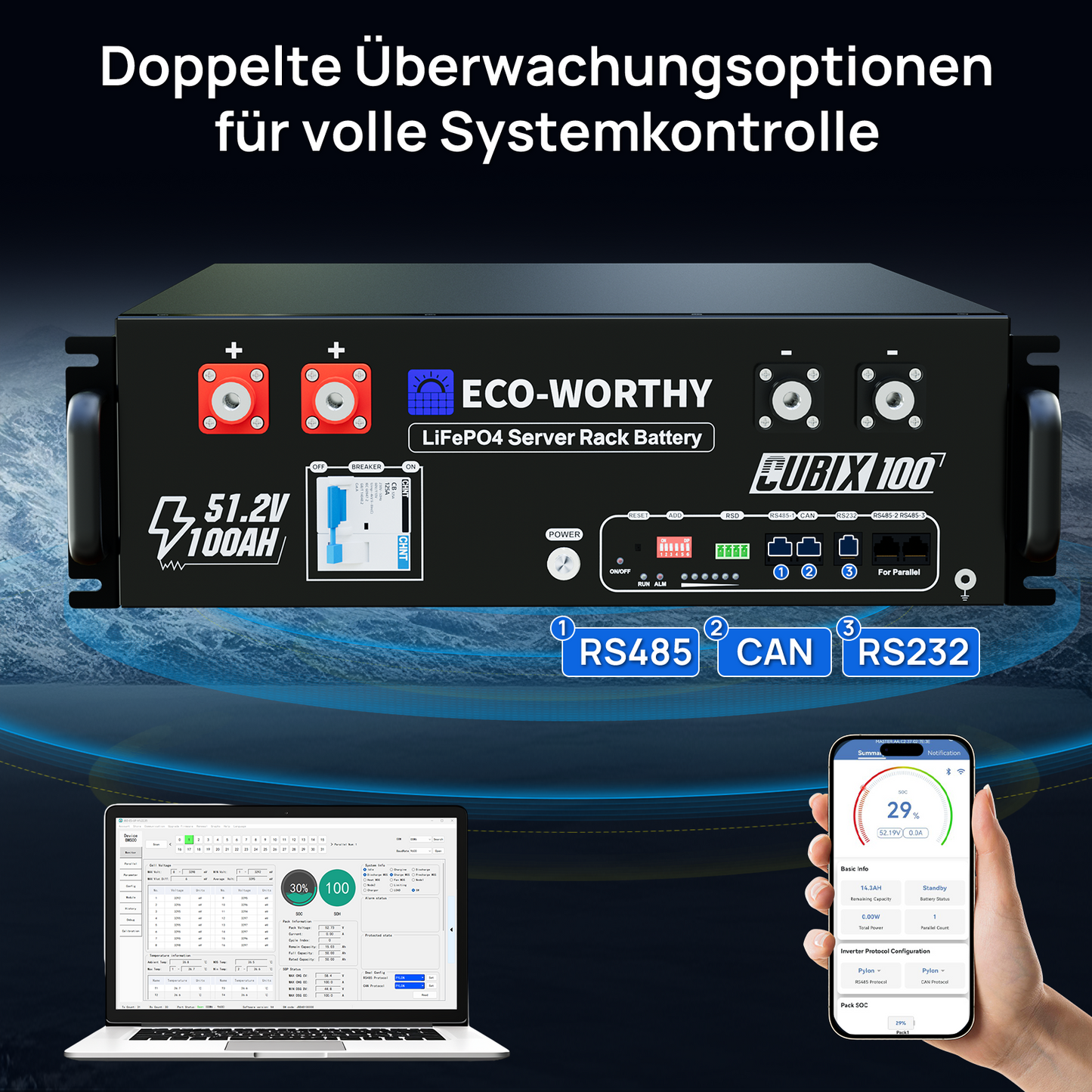

48 V (51,2 V) 100 Ah Server-Rack-Batterie

Batteriekapazität: 100Ah	Batterieleistung: 5120Wh
Batteriespannung: 51,2V	Maximaler Lade-/Entladestrom: 100A/100A
Ladetemperaturbereich: 0-55℃	Entladetemperaturbereich: ﹣20－55℃
Maximale Ladespannung: 58,4V	Spannungsbereich: 40~58V
Schraubengröße: M8	Batteriegröße: 561 * 483 * 133 mm
Batteriegewicht: 43 kg	Jede Batterie wird mit einem Paar Batterie-Parallelkabel geliefert



16,4 Fuß 12AWG-Kabel

Kabeltyp: Anschluss von Solarmodulen an Laderegler	Nennspannung: 600/1000V
Länge: 5 Meter (16 Fuß)	Leiter: Verzinnter Kupferdraht
AWG: 12	Normale Querschnittsfläche des Leiters (mm2): 4
Wasserdicht: IP 65-Schutz	Temperatur: -40 °F bis +185 °F
Anschluss: MC4	Gewicht: 0,742 kg
