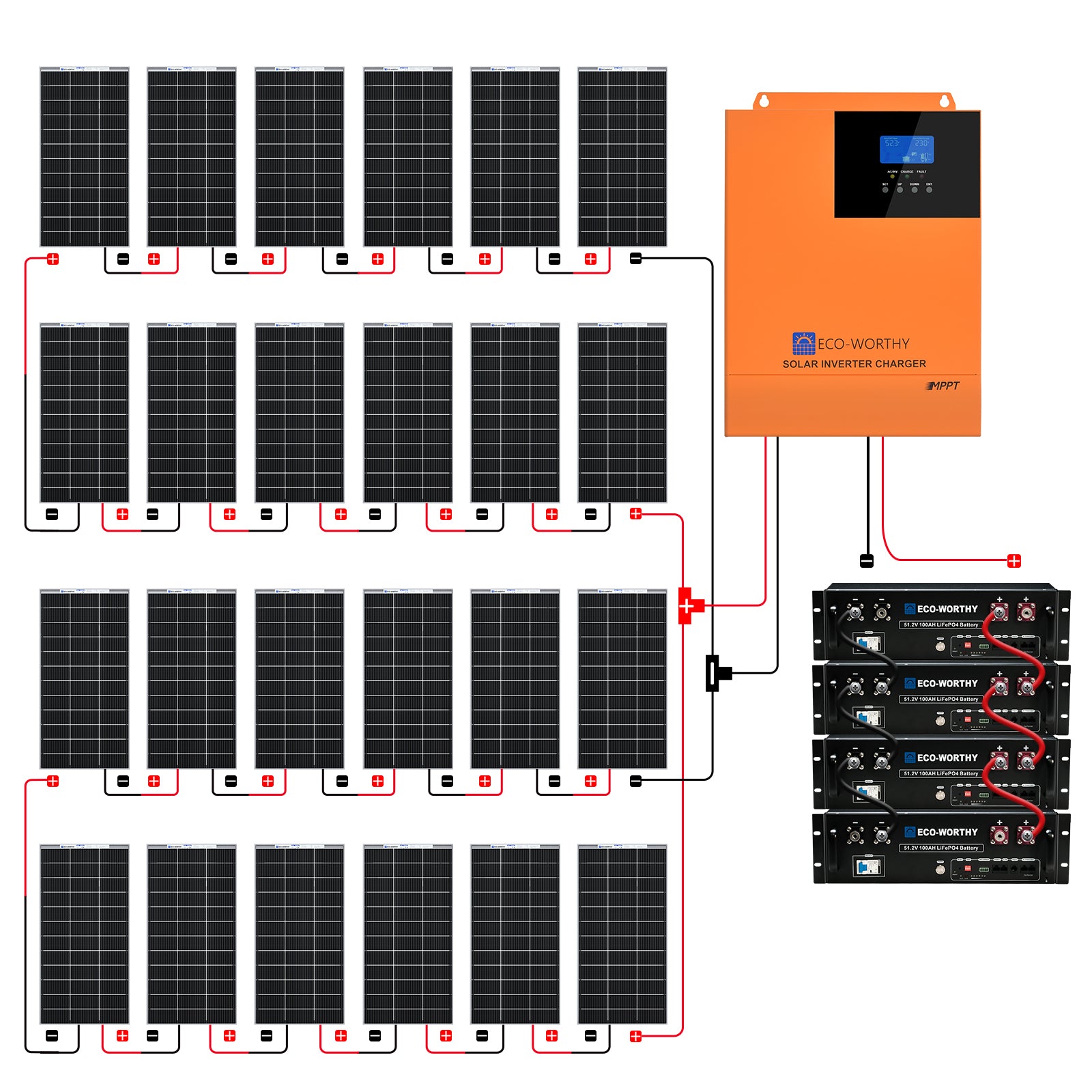

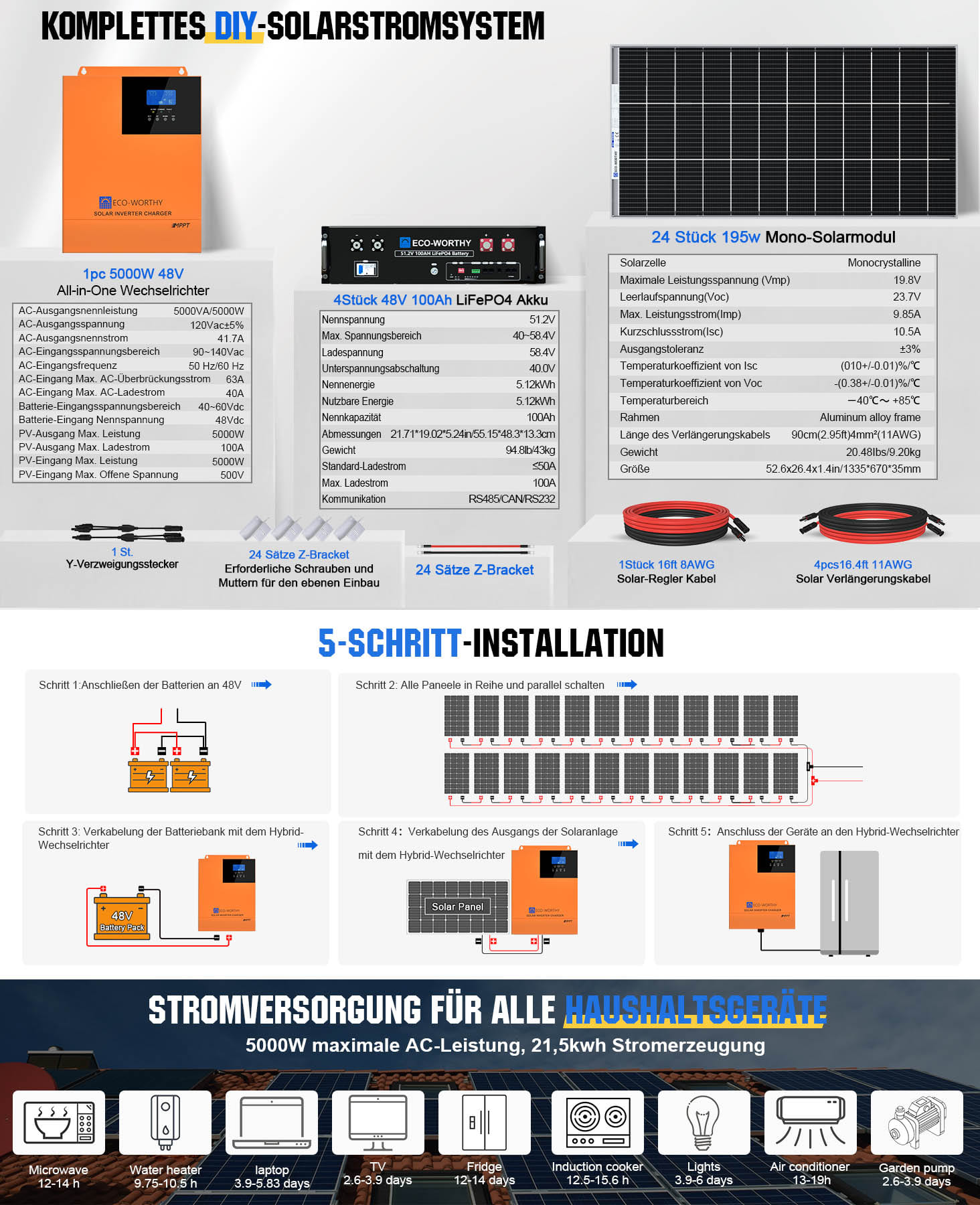

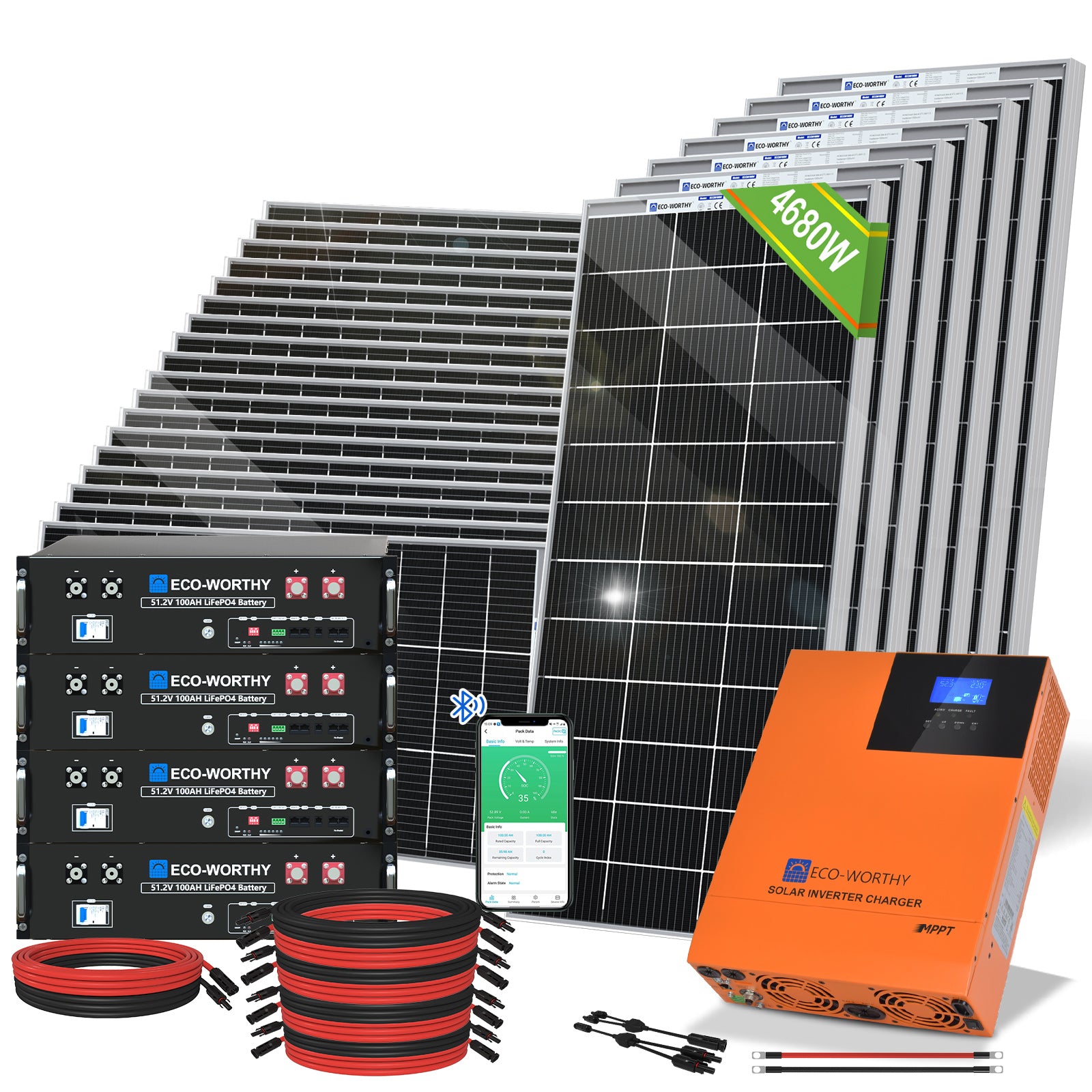

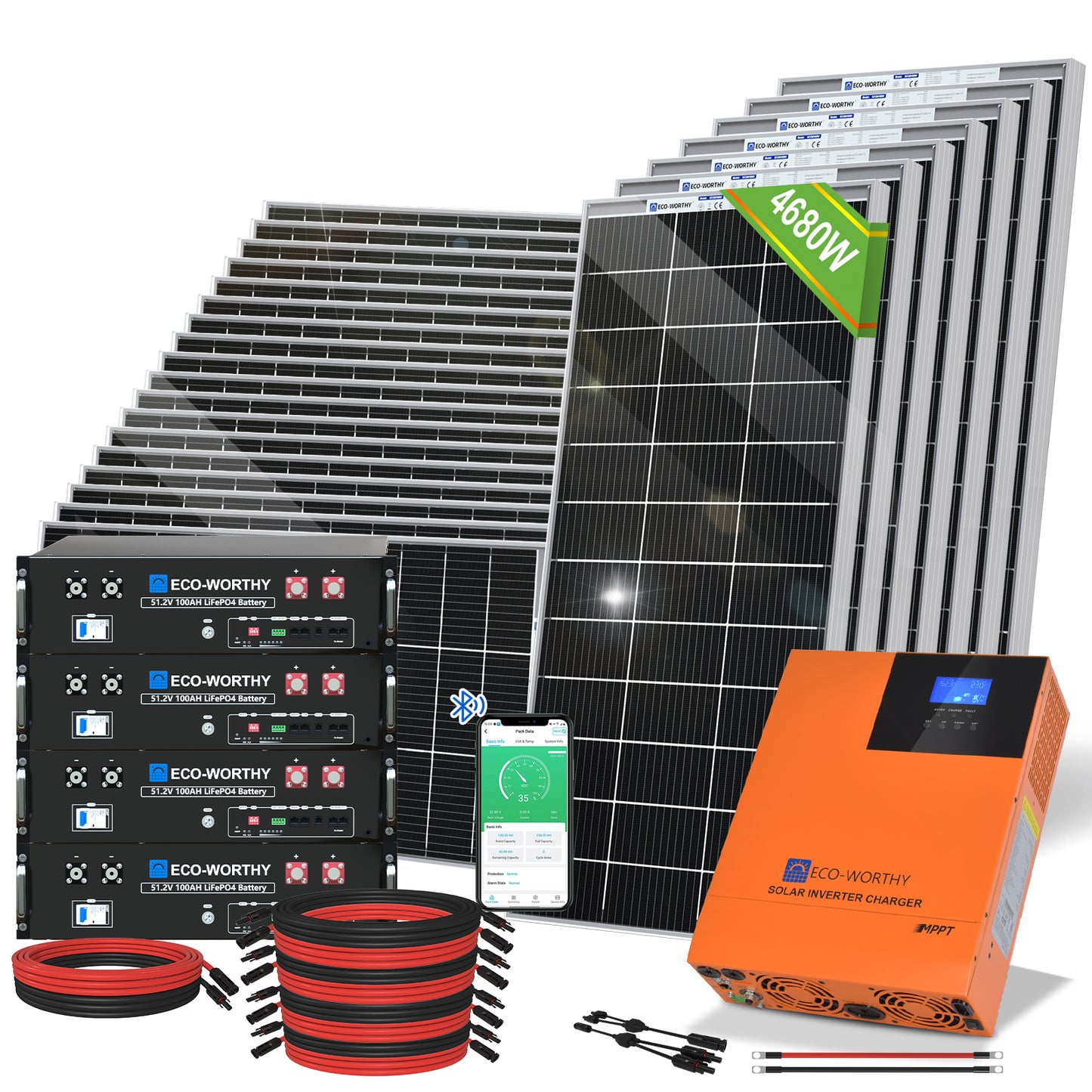

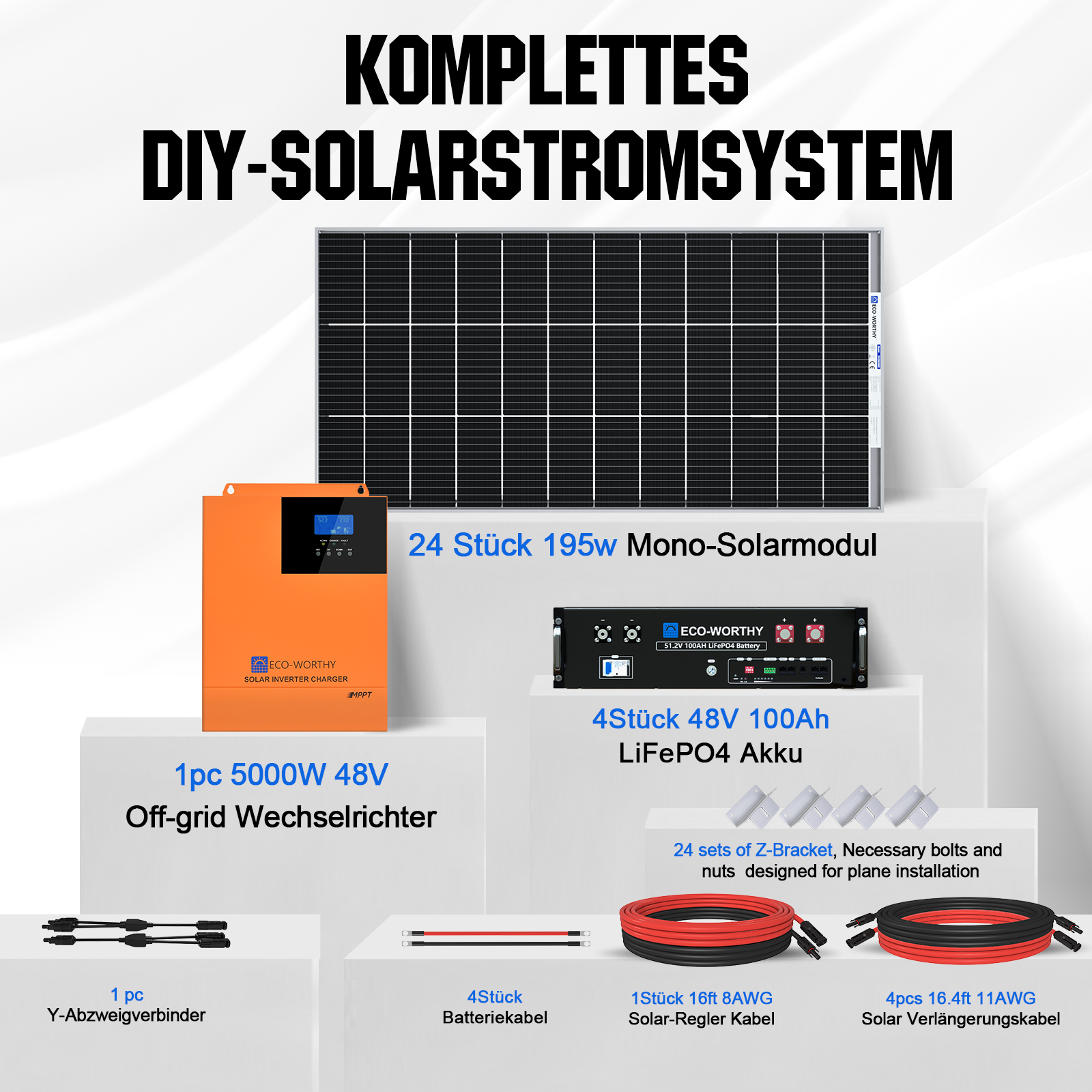

Lieferumfang
24x 195 Watt Bifazial Monokristallin Solarmodul
1x All-in-One-Wechselrichter (5000 W 48 V Wechselrichter + 80 A MPPT-Controller)
1x 5M 12AWG Verlängerungskabel mit MC4
4 x 5 m 12AWG-Verlängerungskabel mit MC4-MC4
1 Paar 12AWG MFF- und FMM-Parallel-Y-Typ MC4-Solarstecker
Batteriebank–20,48 kWh Lithium-Batteriebank
mit
4 x 1,5 m Tray-Kabel
4 x 48 V (51,2 V) 100 Ah Server-Rack-Batterie

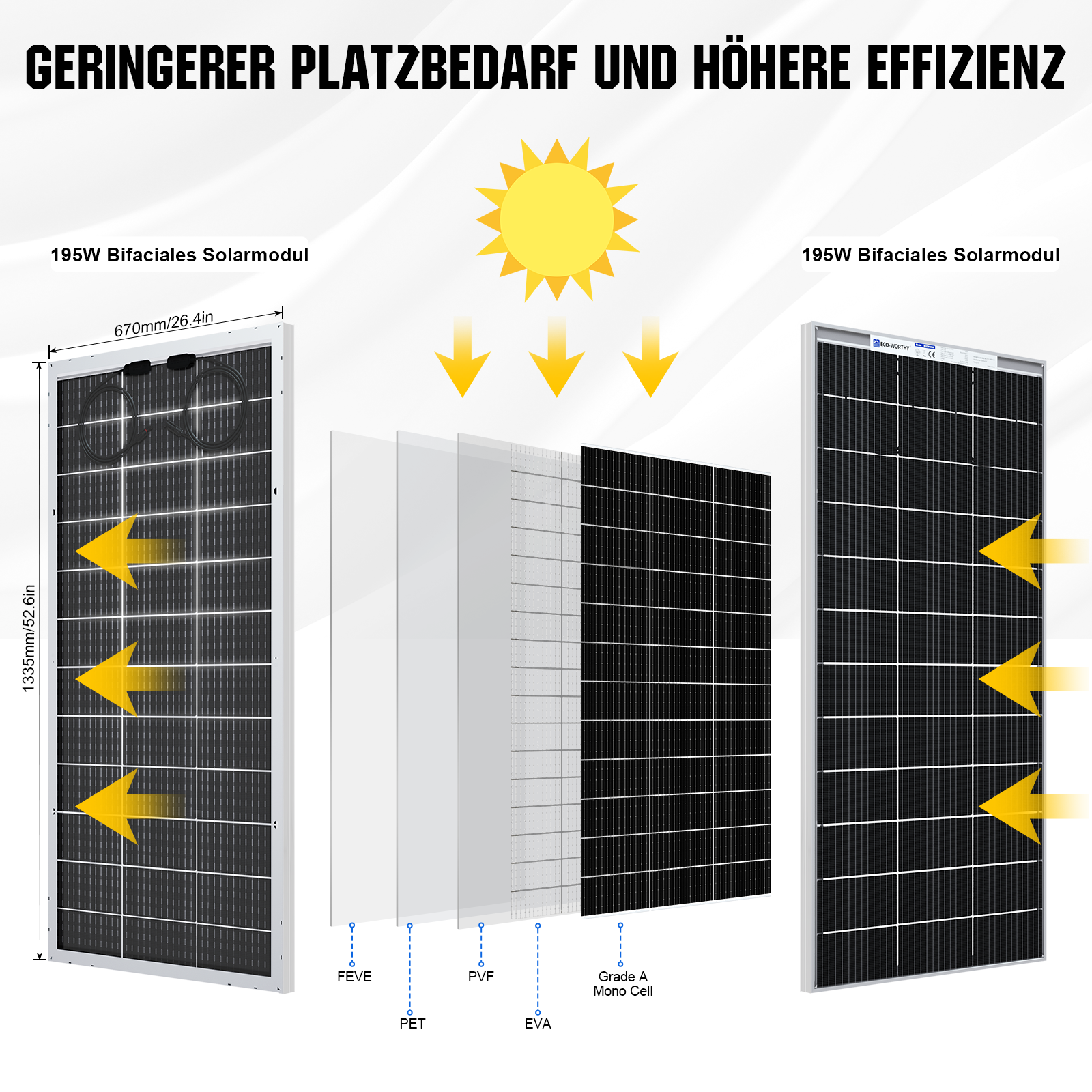

195Wp Bifazial Solarmodul Monokristallin
| Nennleistung: 195Wp |
Solarzelle: Monokristallin |
| Maximale/Spitzenspannung (Vmp): 19,8V |
Leerlaufspannung (Voc): 23,7V |
| Kurzschlussstrom: 10,5A |
Maximalstrom: 9,85A |
| Ausgangstoleranz: ±3% |
Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃ |
| Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃ |
Temperaturbereich: －40℃～ +85℃ |
| Rahmen: Rahmen aus Aluminiumlegierung |
Länge des Verlängerungskabels: 90cm |
| Gewicht: 9,29 kg |
Größe: 1335 x 670 x 35 mm |

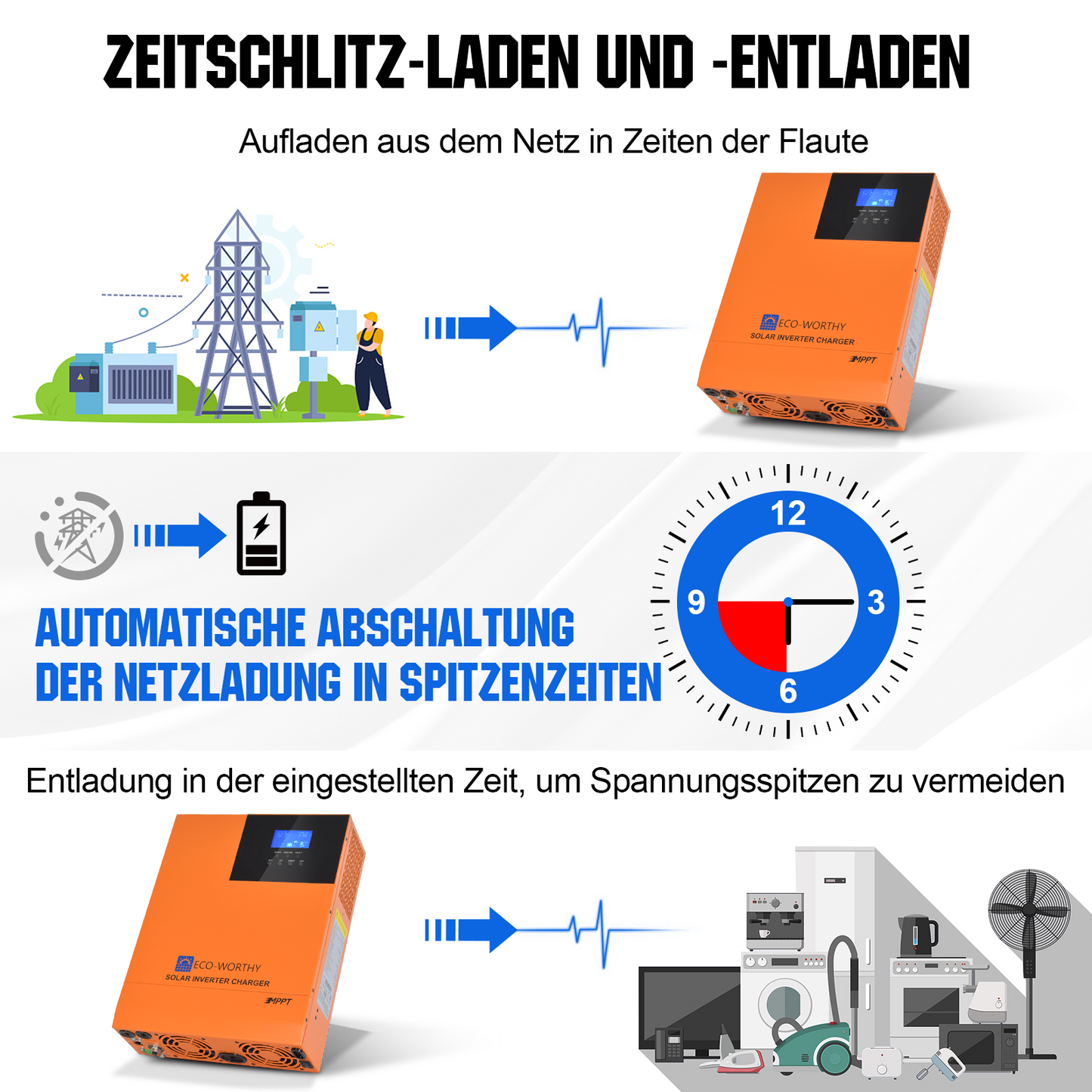

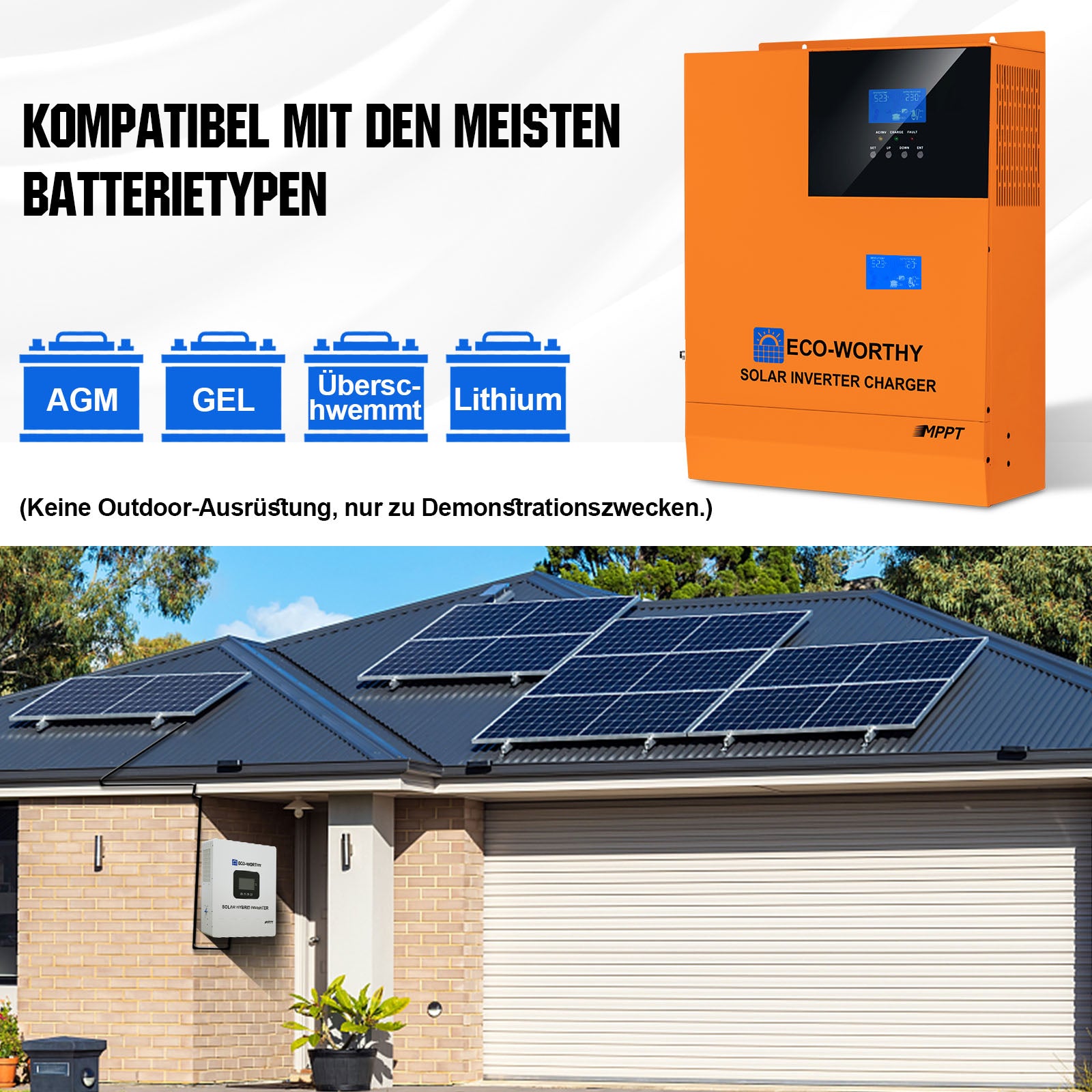

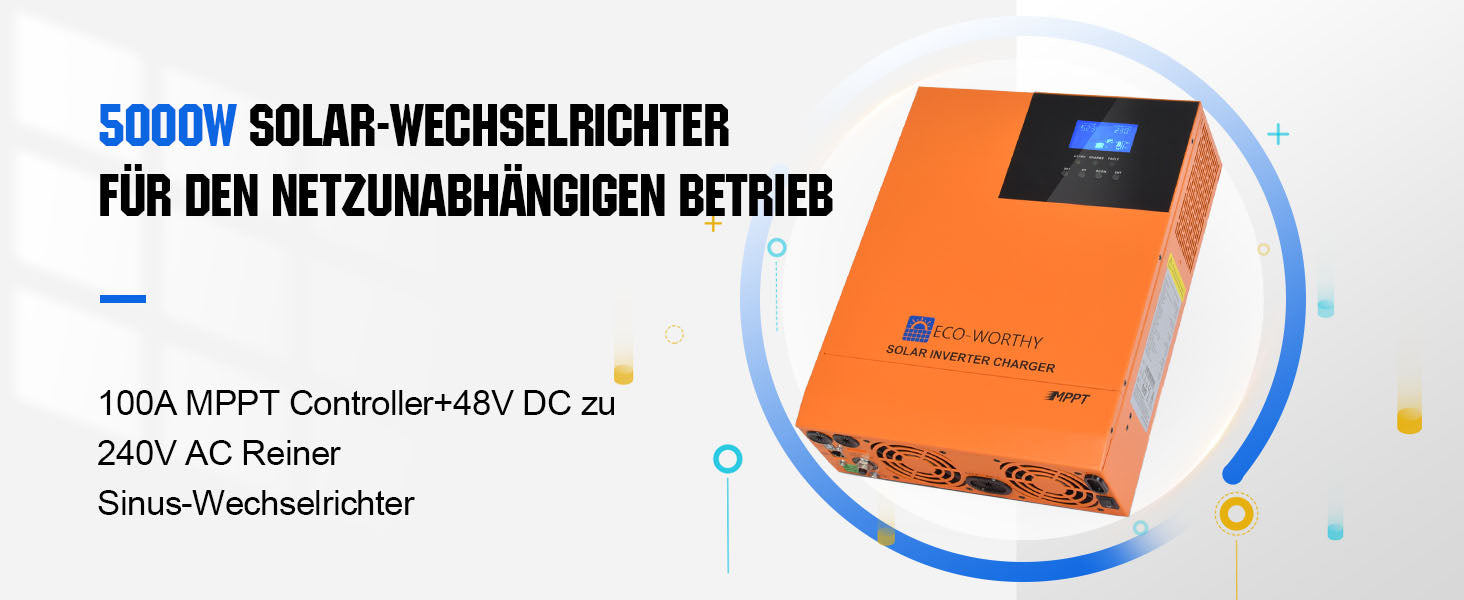

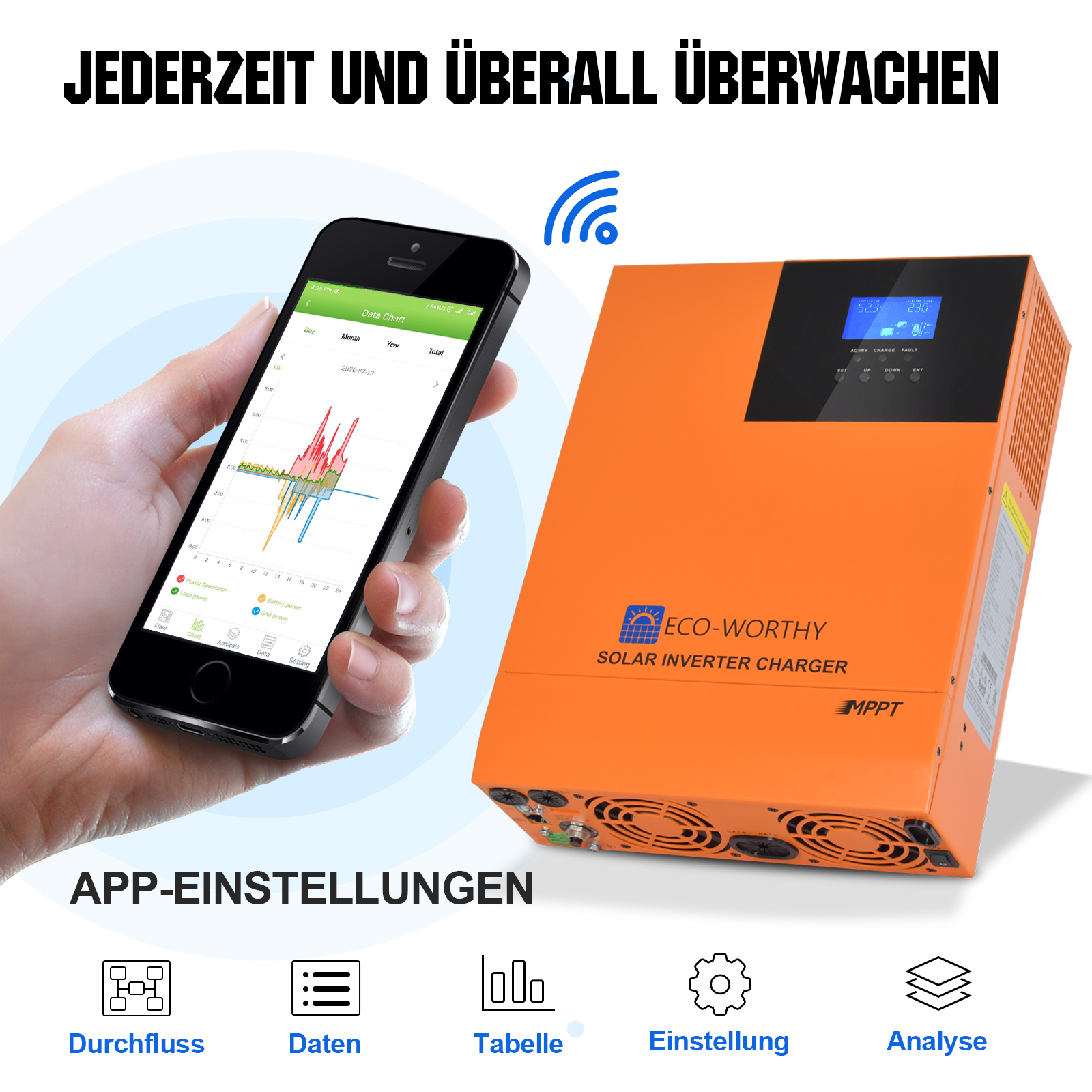

5000W 48V All-in-One-Wechselrichter mit 80 A MPPT
| Solarlademodus |
|
| PV-Ladestrombereich: 0–80 A |
MPPT-Spannungsbereich: 120–450 VDC |
| Max. Eingangsleistung: 4400 W |
Batteriespannungsbereich: 40–60 VDC |
| Invert-Modus |
|
| Ausgangswellenform: Reine Sinuswelle |
Nennleistung: 5000 W |
|
Nenneingangsspannung der Batterie:
48 V
|
Nennleistung: 220 V AC, 50Hz/60 Hz |
| Spitzenleistung: 6000 W |
|
| AC/Netzlademodus |
|
| Nenneingangsleistung: (170–280 V AC) ±2 % 50 Hz/60 Hz (automatische Erkennung) |
|

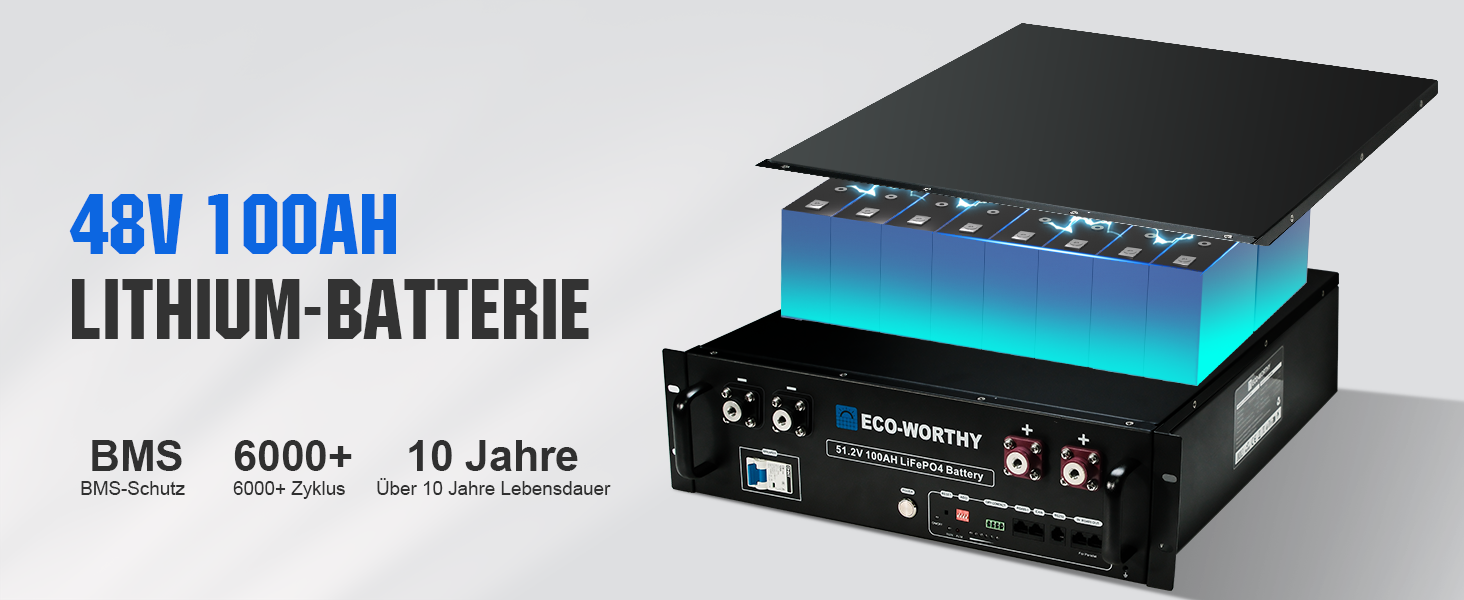

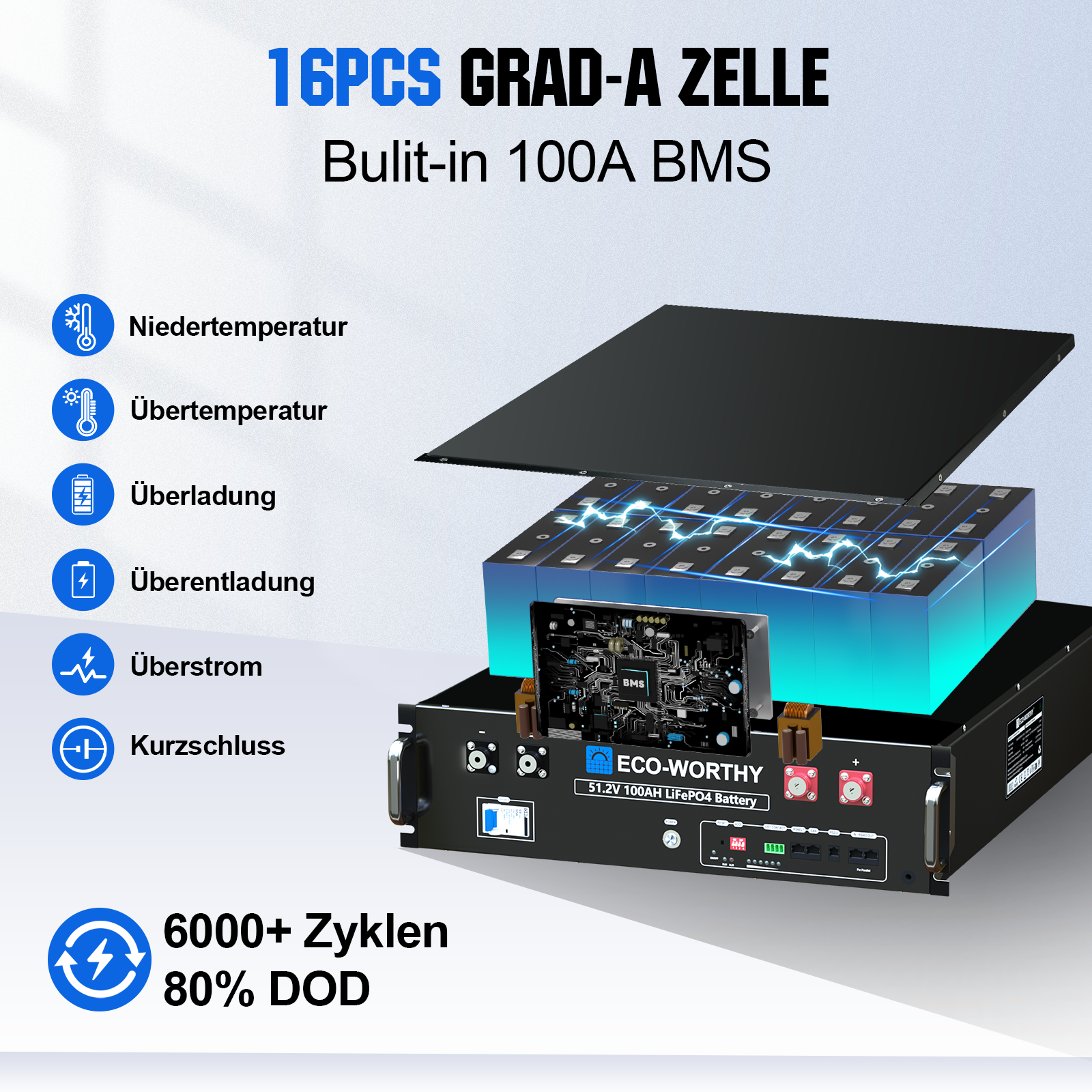

48 V (51,2 V) 100 Ah Server-Rack-Batterie
| Batteriekapazität: 100Ah |
Batterieleistung: 5120Wh |
| Batteriespannung: 51,2V |
Maximaler Lade-/Entladestrom: 100A/100A |
| Ladetemperaturbereich: 0-55℃ |
Entladetemperaturbereich: ﹣20－55℃ |
| Maximale Ladespannung: 58,4V |
Spannungsbereich: 40~58V |
| Schraubengröße: M8 |
Batteriegröße: 561 * 483 * 133 mm |
| Batteriegewicht: 43 kg |
Jede Batterie wird mit einem Paar Batterie-Parallelkabel geliefert |
16,4 Fuß 12AWG-Kabel
| Kabeltyp: Anschluss von Solarmodulen an Laderegler |
Nennspannung: 600/1000V |
| Länge: 5 Meter (16 Fuß) |
Leiter: Verzinnter Kupferdraht |
| AWG: 12 |
Normale Querschnittsfläche des Leiters (mm2): 4 |
| Wasserdicht: IP 65-Schutz |
Temperatur: -40 °F bis +185 °F |
| Anschluss: MC4 |
Gewicht: 0,742 kg |
