ECO-WORTHY 3900 Wp 48V Off-Grid Komplettset Solaranlage können für verschiedene Zwecke verwendet werden. Darunter Hütten, Garten und Wohnmobile. Unabhängig davon, wofür das Kit verwendet wird, können Sie sicher sein, dass Sie ein Qualitätssystem erwerben.

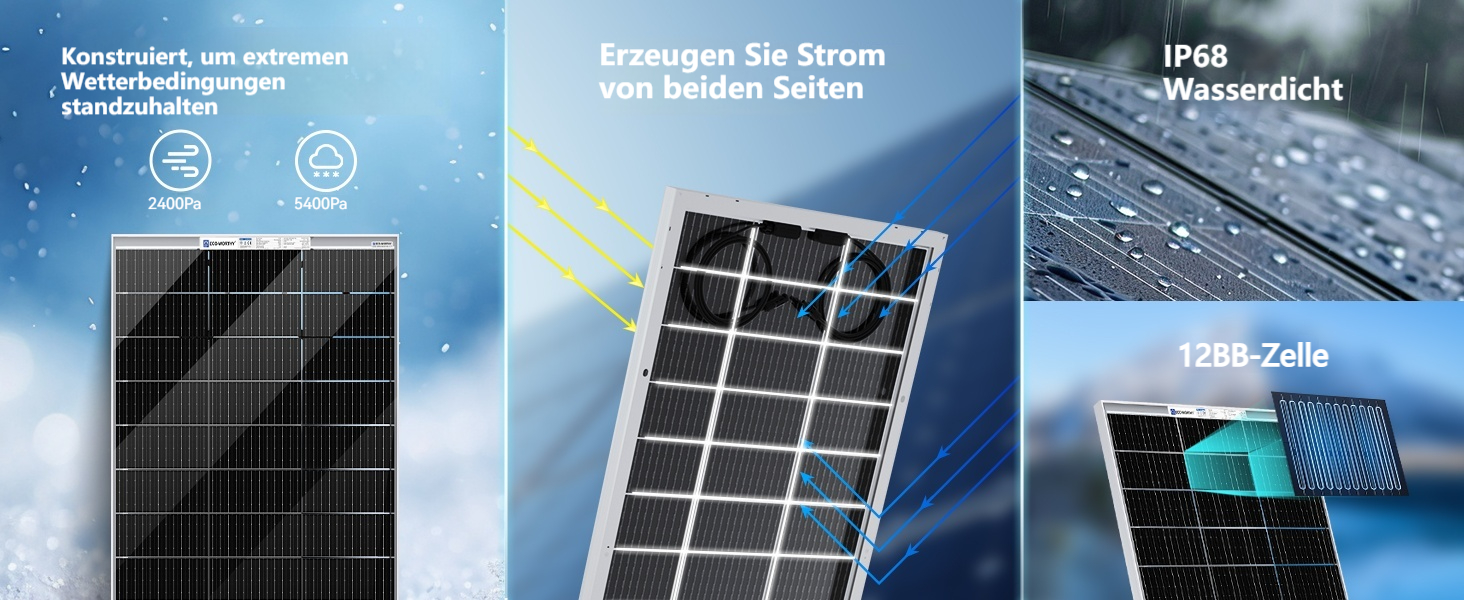

Die Solarmodule der ECO-WORTHY 195Wp sind hochwertige Module mit monokristallinen Zellen, Hervorragendes Schwachlichtverhalten an bewölkten Tagen, morgens und abends. Solarmodul besteht aus hagelfestem, gehärtetes Solarglas mit einer wetterfesten Beschichtung, der Rahmen aus eloxierten Aluminium und die Anschlüsse sind wetterbeständig - demnach also optimal geschützt gegen WInd und Wetter. 25 Jahren Leistungsgarantie.
ECO-WORTHY 6000 W Hybrid-Wechselrichter mit 120 A MPPT Solarladeregler + 48 V DC auf 230 V AC reiner Sinus-Solar-Wechselrichter für netzunabhängiges Photovoltaik-Komplettsystem.
Hochleistungs LiFePO4 48V 50AH Lithium-Eisenphosphat-Batterie hat die doppelte Leistung, das halbe Gewicht und hält 8-mal länger als eine Blei-Säure-Batterie - und hat zudem eine deutlich höhere Lebenserwartung. Die Lithium Batterie kann ca. 4000 Zyklen bei einer 80% igen Entladungstiefe fahren.

Lieferumfang
20x Bifaziale 195Wp 12V Solarmodul
1x 48V 6000W Hybrid Wechselrichter
2x 5m PV-Solarkabel 4mm² mit MC4-MC4
20x Z-Montagehalterung
1x Solar Y-Stecker
3x 16mm² 35cm / M8 ÖsenBatterie Verbindungskabel
1x 5m PV-Solarkabel 6mm² mit MC4-MC4

15,6kWh LiFePO4 (optional)
mit
4x 50Ah 48V Lithium LifePo4 Akku

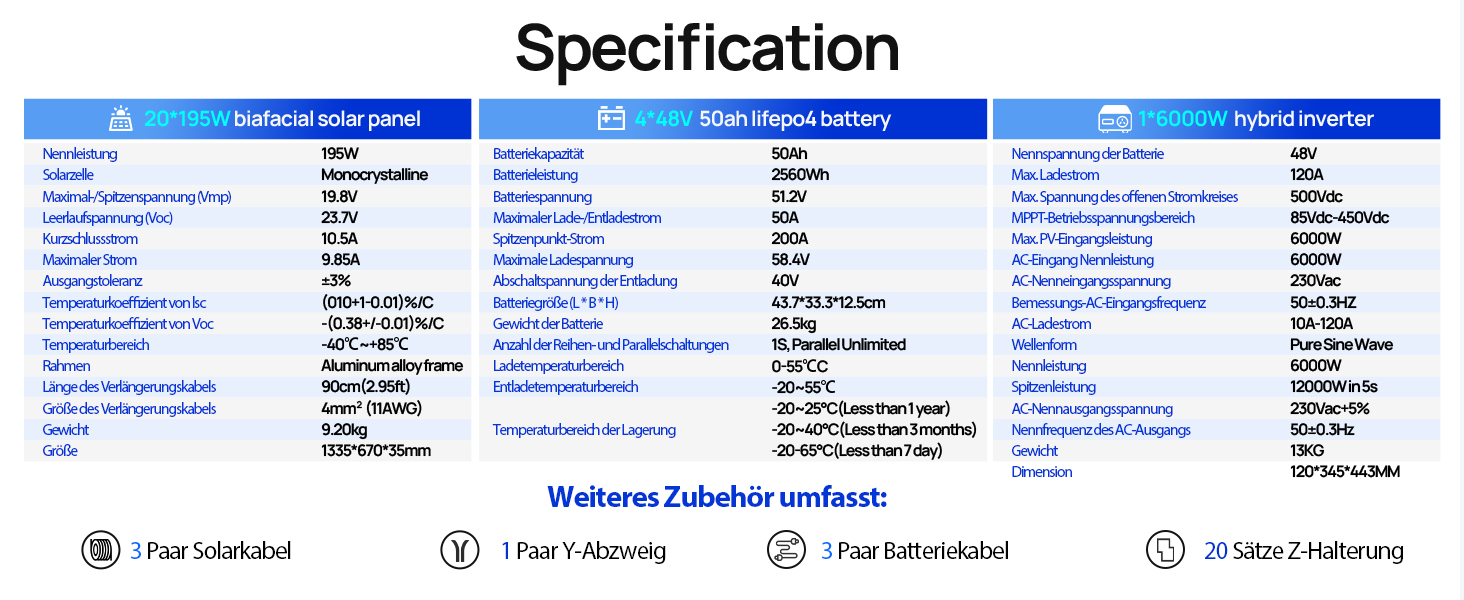

Bifaziale 195Wp 12V Solarmodul

Nennleistung: 195Wp	Solarzelle: Monokristallin
Maximale/Spitzenspannung (Vmp): 19,8V	Leerlaufspannung (Voc): 23,7V
Kurzschlussstrom: 10,5A	Maximalstrom: 9,85A
Ausgangstoleranz: ±3%	Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃
Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃	Temperaturbereich: －40℃～ +85℃
Rahmen: Rahmen aus Aluminiumlegierung	Länge des Verlängerungskabels: 90cm
Größe des Verlängerungskabels: 4 mm² (11 AWG)/MC4-Anschluss	Größe: 1335 x 670 x 35 mm
Gewicht: 9,29 kg

48V 6000W Hybrid Wechselrichter

Batterie-Nennspannung:48v	Maximal. Aufladestrom:120A
Max. Spannung im Leerlauf: 500Vdc	MPPT-Betriebsspannungsbereich: 85Vdc-450Vdc
Max. PV-Eingangsleistung: 6000W	AC-Eingang Nennleistung: 6000W
Nenn-AC-Eingangsspannung:230Vac	Nenn-AC-Eingangsfrequenz:50±0.3HZ
AC-Ladestrom: 10A-120A	Wellenform: Reine Sinuswelle
Nennleistung: 6000W	BSpitzenleistung: 12000W in 5s
Rated Ac Output Voltage: 230Vac+5%	Rated AC Output Frequency:50±0.3Hz
Gewicht:13KG	Dimension:120*345*443MM

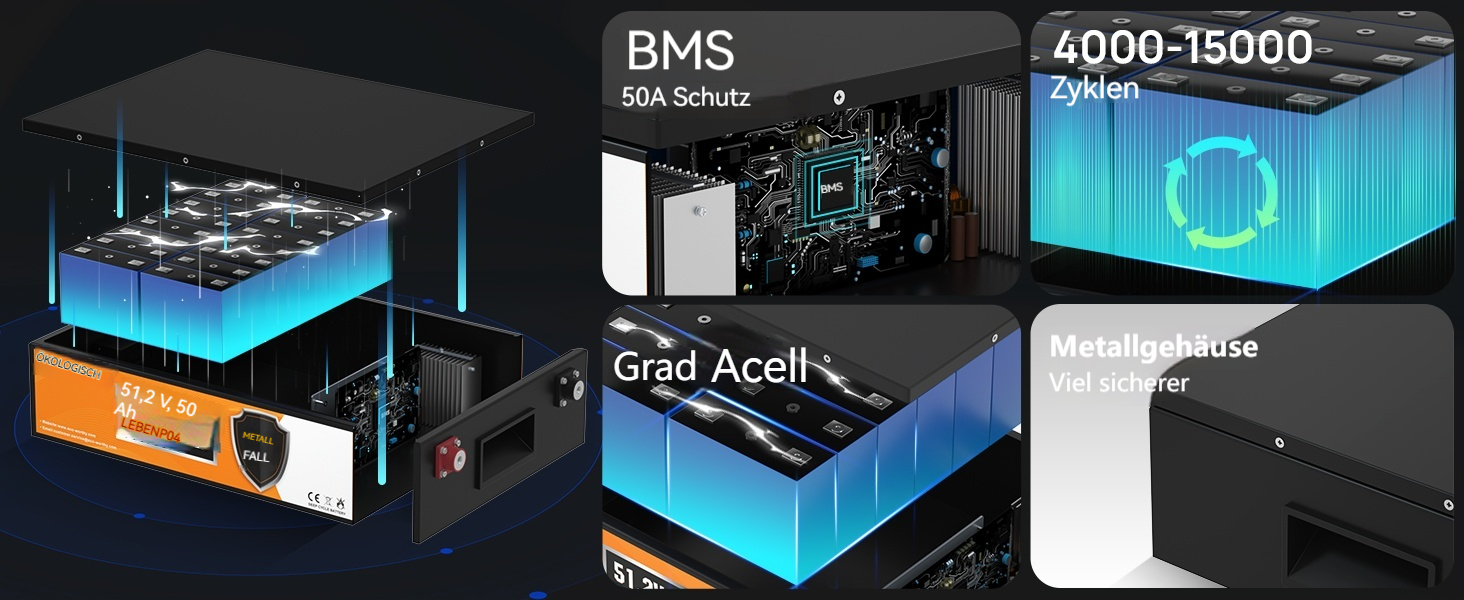

48v 50Ah LiFePO4 Batterien

Batteriekapazität: 50Ah	Batterieleistung: 2560Wh
Batteriespannung: 51,2V	Maximaler Lade-/Entladestrom: 50A
Spannungsbereich: 40~58V	Maximale Ladespannung: 58,4V
Ladetemperaturbereich: 0-55℃	Entladetemperaturbereich: ﹣20－55℃
Schraubengröße: M8	Batteriegröße: 17.21*13.11*4.92inch (43.72*33.3*12.5cm)
Batteriegewicht: 58.42lb/26.5kg

5m Solarkabel 4mm² mit MC4-MC4

Kabeltyp: Anschluss von Solarmodulen an Laderegler	Nennspannung: 600/1000V
Länge: 5 Meter (16 Fuß)	Leiter: Verzinnter Kupferdraht
AWG: 12	Normale Querschnittsfläche des Leiters (mm2): 4
Wasserdicht: IP 65-Schutz	Temperatur: -40 °F bis +185 °F
Anschluss: MC4

Z-Halterung

4 Stück Solarmodulhalterungen in Z-Form

8 Stück Edelstahlmuttern und Kopfschrauben

Solar Y-Stecker

Kompatibel mit MC4 Solarstecker.

Einfache Installation für 2 parallel geschaltete Solarmodule.
