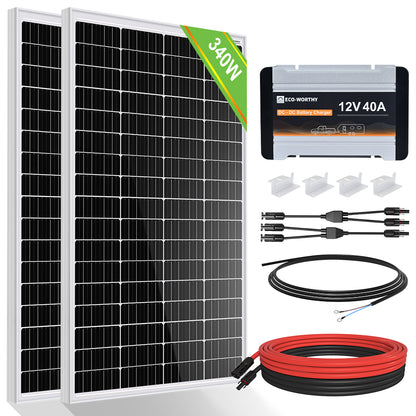

Lieferumfang
2x 170 Watt Monokristallin Solarmodul
1x 40A MPPT DC Zu DC Batterieladegerät
1x 5m PV-Solarkabel 4mm² mit MC4
2x Z-Montagehalterung
1x Y MC4-Anschluss
1x 1,5m Fachkabel
2kW Wechselrichter+2,4kWh LiFePO4 (optional)
mit
1x 2000W 12V-220V Reiner Sinus-Wechselrichter
2x 100Ah 12V Lithium LifePo4 Akku

170Wp Solarmodul Monokristallin

Nennleistung: 170Wp	Solarzelle: Monokristallin
Maximale/Spitzenspannung (Vmp): 19,0V	Leerlaufspannung (Voc): 23,0V
Kurzschlussstrom: 9,39A	Maximalstrom: 8,95A
Ausgangstoleranz: ±3%	Gemäßigter Koeffizient von Isc: (010+/-0,01)%/℃
Gemäßigter Voc-Koeffizient: -(0,38 +/- 0,01) %/℃	Temperaturbereich: －40℃～ +85℃
Rahmen: Rahmen aus Aluminiumlegierung	Länge des Verlängerungskabels: 90cm
Größe des Verlängerungskabels: 4 mm² (11 AWG)/MC4-Anschluss	Größe: 1355 x 690 x 35 mm
Gewicht: 8,9 kg

40A MPPT DC Zu DC Batterieladegerät

Typ: Multi -Bühne	Eingabe: DC-Batterie: 12,4-16,0V; Sonneneingang: 16-25V
Ausgangs- / Ladespannung: 14,4-15,4V	Ausgangsstrom: Gleichstromausgang: 40A; Sonnenausgabe: 40A
Mindeststartspannung: 2,0V für die aufgeladene Batterie	Weicher Start: Ja
Softladungsstrom: 40A

2000W 12V Solarwechselrichter

Kontinuierliche Ausgangsleistung (W): 2000W + 18W USB	Überspannungskapazität (Spitzenleistung): 4000W
Nenneingang DC (V,A): 12V Batterie, 200A	Eingangsspannungsbereich: 10,5–16VDC ± 0,3V
Nennfrequenz (Hz): 50Hz±1	Nennausgang AC (V, A): 230VAC ±10 %, 8,7A
Nennleistung USB (V,A): 2*QC3.0 USB-Anschlüsse (5V/3A, 9V/2A, 18W max.)	Leerlaufstrom: <1,2A
Optimaler Wirkungsgrad: 85% min	Sicherung (A): 40A*6
Sicherungstyp: Interne Klinge	Ausgangswellenform: Reine Sinuswelle
Berührungstemperatur: 65℃ (149℉)max	Betriebstemperatur: -20℃~40℃ (4℉~104℉)
Luftfeuchtigkeit bei Betrieb/Lagerung RH: 5~95%	Kühlsystem: Thermolüfter
Klirrfaktor: <4,5 %	Abmessungen (L*B*H): 16,8*9,8*4,1 Zoll
Zusammengebautes Gewicht: 10,89 lbs

100Ah LiFePO4 Batterien

Batteriekapazität: 100Ah	Batterieleistung: 1280Wh
Batteriespannung: 12,8V	Maximaler Lade-/Entladestrom: 100A/100A
Ladetemperaturbereich: 0-55℃	Entladetemperaturbereich: ﹣20－55℃
Maximale Ladespannung: 14,5V	Entladeschlussspannung: 10V
Schraubengröße: M8	Batteriegröße: 260 * 168 * 214 mm (10.24*6.61*8.43inch)
Batteriegewicht: 10.5 kg(23.15lbs)

5m Solarkabel 4mm² mit MC4

Kabeltyp: Anschluss von Solarmodulen an Laderegler	Nennspannung: 600/1000V
Länge: 5 Meter (16 Fuß)	Leiter: Verzinnter Kupferdraht
AWG: 12	Normale Querschnittsfläche des Leiters (mm2): 4
Wasserdicht: IP 65-Schutz	Temperatur: -40 °F bis +185 °F
Anschluss: MC4

Z-Halterung

4 Stück Solarmodulhalterungen in Z-Form

8 Stück Edelstahlmuttern und Kopfschrauben

Solar Y-Stecker

Kompatibel mit MC4 Solarstecker.

Einfache Installation für 2 parallel geschaltete Solarmodule.
